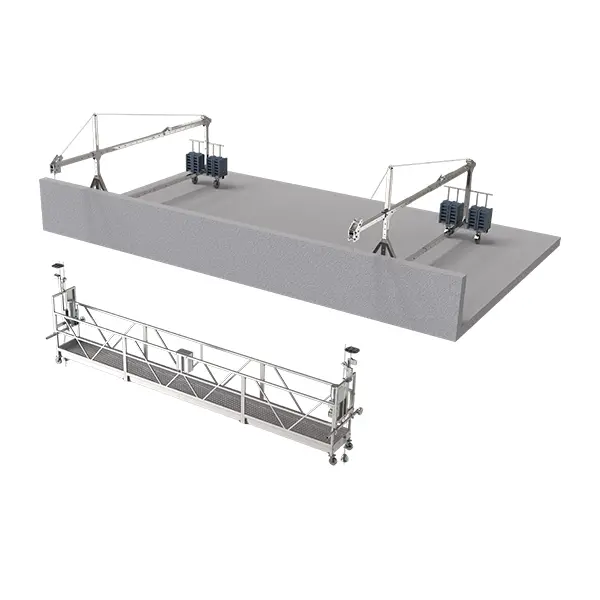

3S LIFT XP Series Suspension Platform

The XP Series Suspension Platform is composed of main components such as suspension device, platform, traction hoist, SafeLock, electric control system, wire rope, etc.; The suspension device is fixed on the roof, and the platform relies on its own hoist to climb along the steel wire rope, which can run vertically up and down, and freely hover at any height for work. The entire system is self-contained and does not require any external assistance, making it flexible and convenient. The modular main structure and standard sections made of aluminum alloy material are spliced into a platform of the required length.

    Video

    product description

    Traction Hoist and Overload Detection Device

    SafeLock

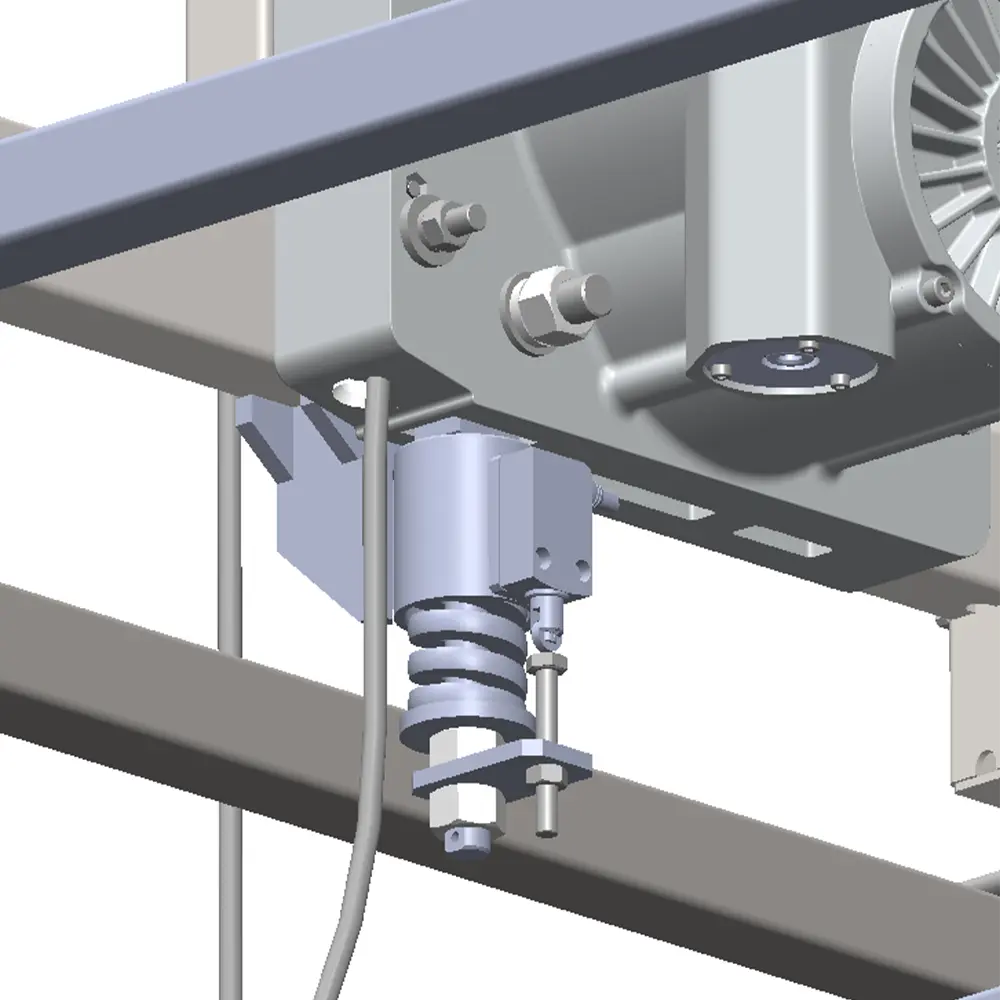

    Overload Detection Device

    Overload Detection Device

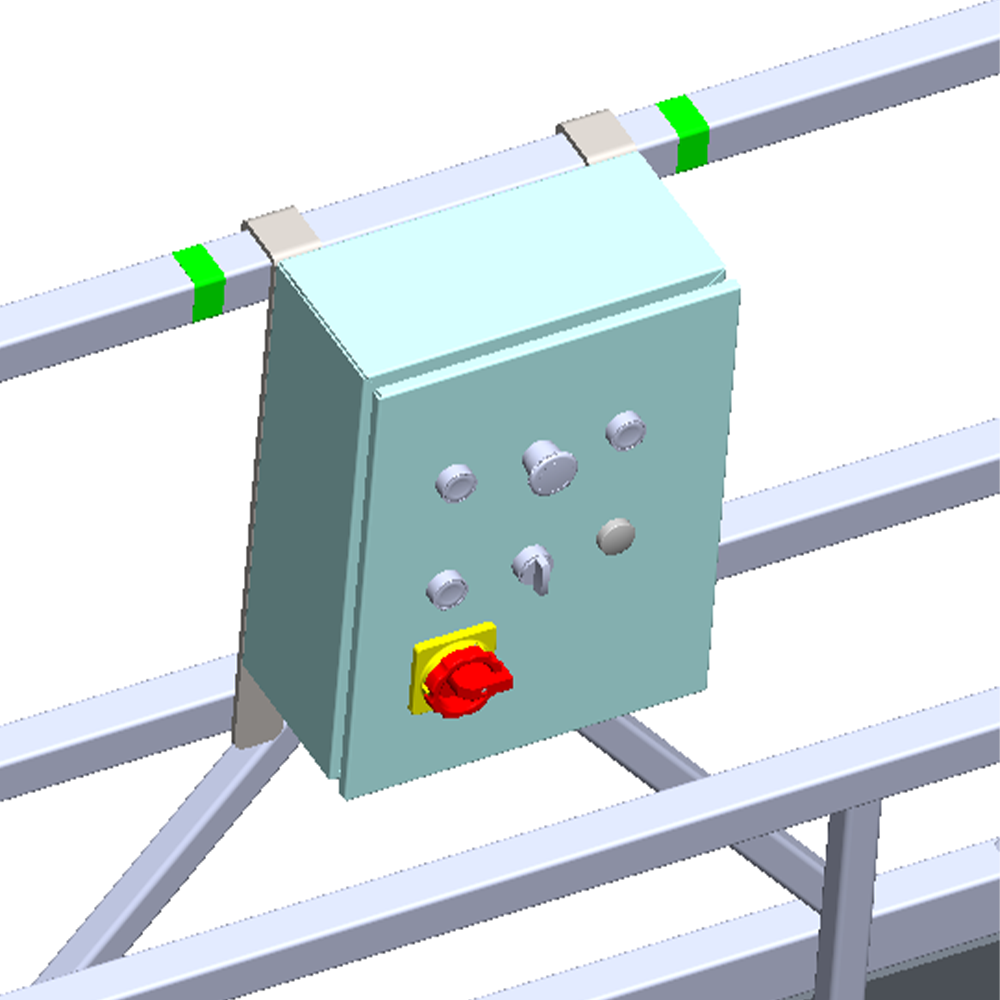

    Electrical Control System

    Electrical Control System

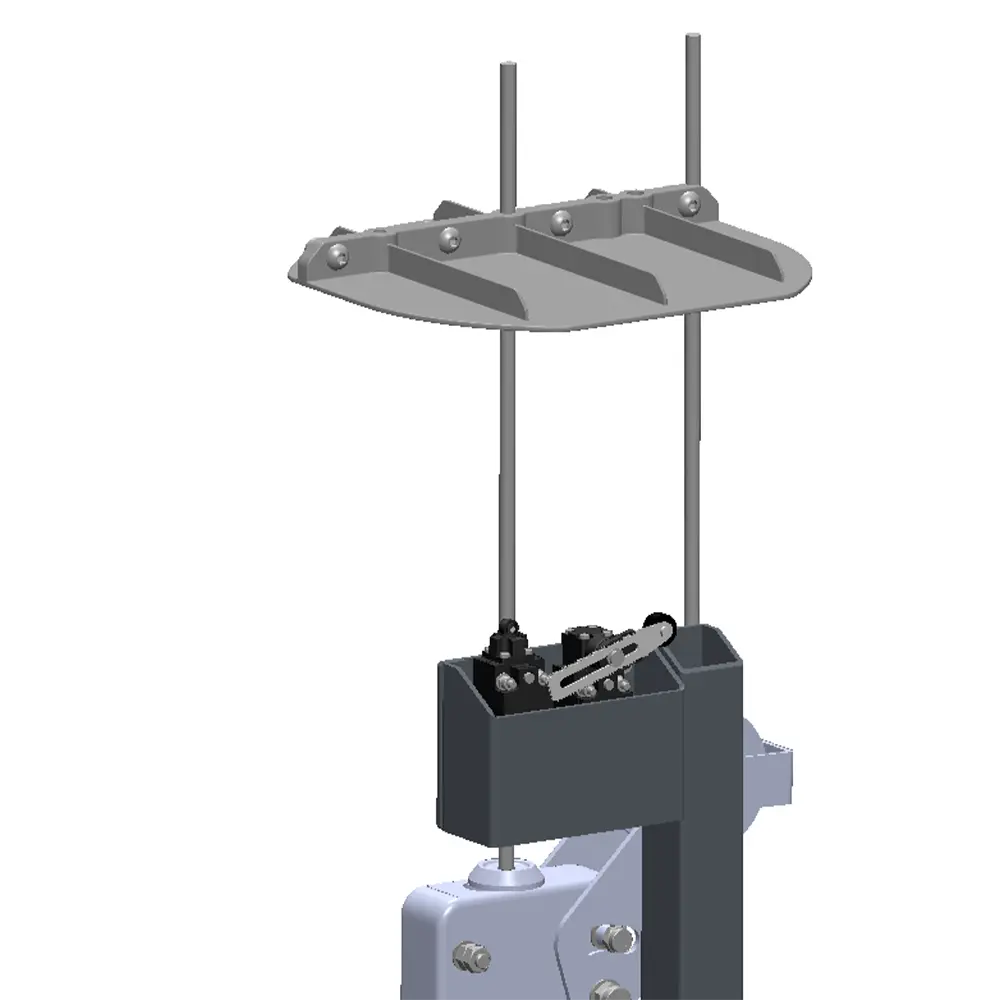

    Upper Limit Switch

    Upper Limit Switch

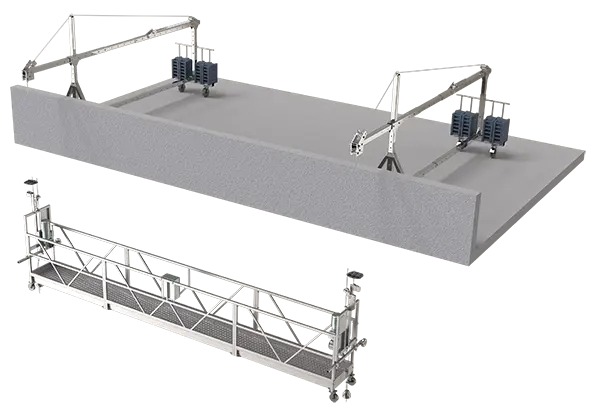

    XP SERIES SUSPENSION PLATFORM

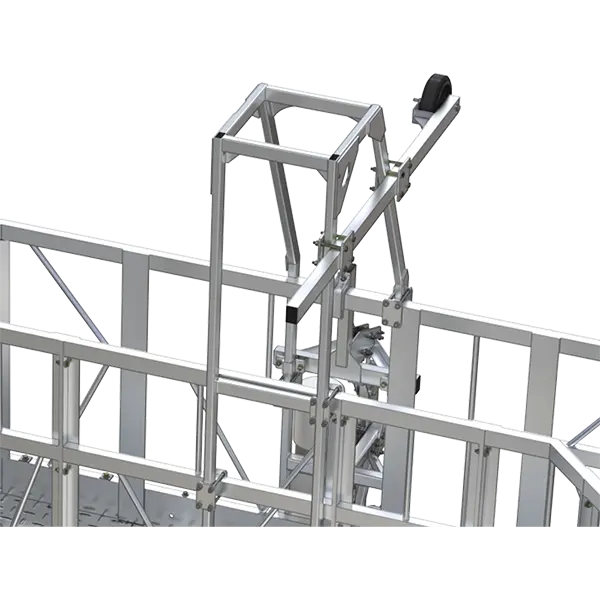

    Hanger

    Hanger

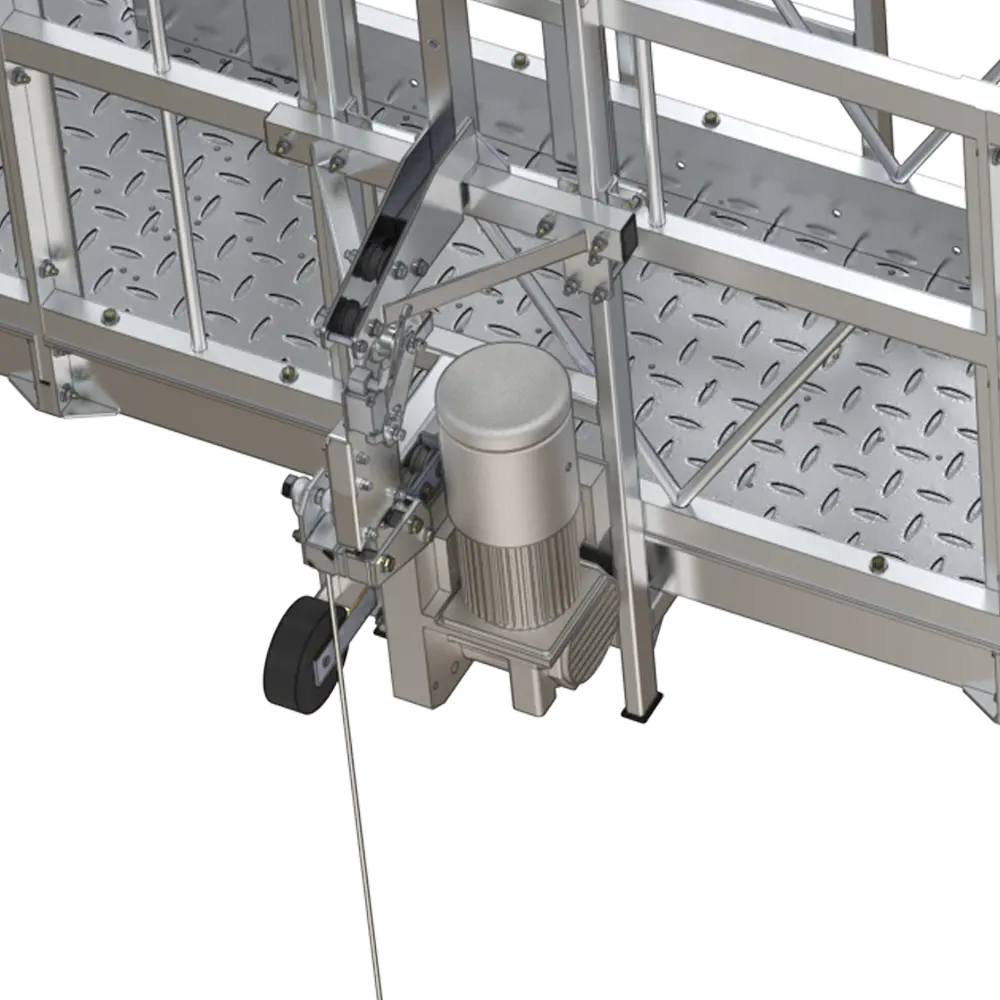

    Traction Hoist and Overload Detection Device

    Traction Hoist

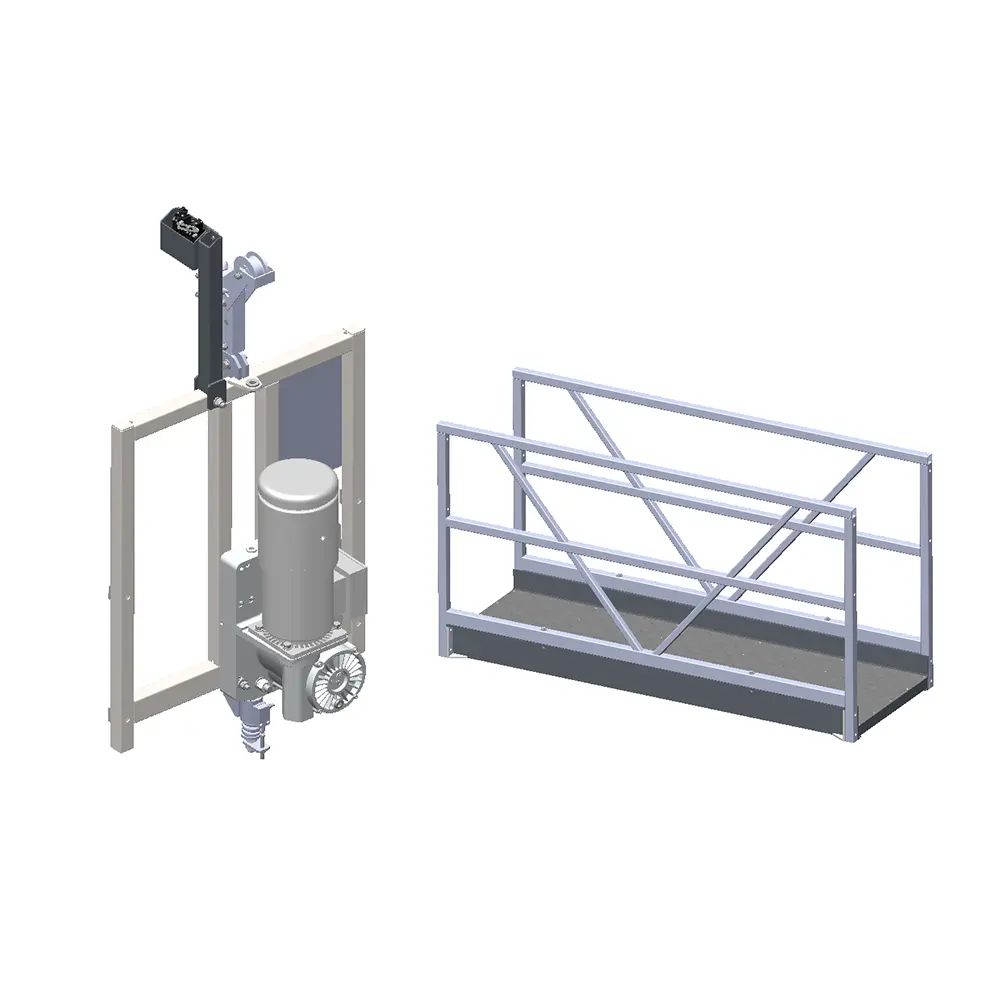

    Suspension Device Platform

    Suspension Device Platform

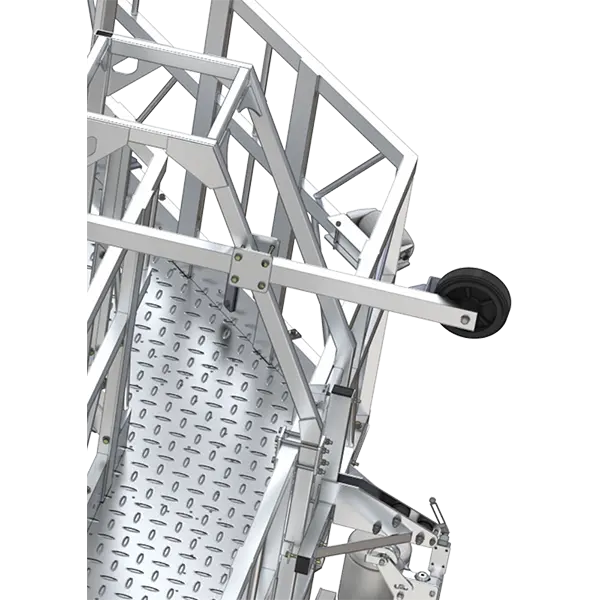

    Wall Roller Assembly

    Wall Roller Assembly

    Key Features

    With all aluminum standard sections of 1, 2, and 3 meters, it is suitable for various sizes.

    With all aluminum standard sections of 1, 2, and 3 meters, it is suitable for various sizes.

    The 3S XP series suspension platform has core technologies such as 3S self-developed safety protection system, independent control system, and lifting drive system. It has applied for domestic/international patent protection and obtained CE certification.

    底部导航-优惠券

    Limit plate

     Set the upper limit, and adjust the height and position.

    监控

    (Customizable) Camera or helmet

    Real-time monitoring of safety hazards on the platform to protect personnel safety.

    隐患管理

    Traction hoist and overload detection device

    Drive the platform to descend and ascend the towers, preventing it from overload operation.

    工业组件-开关

    Upper limit switch

    Protects the platform from exceeding the safe distance.

    安全锁

    SafeLock

    Avoid the platform over speed descent.

    IDC_RPP

    Electrical control system

    Control the operation of the platform, and its alarms sound in case of an emergency.

    滚轮-copy-copy

    Wall roller assembly

    Telescopic arm can be adjusted to maintain the distance between the platform and the inner wall of the boiler.

    Specifications

    Model/Series

    XP-700-2E

    Rated load

    280Kg

    Capacity

    2

    Self-weight

    260 kg

    Dimensions

    2 m × 0.7 m × 1.065 m

    Rated voltage

    230 V / 60 Hz, 400 V / 50 Hz

    Model/Series

    XP-700-3E

    Rated load

    420 kg

    Capacity

    4

    Self-weight

    280 kg

    Dimensions

    3 m × 0.7 m × 1.065 m

    Rated voltage

    230V / 60Hz, 400V / 50Hz

    Model/Series

    XP-700-4E

    Rated load

    560 kg

    Capacity

    5

    Self-weight

    310 kg

    Dimensions

    4 m × 0.7 m × 1.065 m

    Rated voltage

    230V / 60Hz, 400V / 50Hz
