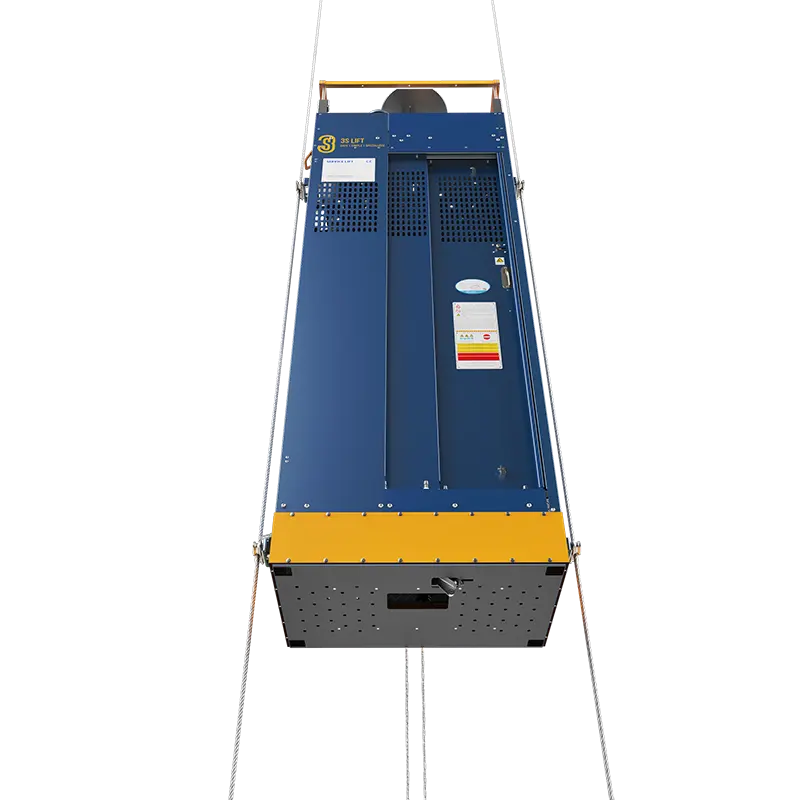

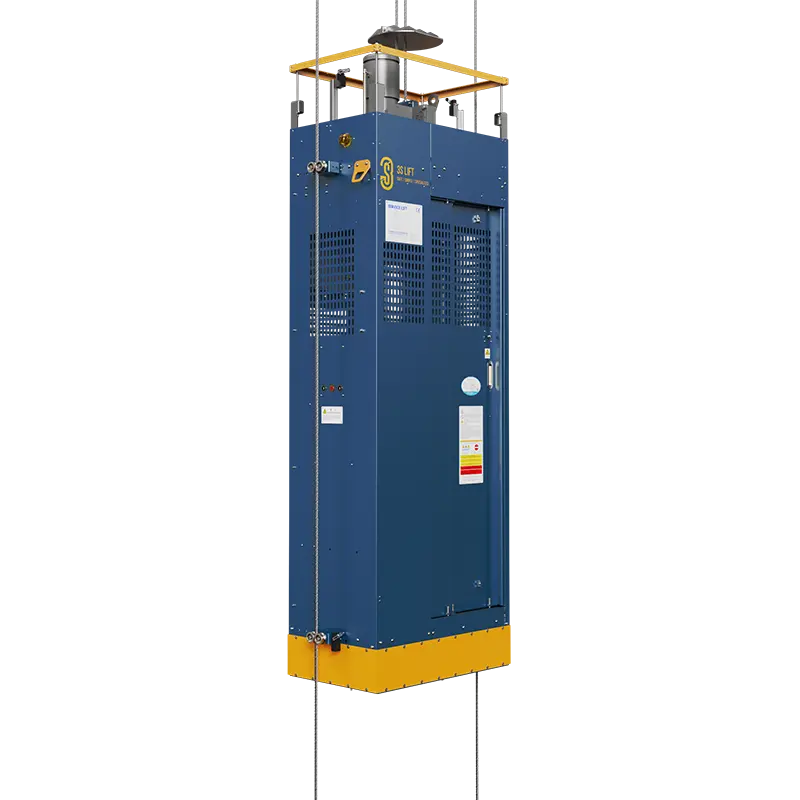

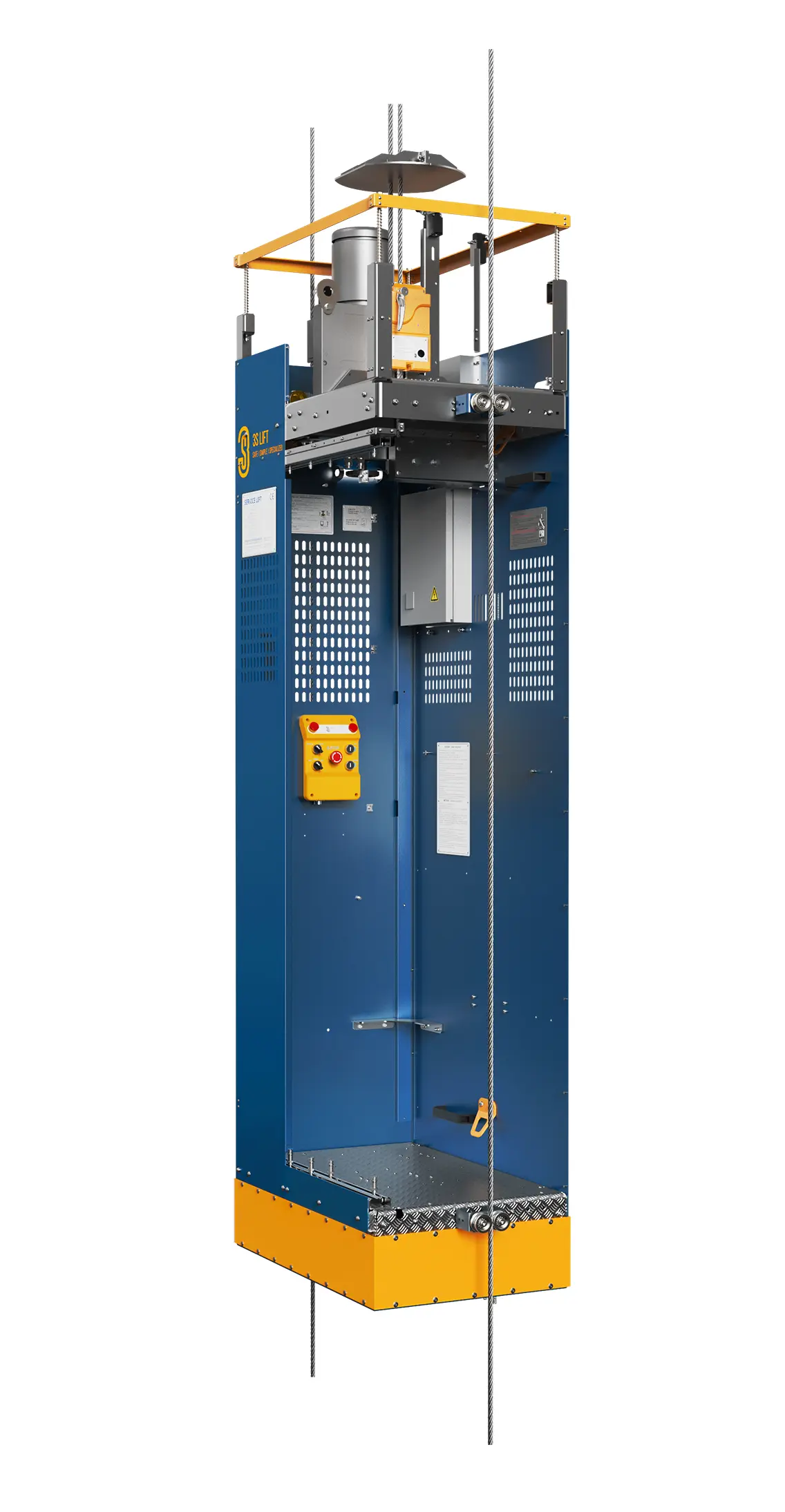

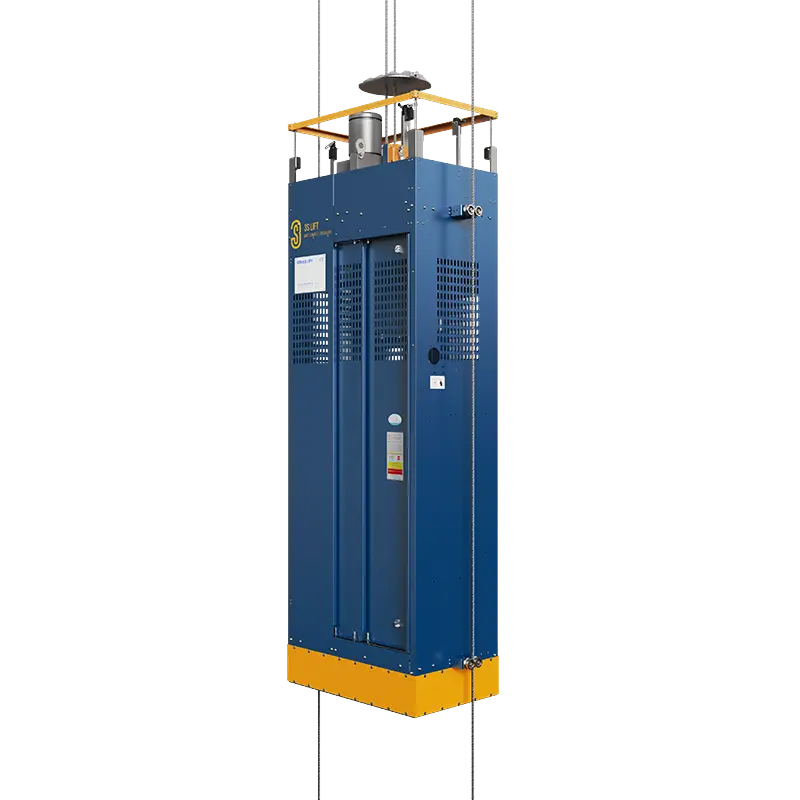

3S LIFT Wire Rope-Guided Service Lift
Video
product description

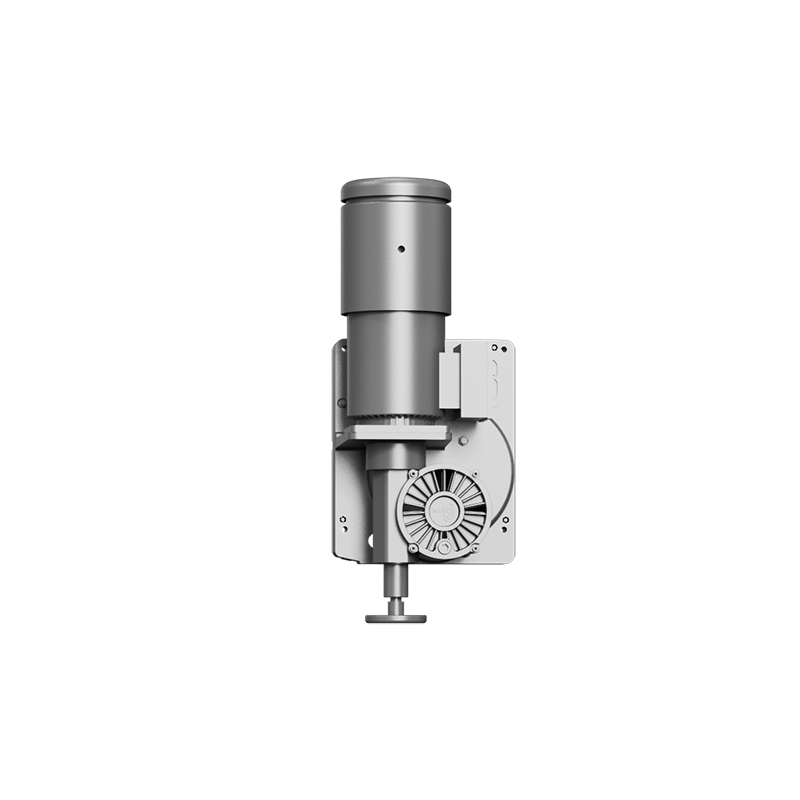

Traction Hoist
The lifts ascend or descend the towers through the friction between the reducer and the wire rope.

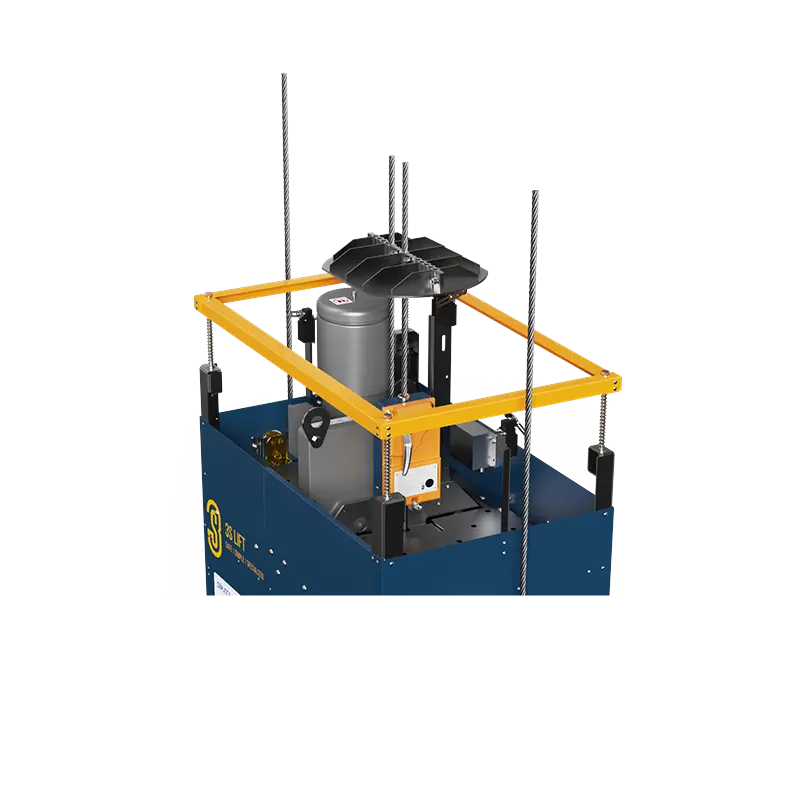

Top Sensing Panel
When the lift comes in contact with an obstacle, the panel is compressed and a sensor is triggered.

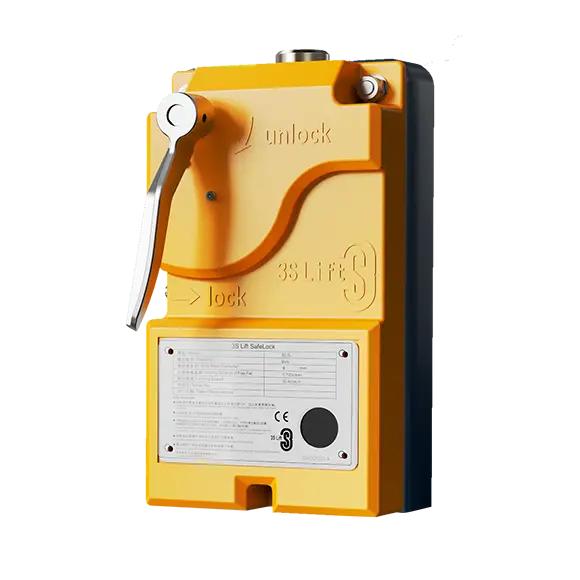

Safe Lock
The safe lock stops the lift in the event of a speed loss.

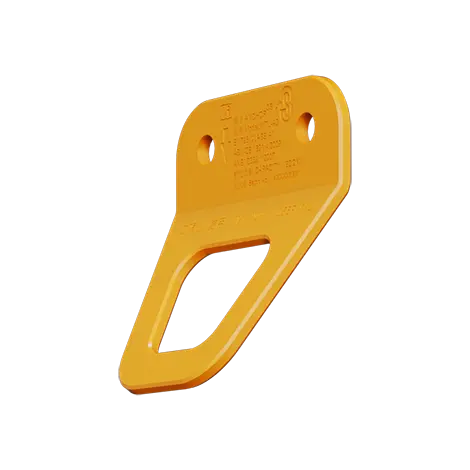

Anchor Point
Fall protection for operators working at height. Anchor points are to be used in conjunction with a full-body harness, and each anchor point is for use by one person only.

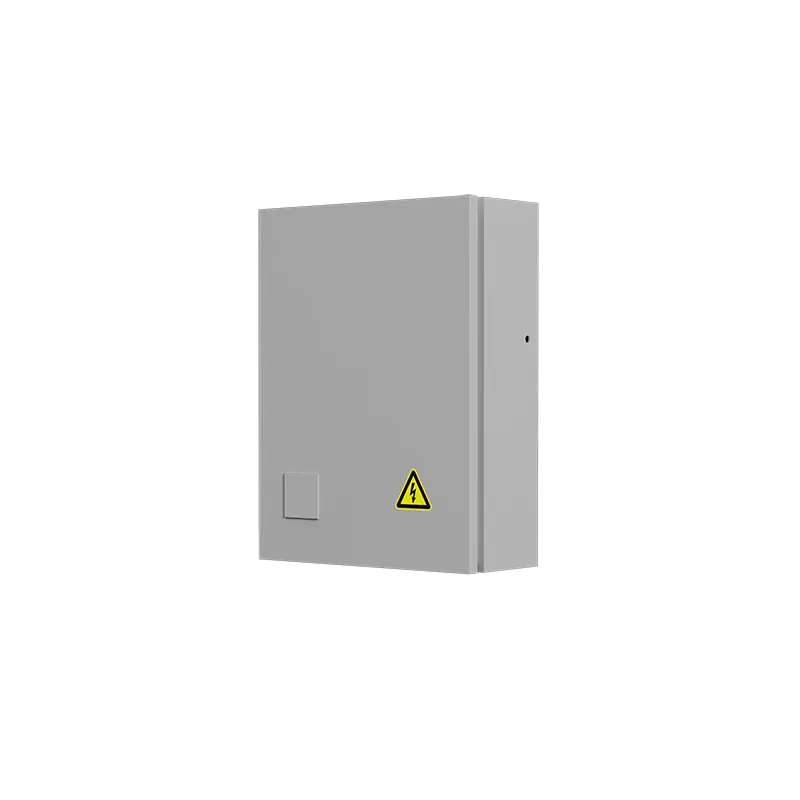

Control Cabinet
As the control system of the lift, it is located inside the car.

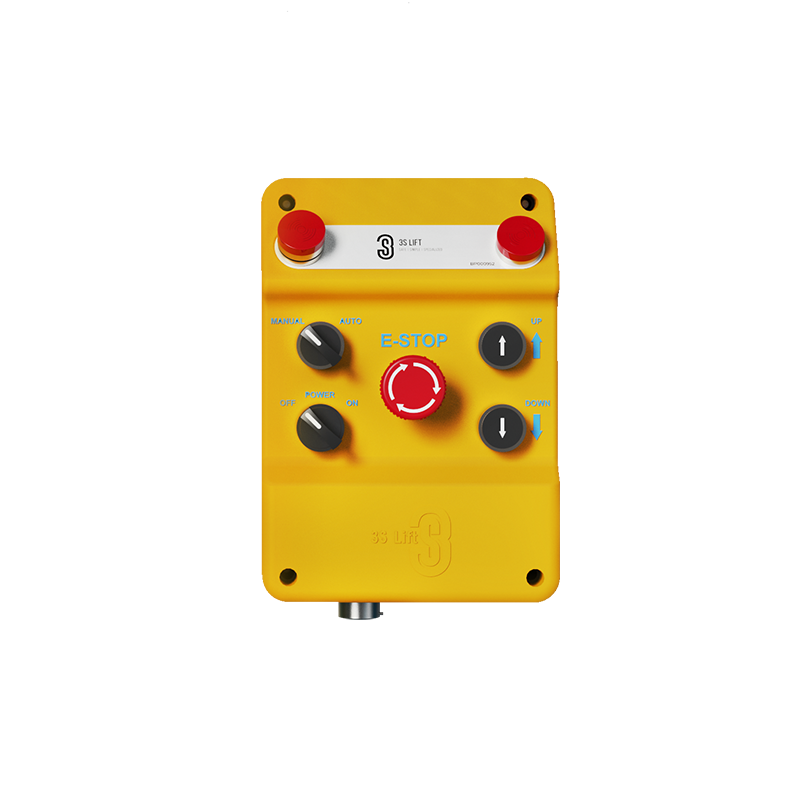

Operation Box
As the lift operating system, it can be applied both inside and outside the car.
Guide Wire Rope
The Service Lift travels up and down along the wire rope.

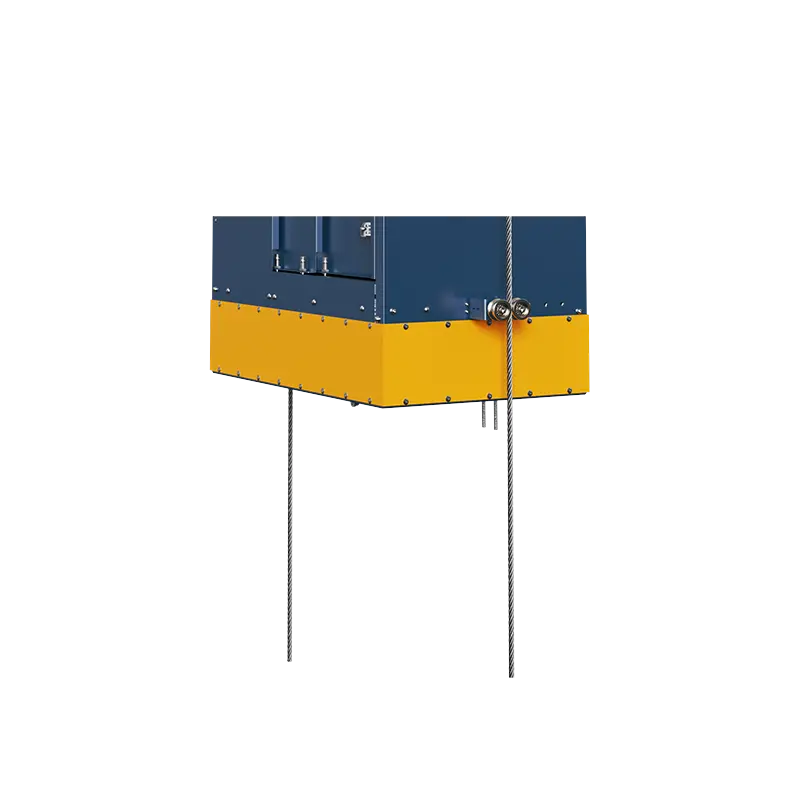

Bottom Sensing Panel
When the lift comes in contact with an obstacle, the panel is compressed and a sensor is triggered.
Twelve Levels of Safety and Security
Unique smart information prompting function – More convenient.
Fully independent lifting and safety systems – Safer and more reliable.
Omni-directonal sensing limit device – Full range limit protection.
Mechanical overload protection – Safety and reliability.
60,000 cycle fatigue test for traction hoist – Professional experiments.
Overspeed protection – Safety guarantee for speed loss.
High-strength load bearing structure – Solid and durable.
Manual descent – Sensitive and reliable.
Back-up door – Interlock switches in case of emergencies.
Mechanical interlock – Fall protection.
Electromagnetic door lock – Emergency unlocking for safety and efficiency.
Platform indicator – Self-awareness of parking level location.
Specifications
Mode |
WM240A8-LR |
Rated load |
240 kg |
Capacity |
2 persons |
Speed |
18 m/min, 21 m/min |
Dimensions |
960 mm × 600 mm × 2980 mm |
Rated voltage |
400 / 690 V, 50 / 60 Hz, 3P+PE |
Operating temperature |
-30 ℃ to +60 ℃ |
Mode |
WM300A8-LR |
Rated load |
300 kg |
Capacity |
2 persons |
Speed |
18 m/min, 21 m/min |
Dimensions |
960 mm × 600 mm × 2980 mm |
Rated voltage |
400 / 690 V, 50 / 60 Hz, 3P+PE |
Operating temperature |
-30 ℃ to +60 ℃ |
