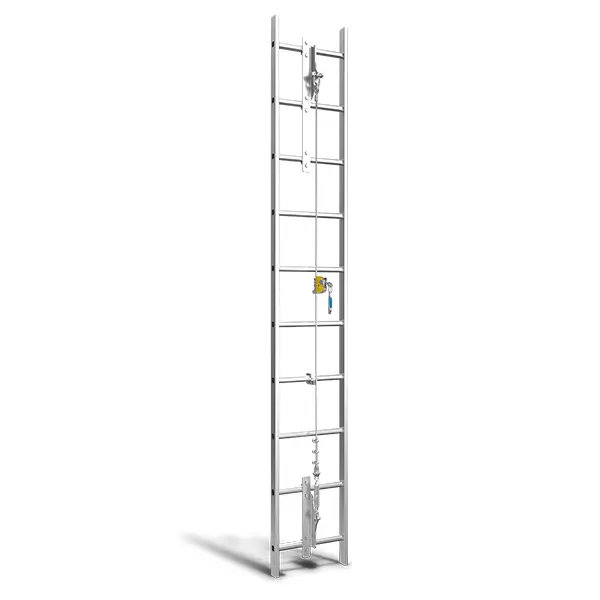

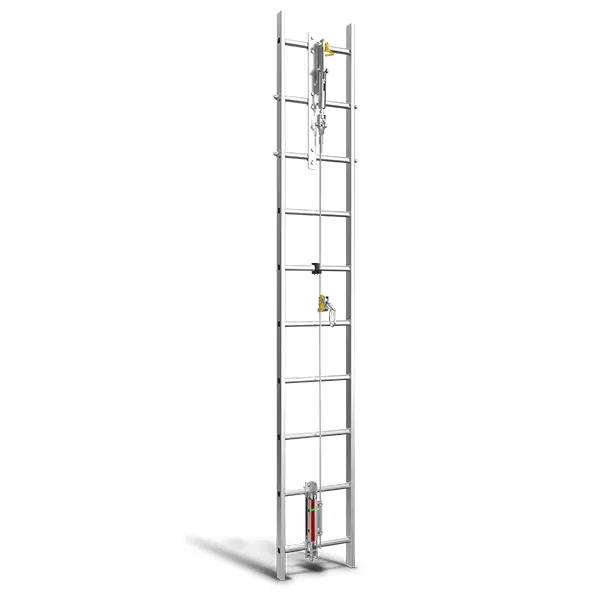

Wire Rope Fall Protection System
Video
product description
Optional Shock Absorber
The shock absorber, which is installed at the top mounting bracket, plays a crucial role in enhancing both safety and comfort. This device is engineered to effectively absorb and dissipate sudden impact forces that may occur during a fall event. By doing so, it reduces the severity of the jolt experienced by the user, significantly enhancing safety. Additionally, it mitigates the harshness of the impact, thereby improving comfort and minimizing the potential for injury - related discomfort. Its strategic placement at the top mounting bracket ensures optimal functionality within the fall protection system.

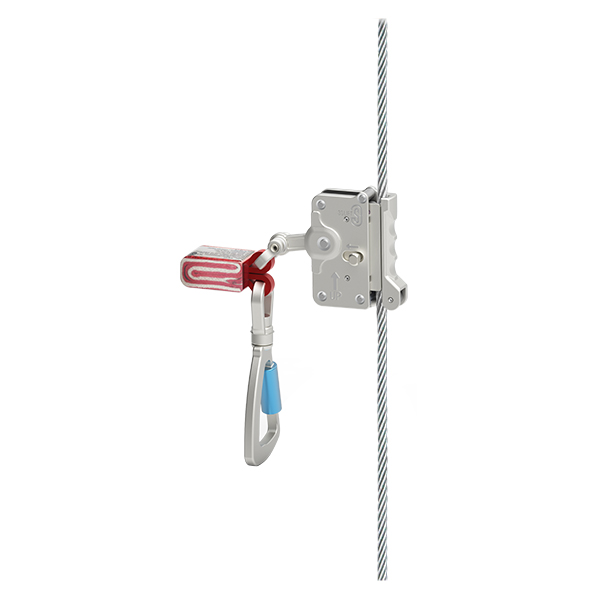

Fall Arrester
The Fall Arrester offers great flexibility as it can be easily attached to and removed from any point along the wire rope. This allows for quick adjustments based on the specific requirements of the work at hand, whether the technician needs to change positions frequently or adapt to different ladder - climbing scenarios. Such versatility ensures seamless integration of the fall protection device into various work operations, enhancing both convenience and safety in elevated work environments.
Top Mounting Bracket
The wire rope is affixed to the top of the ladder by means of a robust and long - lasting mounting bracket. This bracket, crafted from high - quality materials, is designed to endure continuous stress and environmental factors, ensuring a secure and stable connection between the wire rope and the ladder. Its durability not only guarantees the proper functioning of the fall protection system but also minimizes the need for frequent replacements, making it a reliable choice for long - term use in various working conditions.
Fixing Clamps
Wire rope clamps are employed to restrain the wire rope, preventing it from swinging. This is crucial as uncontrolled swinging can lead to abrasion on both the rope itself and the ladder. By firmly securing the rope in place, these clamps safeguard the integrity of the wire rope and the ladder, reducing wear and tear, and ultimately enhancing the overall safety and longevity of the fall protection setup. Their function is vital in maintaining a stable and secure environment for workers using ladders in elevated work scenarios.
Bottom Mounting Bracket with Optional Tensioner
The tensioning device located at the bottom mounting bracket enables effortless adjustment of the tensioning force. This feature allows users to fine - tune the tightness of the wire rope or other relevant components with ease. Whether it's to adapt to different environmental conditions, ensure optimal performance of the fall protection system, or accommodate changes in the ladder's position, the accessible and user - friendly design of this tensioning device simplifies the process of maintaining the appropriate tension, thereby enhancing the overall functionality and safety of the setup.
Fall Arrester
Key Features
Secure Locking System
The SL - 810S/SL - 820S Fall Arresters are equipped with an internal spring mechanism that guarantees a secure locking function. This mechanism is engineered to activate swiftly and firmly in the event of a fall, providing reliable protection for users working at height.
Stainless Steel Construction
These Fall Arresters are crafted from stainless steel, making them highly suitable for operation in adverse conditions. The stainless - steel material resists corrosion and degradation, ensuring the Fall Arresters maintain their integrity and functionality even in harsh environments.
Optional Energy Absorber
To mitigate the impact forces during a fall, an energy absorber can be optionally integrated with the Fall Arrester. This addition not only significantly enhances safety by reducing the peak forces exerted on the user but also contributes to a more comfortable experience, minimizing the potential for injury - related discomfort.
Anti - Inversion Design
The SL - 810S/SL - 820S Fall Arresters feature an intuitive anti - inversion design. This design allows for installation in only one correct direction, effectively eliminating the possibility of operator error due to incorrect installation. As a result, the overall reliability and safety of the fall protection system are greatly enhanced.
Compatibility with 8 - 10 mm Wire Ropes
The SL - 810S/SL - 820S Fall Arresters are designed to be compatible with wire ropes ranging from 8 mm to 10 mm in diameter. Additionally, they can be easily attached to or removed from any position along the rope, offering flexibility in usage and adaptability to different work scenarios.
Versatile Deployment: On - and Offshore
Our Fall Arresters, with their corrosion - and abrasion - resistant properties, are well - suited for deployment in demanding conditions, both onshore and offshore. Whether facing the corrosive effects of saltwater in offshore environments or the abrasive elements present in industrial onshore settings, these Fall Arresters maintain their performance and durability, providing reliable fall protection across diverse work environments.
Specifications
Model |
TF-80 |
TF-83 |
TF-10 |
Wire rope diameter |
8.0 mm |
8.3 mm |
9.5 mm |
Compatible fall arrester |
SL-810S, SL-820S |
||
Shock Absorber |
Optional |
||
Tensioner |
Optional |
||
Standard |
See compatible fall arrester |
||
Model |
SL-810S |
SL-820S |
Compatible wire rope |
TF-80 / TF-83 / TF-10 |
|
Rated load |
30 kg to 140 kg |
|
Max. static load |
15 kN |
16 kN |
Certification |
CE |
CE, ANSI, OSHA, ABNT/NBR, AS/NZS |
Standard |
EN 353-1；ANSI Z359.16；CSA Z259.2.5 |
EN 353-1；ANSI A14.3；OSHA 1910.140/29；OSHA 1926.502；AS/NZS 1891.3；ABNT/NBR 14627 |
