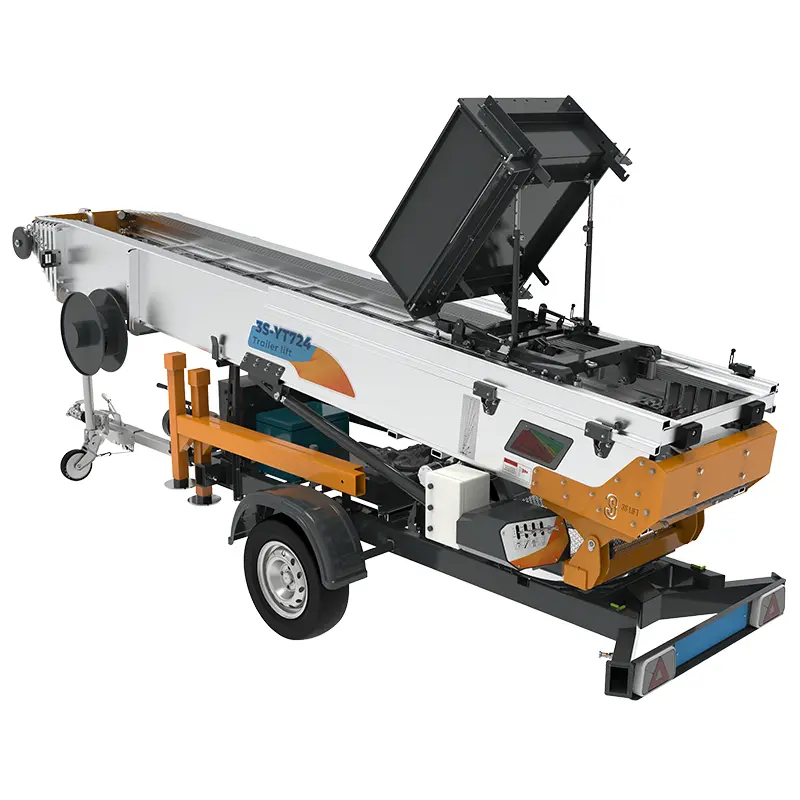

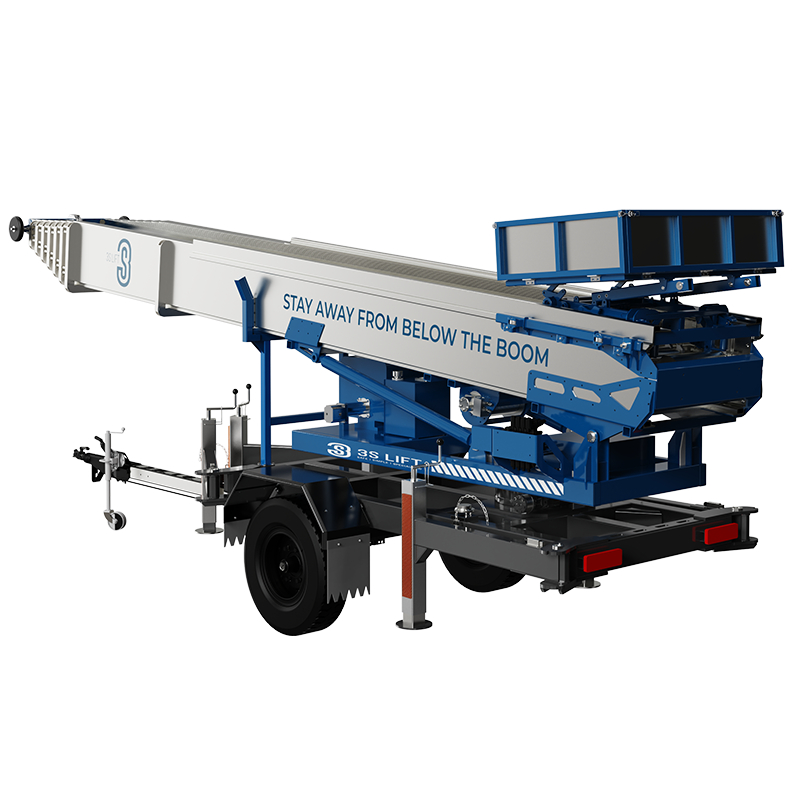

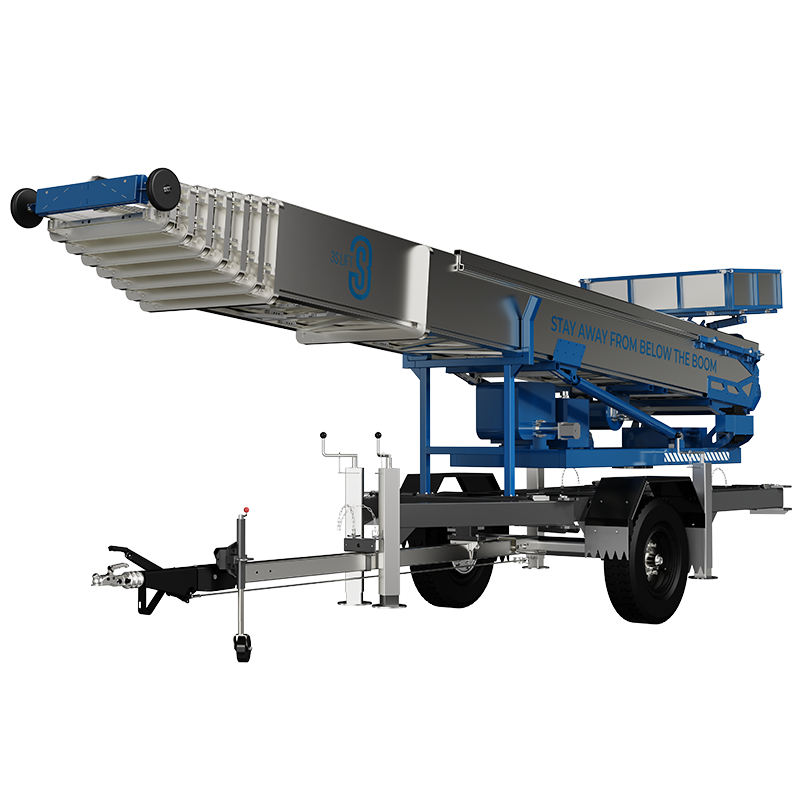

Trailer Lift Trailer Crane Furniture Lift
Video
product description

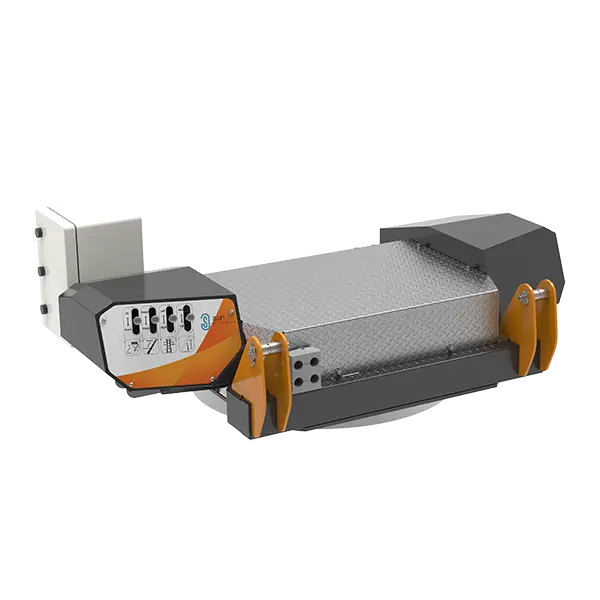

Turntable
Mounted onto the chassis via a slewing bearing, the turntable is capable of rotating the guide rail a full 360 degrees.

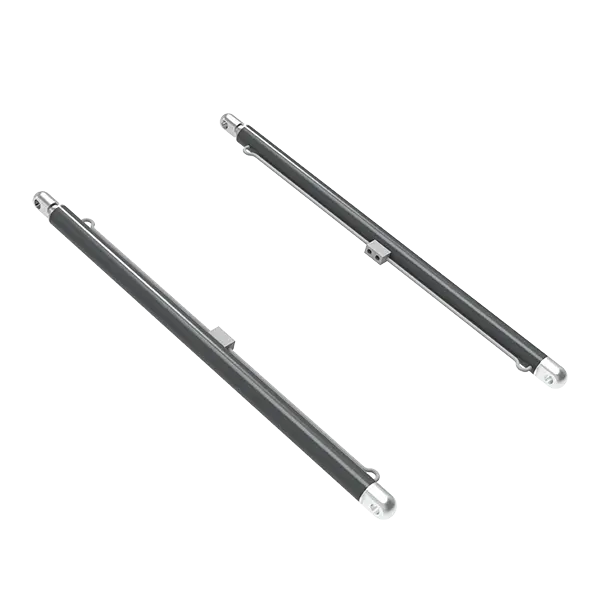

Luffing Cylinder
The cylinders, hinged between the guide rail and the turntable, can extend or retract, allowing the guide rail to adjust its pitch angle accordingly.

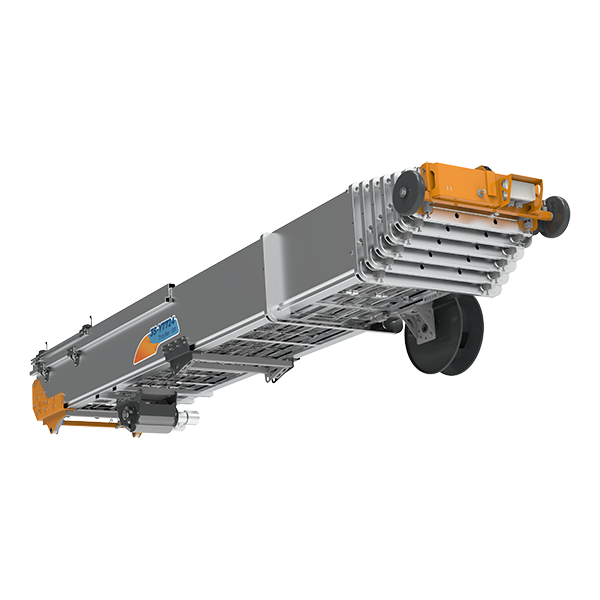

Guide Rail Members

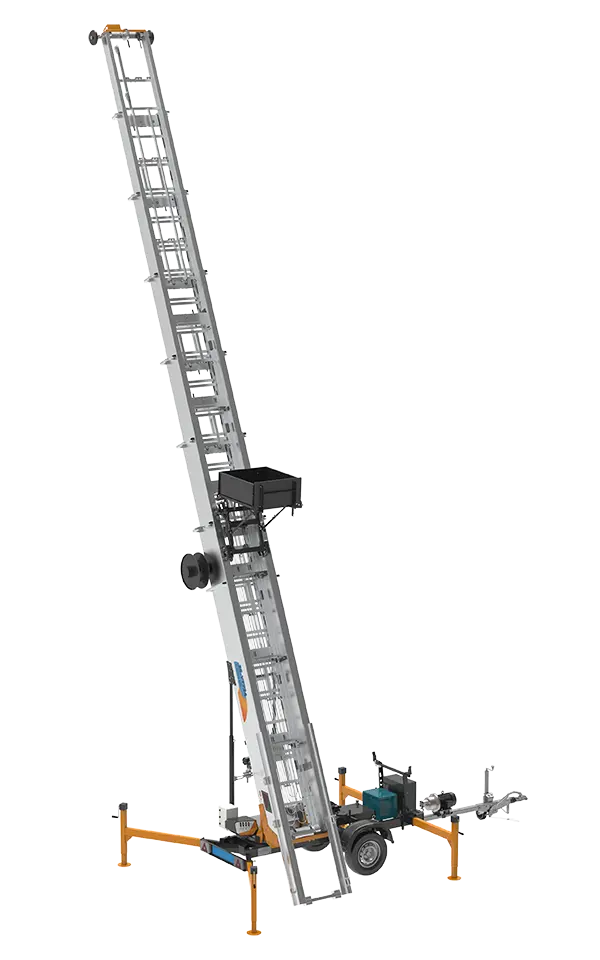

The eight-section aluminum alloy guide rail, designed in a layered and nested manner, extends as the steel wire ropes are pulled taut.

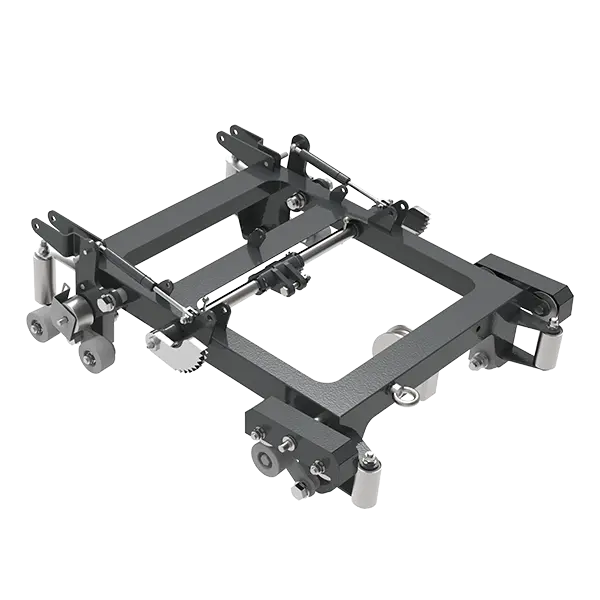

Carriage
Slides up and down along the guide rail under the suspension of a steel wire rope.

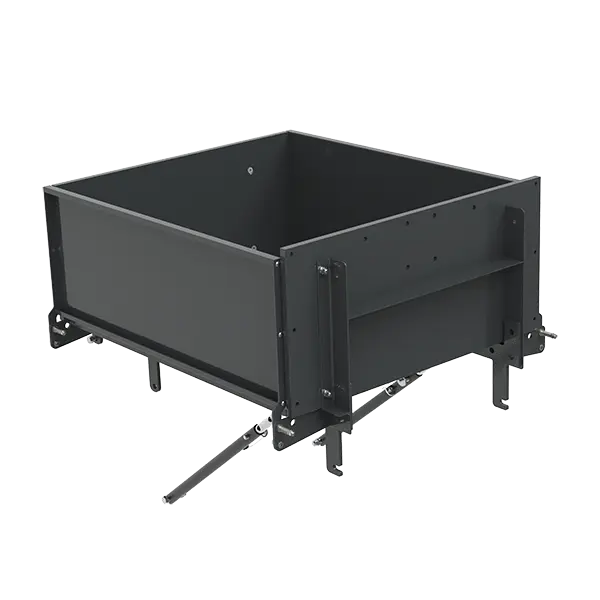

Load Carrying Device
Different forms of load carrying devices available to accommodate to different materials.

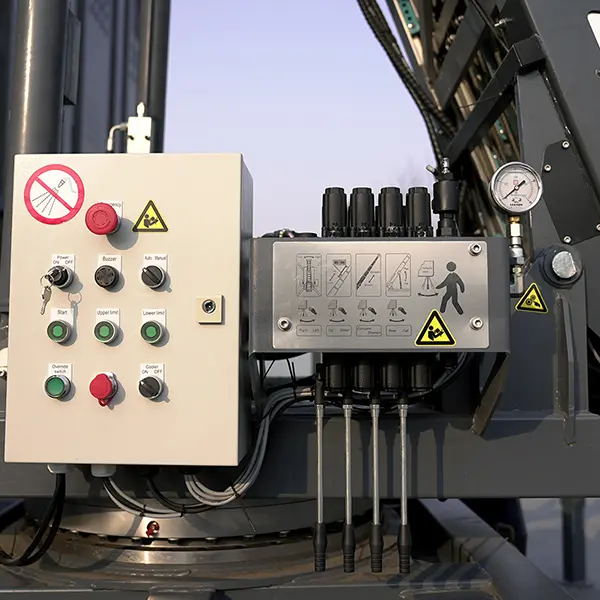

Electrical Control System
Equipped with safety devices and provides control of the system.

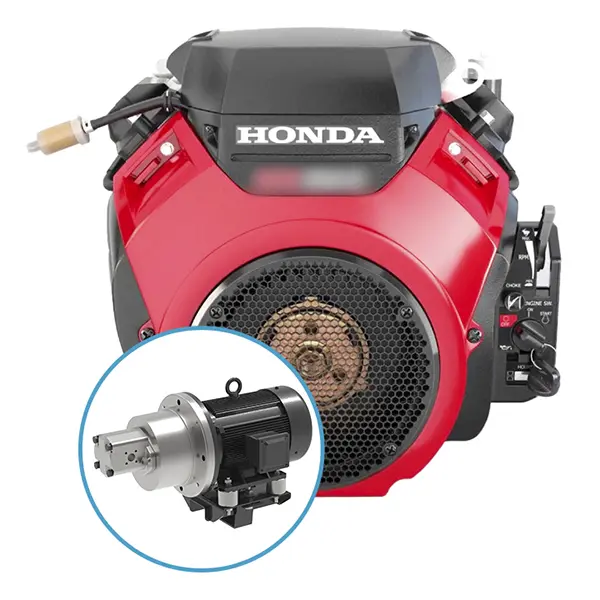

Gasoline Engine (Electric motor)
Drive via electric motor or HONDA petrol engine.

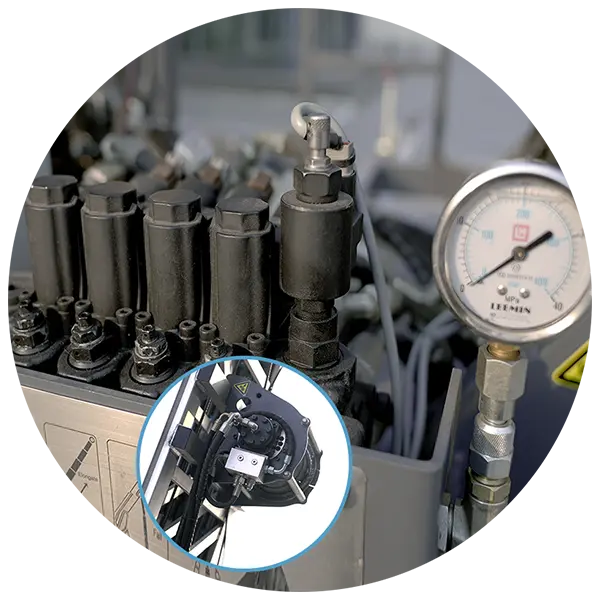

Hydraulic System
All key actions use hydraulic actuators.
Key Features
Easy Transport and Transfer
The equipment can be easily connected to a towing vehicle, facilitating convenient transport and transfer operations.
Convenient and Fast Deployment
Its integrated design and straightforward control system enable it to adapt to diverse applications in a time-efficient manner.
Versatile for Multiple Applications
Widely used in construction, building maintenance, furniture transportation, and solar panel handling, the equipment can be customized to meet the needs of various applications.
Multi-Mode Control
The hoist can be controlled via either the electrical control cabinet or a remote control, ensuring stable lifting operations with smooth start and stop functions.
Safe and Reliable
Safety and reliability are assured through features such as a broken rope device, position monitoring, an overspeed safety device, and a tilt prevention device.
Specifications
Model |
3S-YT518 |
Max. travel speed |
90km/h |
Rated load |
250kg |
Max. rail length |
18m |
Max. operating speed (up/down) |
24/48（m/min） |
Dead weight |
0.75t |
Power supply |
Electric motor |
Engine power |
230V 2.6kW |
Control voltage |
DC 24V |
Chassis dimensions (L, W) |
5300mm × 1400mm |
| Model | 3S-YT521 |
| Max. travel speed | 85km/h |
| Rated load | 250kg |
| Max. rail length | 21m |
| Max. operating speed (up/down) | 24/30（m/min） |
| Dead weight | 0.75t |
| Power supply | Electric motor |
| Engine power | 230V |
| Control voltage | DC 24V |
| Chassis dimensions (L, W) | 5970mm × 1400mm |
Model |
3S-YT621 |
Max. travel speed |
90km/h |
Rated load |
250kg |
Max. rail length |
21m |
Max. operating speed (up/down) |
24/48（m/min） |
Dead weight |
0.75t |
Power supply |
Electric motor |
Engine power |
230V 2.6kW |
Control voltage |
DC 24V |
Chassis dimensions (L, W) |
5300mm × 1400mm |
Model |
3S-YT724 |
Max. travel speed |
90km/h |
Rated load |
250kg |
Max. rail length |
24m |
Max. operating speed (up/down) |
24/48（m/min） |
Dead weight |
1.25t |
Power supply |
Electric motor |
Engine power |
230V 2.6kW |
Control voltage |
DC 24V |
Chassis dimensions (L, W) |
5970mm × 1400mm |
Model |
3S-YT732 |
Max. travel speed |
85km/h |
Rated load |
250kg/400kg |
Max. rail length |
32m |
Max. operating speed (up/down) |
24/48（m/min） |
Dead weight |
2.8t |
Power supply |
Electric motor Petrol engine |
Engine power |
13kW |
Control voltage |
DC 24V |
Chassis dimensions (L, W) |
6540mm × 1780mm |
Model |
3S-YT836 |
Max. travel speed |
90km/h |
Rated load |
400kg |
Max. rail length |
36m |
Max. operating speed (up/down) |
48/48（m/min） |
Dead weight |
2.8t |
Power supply |
Petrol engine |
Engine power |
13kW |
Control voltage |
DC 12V |
Chassis dimensions (L, W) |
7400mm × 1800mm |
