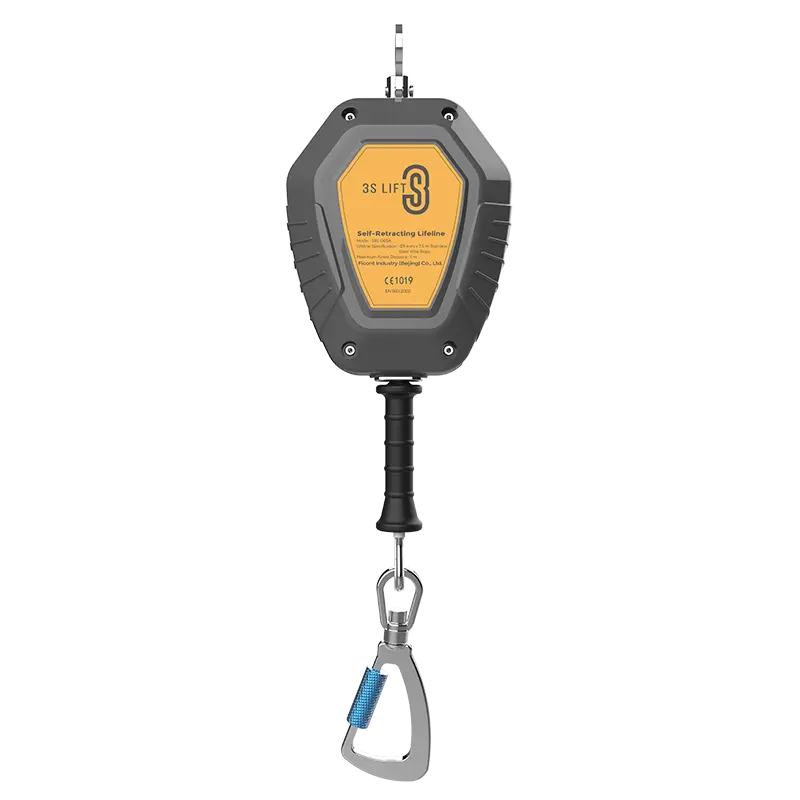

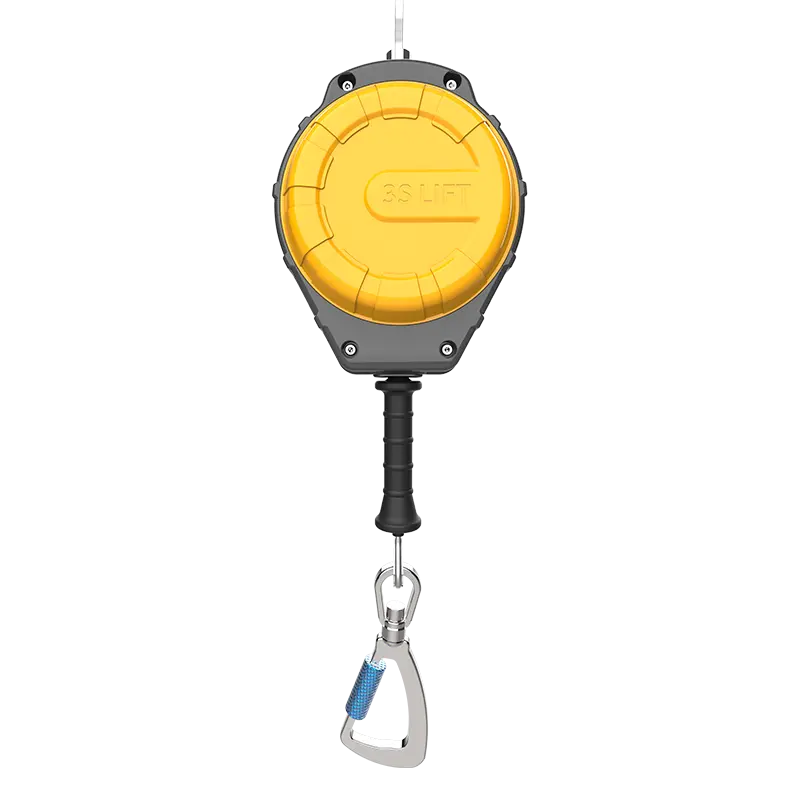

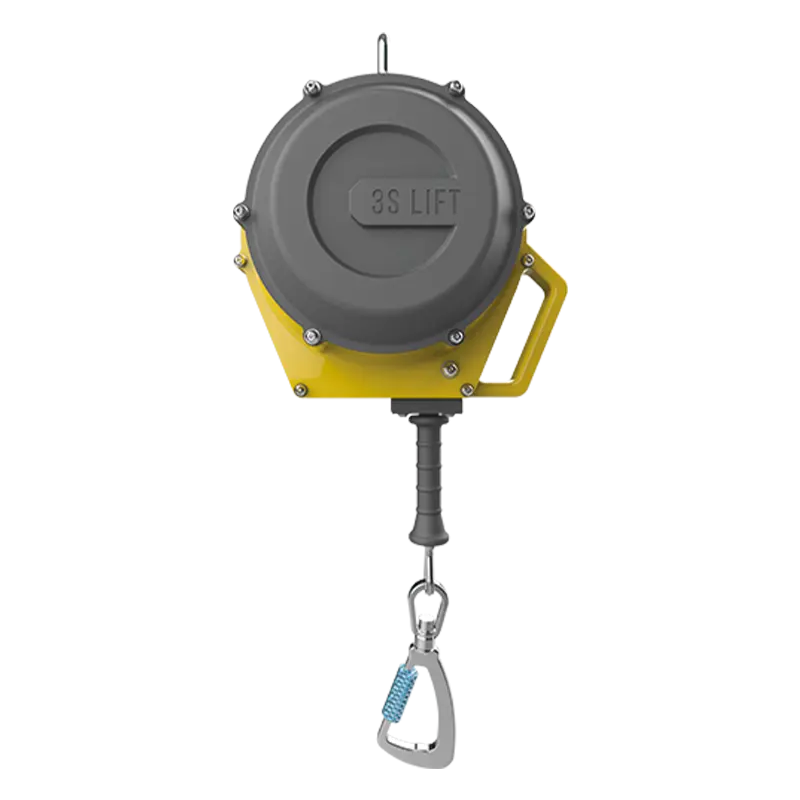

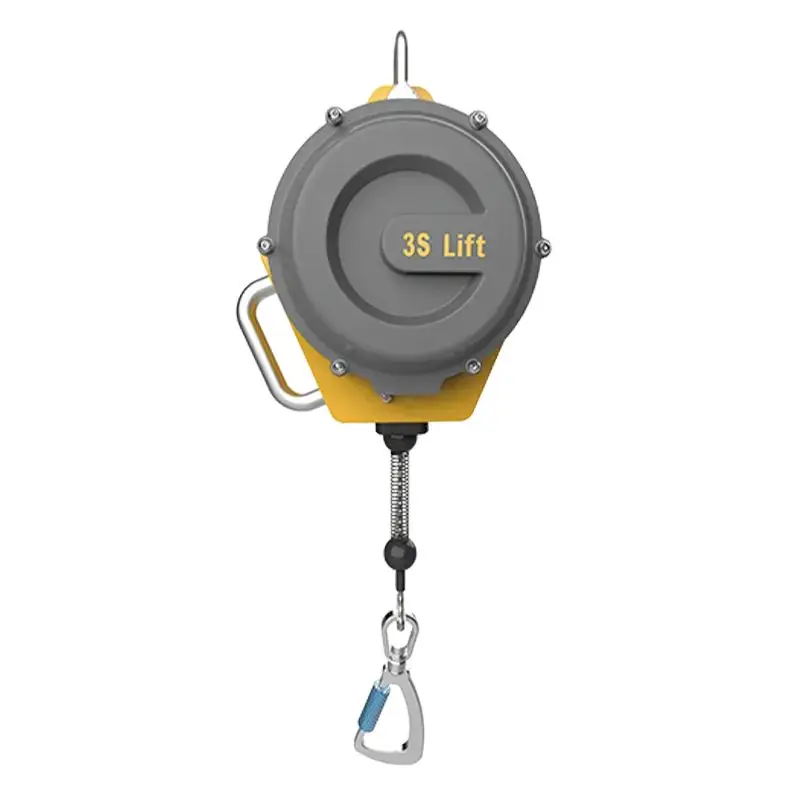

Self-Retracting Lifeline for Personal Safety Protection
Video
product description

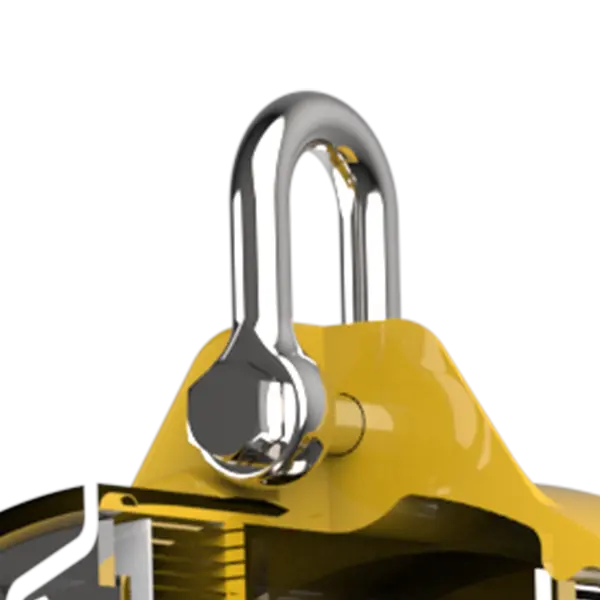

D shackle material: 316 stainless steel
It is extremely resistant to corrosion and more reliable than steel + anti-corrosion coating

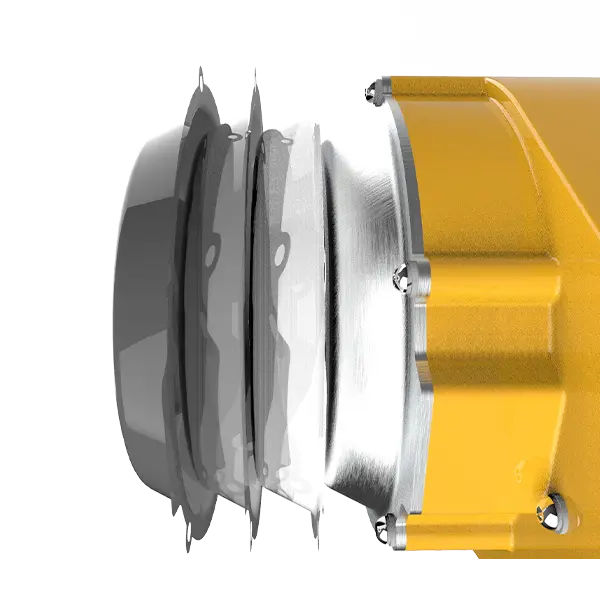

Housing and surface treatment: Aluminum alloy & Three-layer coating
It can meet the anticorrosion standard above C5-M and effectively prevent the corrosion of the external environment

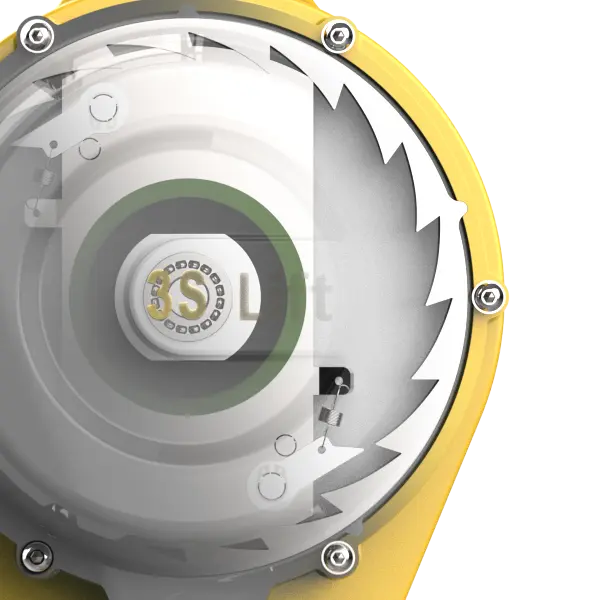

Internal and external fasteners: 316 stainless steel
The highest anti-corrosion level in the industry

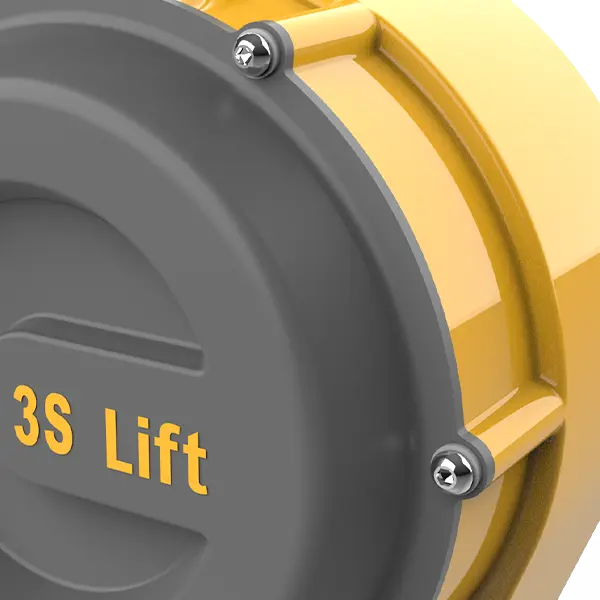

Sealing material: Silicone
Adapt to extreme harsh environment and upgrade corrosion resistance

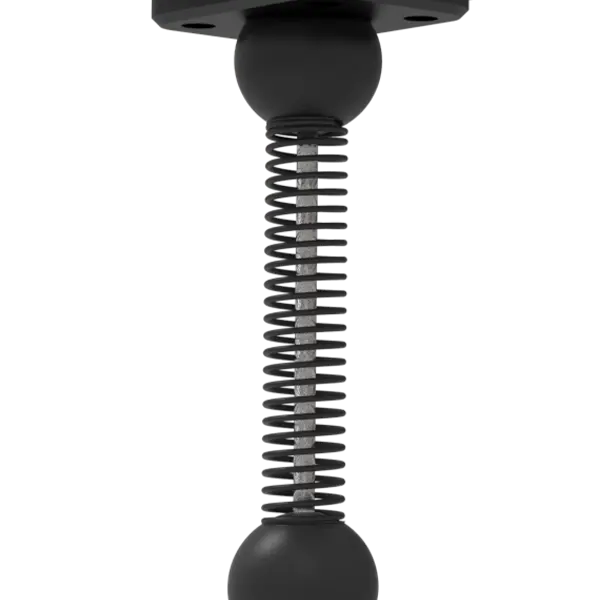

Wire rope: 316 stainless steel
It is suitable for the condition that requires high anticorrosion

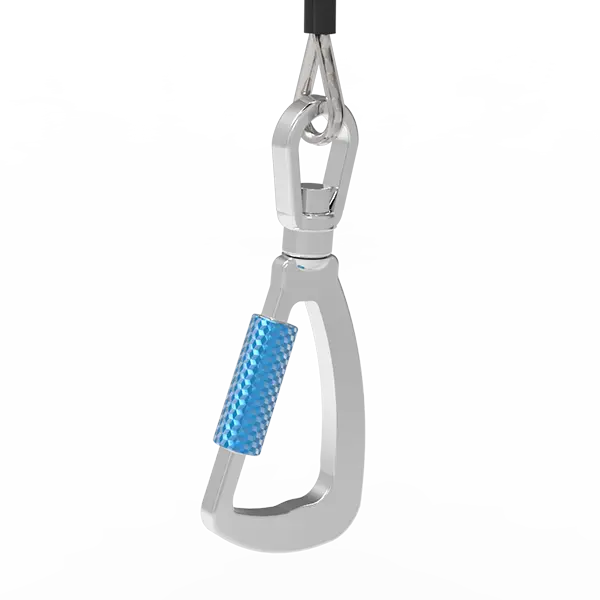

Rotatable hooks: Aircraft-class aluminum alloy
AA7075 aluminum alloy, high strength, corrosion resistance, hook can be rotated 360°, prevent steel cable kinks
Key Features
SRL-15S & SRL-25S
• IP68 and IP69K protection levels, suitable for extreme environments
• Passed 2000h corrosion resistance test, the highest standard in the industry
• All internal and external connectors are made of 316 stainless steel
• High-strength aluminum alloy shell covered with three layers of paint, double corrosion resistance
SRL-15S & SRL-25S & SRL-06SA & SRL-08SA
• Short braking distance, quick response and safer
• Small size, light weight, easy to carry and install
• Strong bearing capacity and strong impact resistance
Specifications
Model |
SRL-15S |
SRL-06SA |
Rated load |
30–140 kg |
30–140 kg |
Wire rope length |
15 m |
6 m |
Wire rope specifications |
φ 5 mm SUS316 |
φ 5 mm SUS304 |
Maximum braking distance |
≤1 m |
≤1 m |
Protection class |
IP 68 / IP 69K |
/ |
Anti-Corrosion class |
C5-M |
C4-H |
Operating temperature |
-40°C to 54°C |
-40°C to 54°C |
|
Weight (including rope) |
13.5 kg |
4.9 kg |
Standard |
CSA Z259.2.2-2017 EN 360:2002 GB 24544-2009 ANSI Z359.14-2014 ANSI A10.32-2012 OSHA 1910.66 OSHA 1926.502 |
CSA Z259.2.2-2017 EN 360:2002 GB 24544-2009 ANSI A10.32-2012 ANSI Z359.14-2021 OSHA 1910.66 OSHA 1926.502 |
Certification |
CE, GB, CSA, ANSI, OSHA |
CE, ANSI, CSA, OSHA |
