Rail-Type Fall Protection System
Video
product description

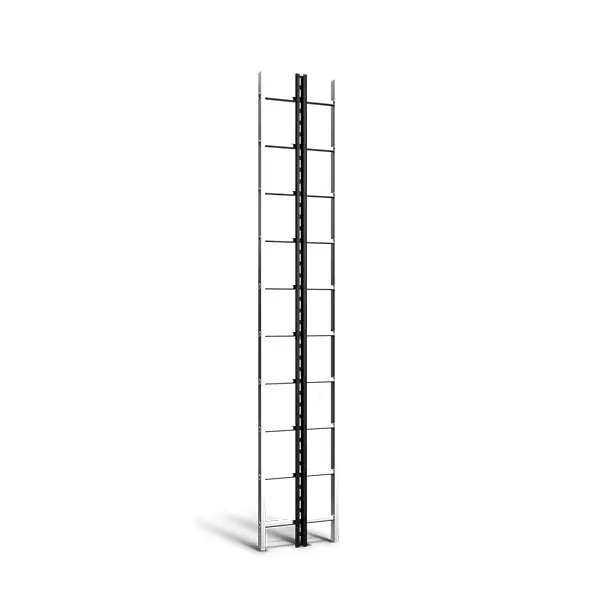

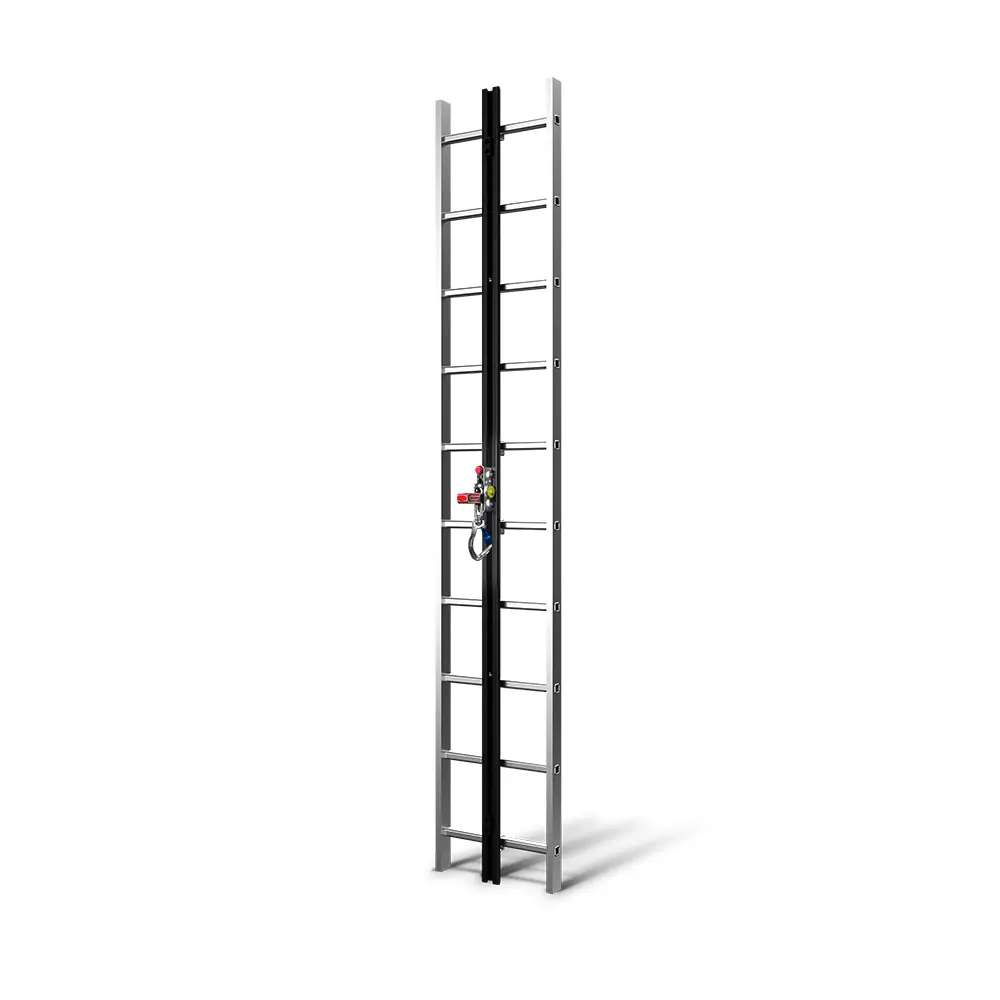

Installation on any Ladder
This system is highly versatile and can be installed on any ladder, whether it is made of aluminum or steel. This broad compatibility ensures that it can be integrated into a wide range of existing setups, providing a convenient fall protection solution across various industries and applications.

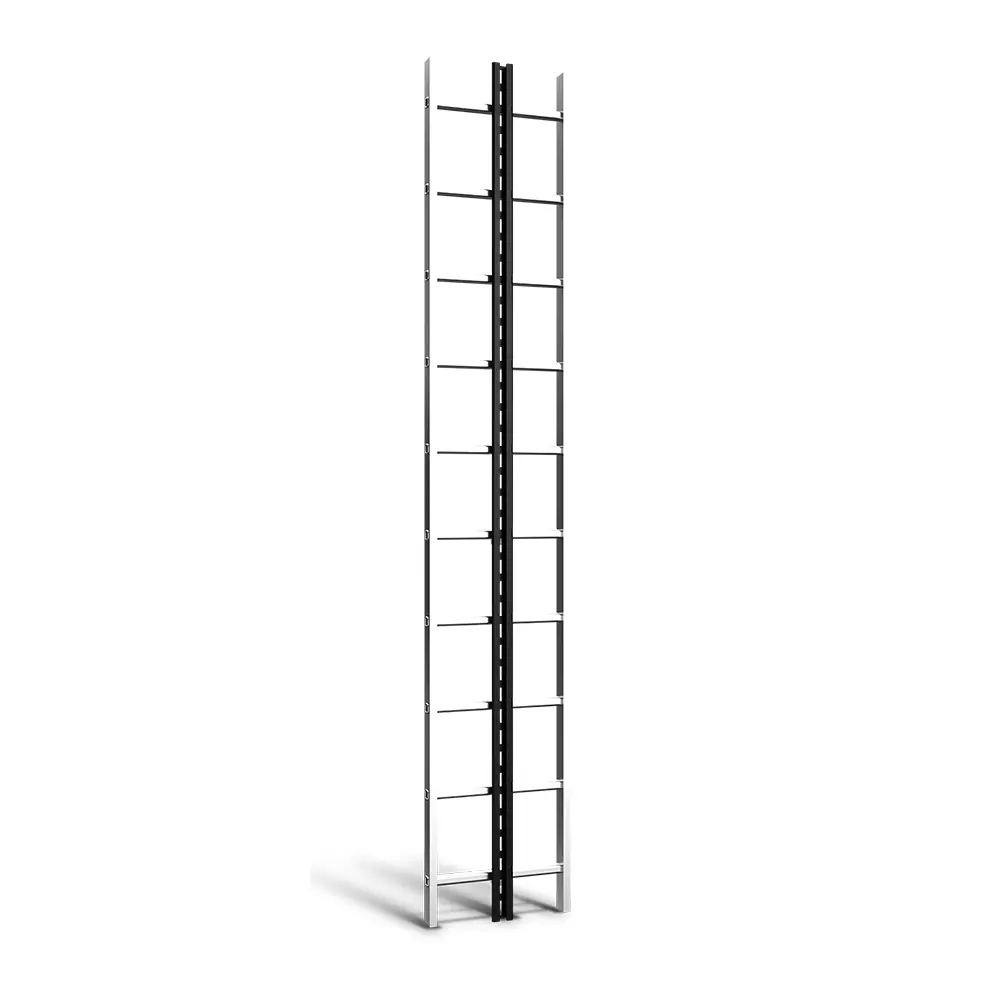

Guide Rail
The system features a crucial guide rail as one of its key elements. This guide rail plays a central role in facilitating the operation of the fall protection mechanism.

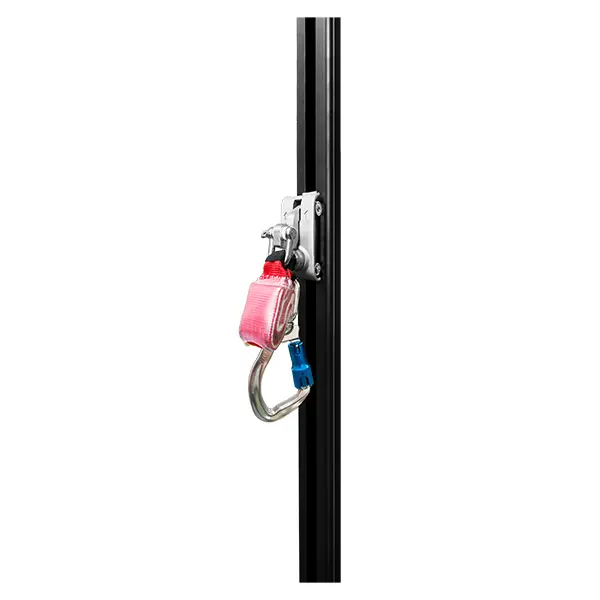

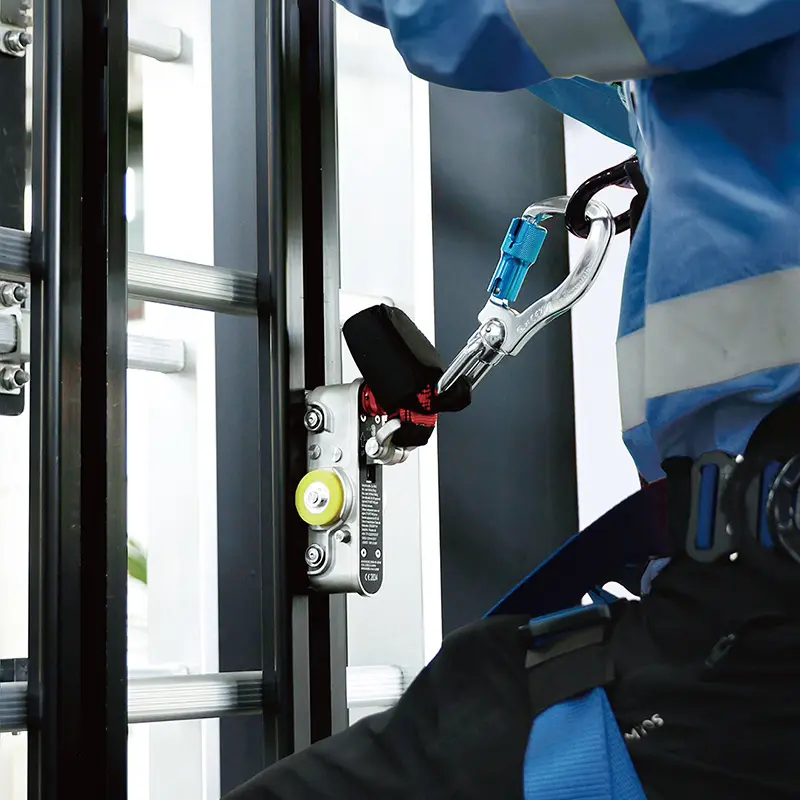

Fall Arrester
The Guide Rail Fall Protection System is compatible with several models of fall arresters, namely the Fall Arrester SL - R60S, SL - R50E, and SL - R50. These fall arresters work in tandem with the guide rail to offer reliable protection against falls. In the event of an accidental slip, they engage with the guide rail to prevent the user from falling, providing a high level of safety in elevated work environments.
Key Features
Energy Absorber
In order to effectively dampen the impact during a fall, our Fall Arresters are equipped with an energy - absorbing mechanism. This not only significantly enhances safety but also contributes to a more comfortable experience for the user. Notably, the SL - R50E and SL - R60S models are designed with two separate energy absorbers, guaranteeing outstanding performance in dissipating the kinetic energy generated during a fall event.
Anti - Inversion Design
The fall arresters are engineered with an intuitive design that permits installation in only one correct direction. This unique feature eliminates the possibility of operator error due to incorrect installation, thereby bolstering the overall reliability of the fall protection system.
Attachment at Any Position
Our Fall Arresters offer remarkable flexibility as they can be easily attached to or removed from any location along the guide rail. This adaptability allows for seamless integration into various work scenarios and enables quick adjustments based on the specific requirements of the task at hand.
Comfortable and Convenient Use
These Fall Arresters are designed with a focus on comfort and convenience. They smoothly follow the climber's movement as they travel along the guide rail, eliminating the need for the climber to manually tug or adjust the device. This smooth operation ensures an unhindered and stress - free climbing experience.

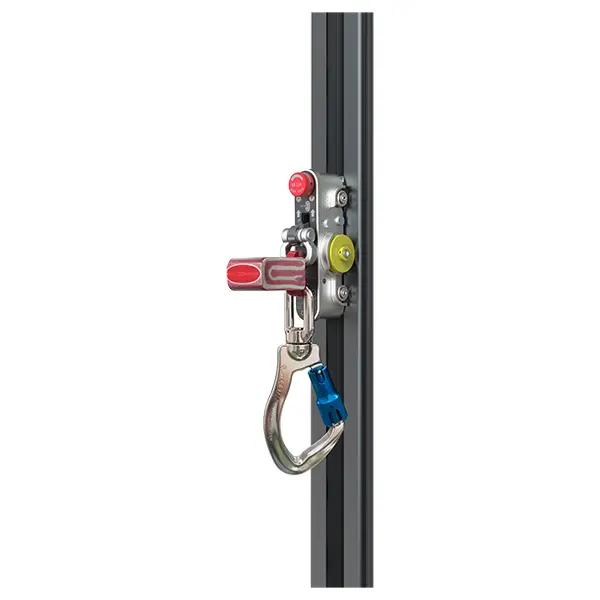

Secondary Locking Mechanism
The SL - R60S model goes the extra mile in safety provisions by incorporating a secondary locking mechanism in addition to the primary one. This additional layer of security provides an enhanced level of protection, reducing the risk of accidental unlocking and subsequent falls.

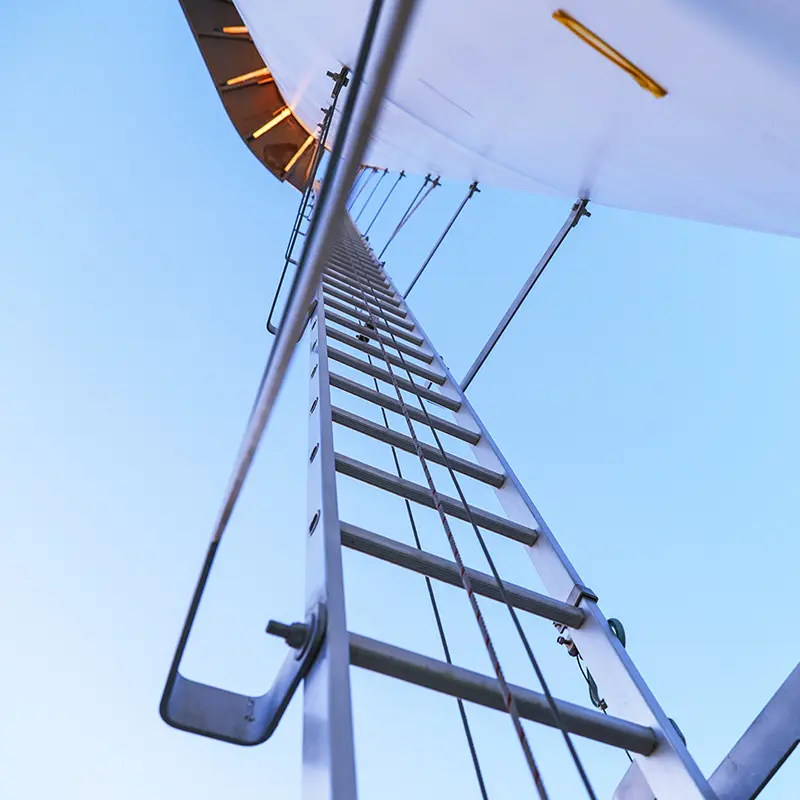

On - and Offshore Use
Our Fall Arresters are constructed using materials that are highly resistant to corrosion and abrasion. As a result, they are perfectly suited for deployment in challenging environments, both onshore and offshore. Whether facing the corrosive effects of saltwater in offshore settings or the abrasive conditions of industrial onshore sites, these arresters maintain their integrity and functionality, ensuring reliable fall protection.
Specifications

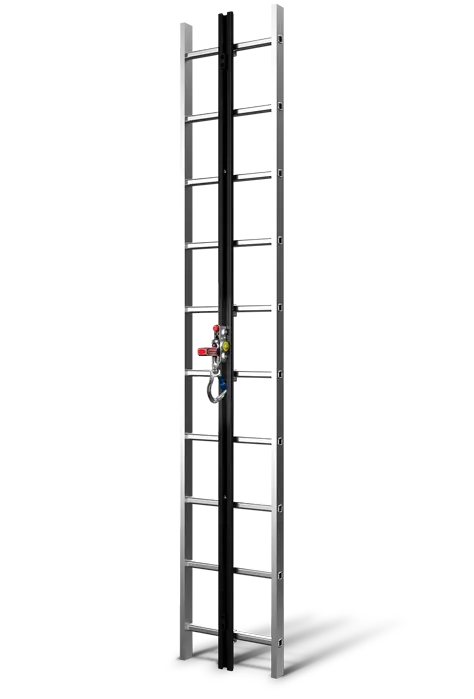

Model |
TF-R5 TF-R |
Compatible fall arrester |
SL-R60S, SL-R50E |
Guide rail type |
Internal sliding type |
Applicable ladder |
Aluminum ladders or steel ladders |
Max. static load |
16 kN |
Standard |
See compatible fall arrester |
Model |
SL-R60S |
SL-R50E |
Compatible guide rail |
TF-R5, TF-R |
|
Rated load |
30 kg to 140 kg |
|
Max. static load |
16 kN |
|
Certification |
CE, ANSI, OSHA, ABNT/NBR, AS/NZS |
CE |
Standard |
EN 353-1；ANSI Z359.16；CSA Z259.2.4；ANSI A14.3；OSHA 1910.140；AS/NZS 1891.3；ABNT/NBR 14627 |
EN 353-1 |
