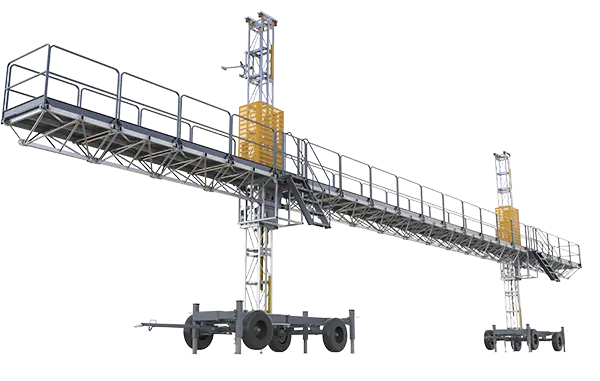

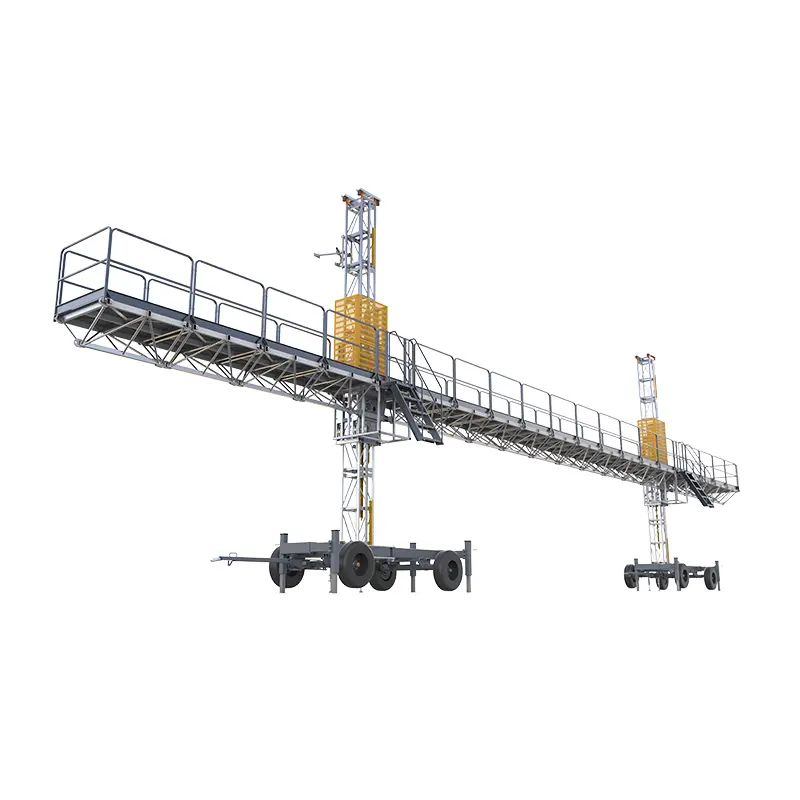

Mast Climbing Work Platform-Twin Mast
Video
product description

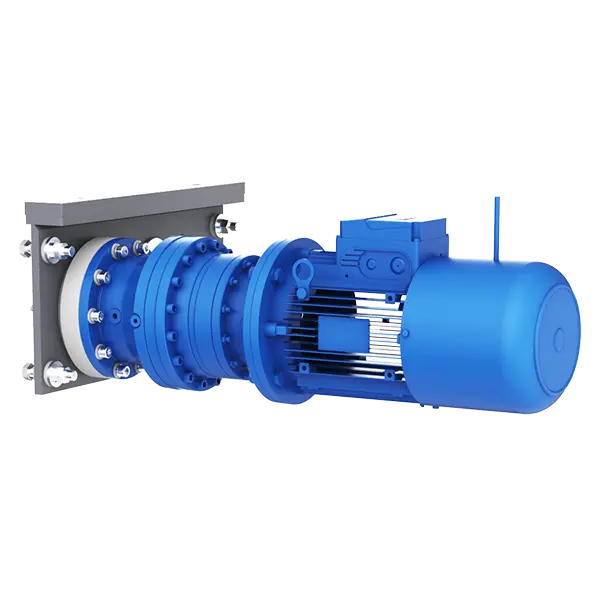

Drive unit
The gear motor efficiently propels the work platform either upwards or downwards along the mast. Should there be a power outage, the manual descent mechanism is engaged to safely lower the work platform to the ground.

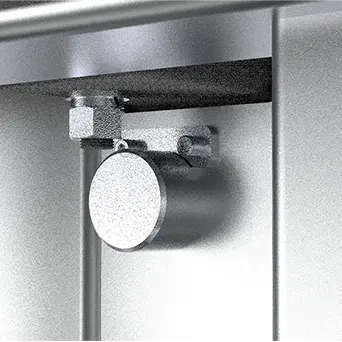

Overload detection device
When the load exceeds the rated capacity, the device triggers both an audible and visual alarm, simultaneously shutting off the power supply to ensure safety.

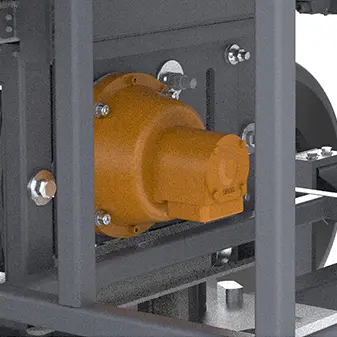

Overspeed safety device
Upon reaching the actuating speed, the device engages to halt the motion of the work platform and simultaneously disconnects the power supply for enhanced safety.

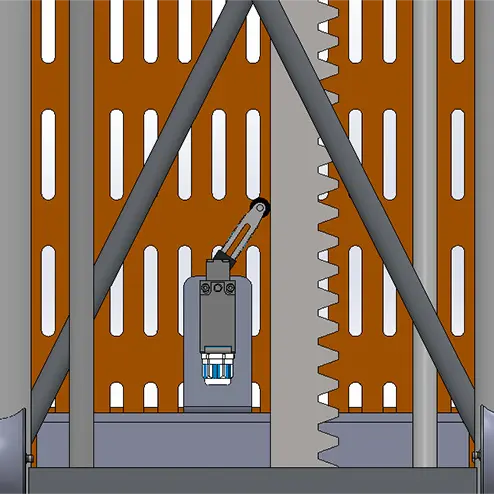

Rack detection switch
To prevent the work platform from separating from the mast, the power supply is automatically disconnected when the switch is activated. The power can be safely reconnected by resetting the switch once the platform has been manually lowered.

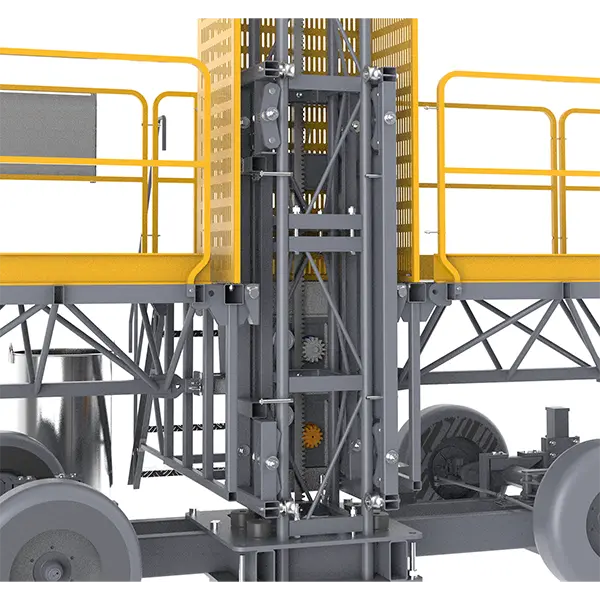

Guiding system
To make sure that the platform travels in the designate path and in a safe and smooth manner.

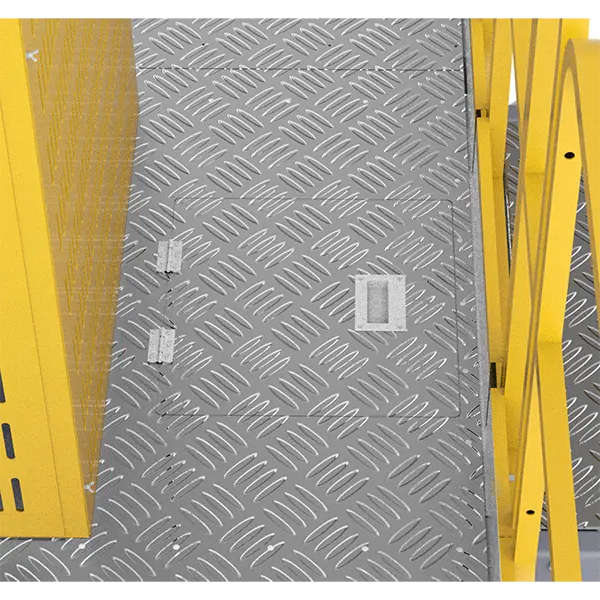

Work platform
Modular work platform, meeting diverse operational needs across various scenarios.

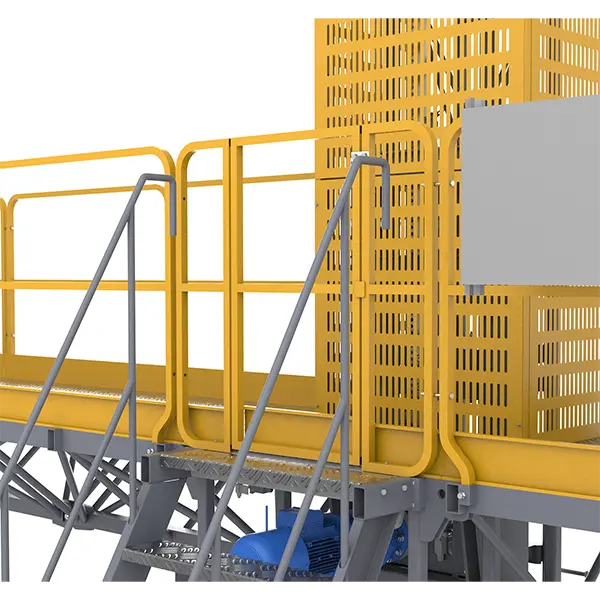

Platform gate
The gate is strategically placed in the center for convenient access. It is equipped with position switches that ensure the platform remains stationary when the gate is open, and allows normal operation when the gate is securely closed.

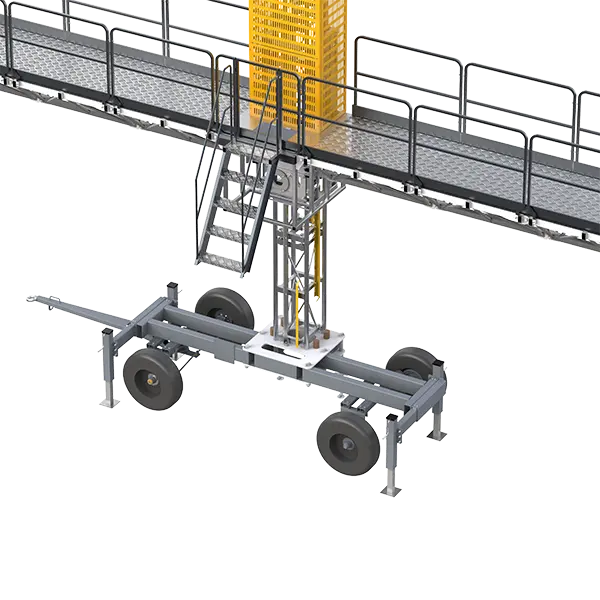

Towable chassis
Solid tires, retractable outriggers for stable support, ensuring safe operations.
Key Features
Robust and durable structure.
Quick Installation and simple operation.
Flexible relocation.
Applicable in various applications.
Specifications
Model |
MCWP450-T |
Load capacity |
2 500 - 4 500 kg |
Platform dimensions (length × width) |
8.4 m-29.4 m×1.2 m |
Lifting height |
200 m |
Lifting speed |
8 m/min±10% |
Power supply |
400 v 3P + N + PE 50/60 Hz |
Mast section dimensions |
450 mm × 450 mm × 1 508 mm |
Power |
2×5.5 kW |
