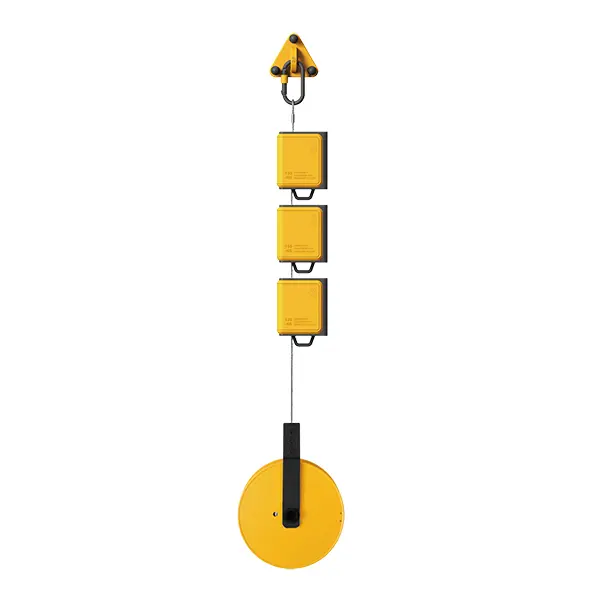

3S LIFT High Altitude Descender

Name

3S High Altitude Escape Descender

3S High Altitude Escape Descender

Model

Y1

TH Series

Positioning

Home Use

Commercial Use

Standard Product Adaptation Height

20/40/60/80/100m (customizable)

30m-100m (customizable)

Use Times

Designed for Single Descending

Designed for Repeated Multi-person Descending (based on 6000m vertical lift)

Single Machine Load

35kg-150kg

35kg-150kg

Maximum Supported Number of People

6 people (i.e. the three-machine version supports 3 adults + 3 children)

 100 people (based on 6000m vertical lift)

Wire Rope

Diameter 4.1mm

Diameter 5mm

Name

Size (mm)

Weight (g)

Packing box

Length: 471, width: 376, thickness: 259

2600

Descender main unit

Length: 165, width: 122, thickness: 73

2000

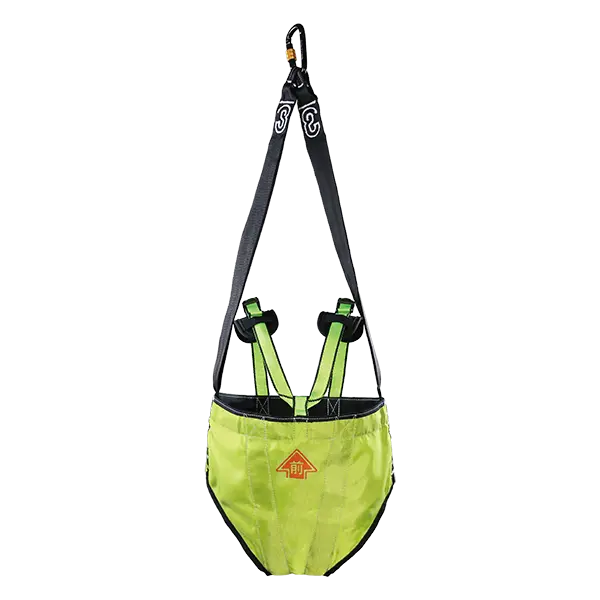

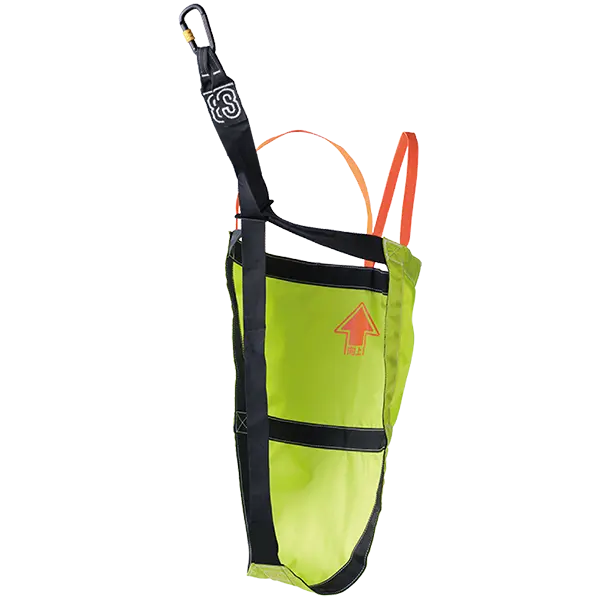

Safety harness

Folding size: 150*90*60, unfolding size: 720*800*800

530

Wire rope drum

Length: 336, width: 250, thickness: 68

2000~7900

Safety hook

O-type: length 110, width 60, thickness 10, D-type: length 100, width 53, thickness 10

O-type: 160, D-type: 150

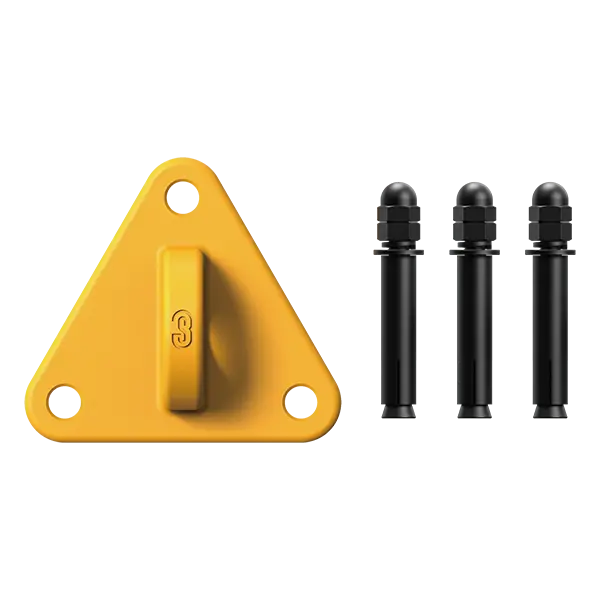

Safety anchor point

Side length: 118, thickness: 8, height: 33

570

Expansion bolt

M12*100

140

Name

Size (mm)

Storage bag

About ⌀250 * 350

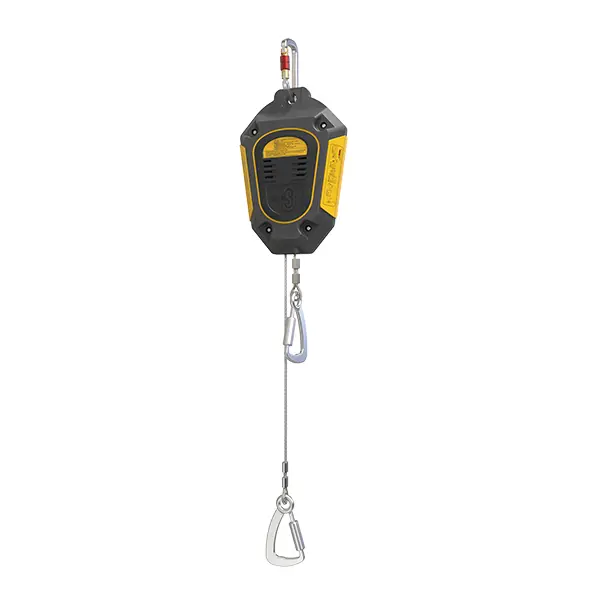

Descender main unit

Length: 192, width: 109, thickness: 40

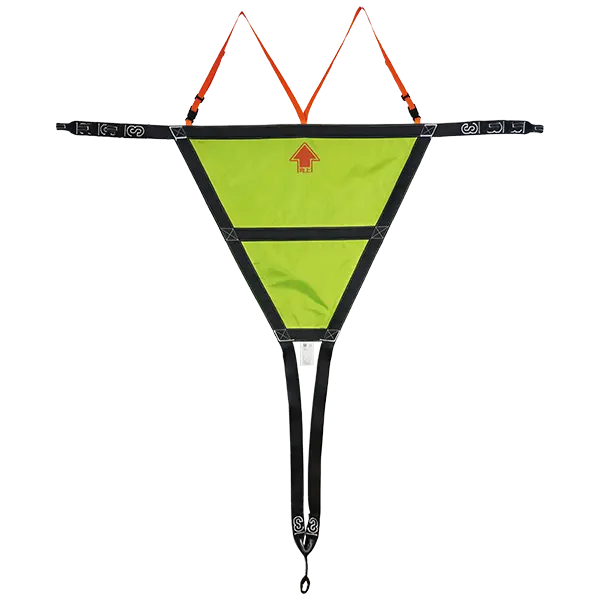

Safety harness

Folded size: 150*90*60, unfolded size: 720*800*800

Rope (including heart ring)

10m/20m/30m/40m/50m/60

Safety hook

O-type: length 110, width 60, thickness 10, D-type: length 100, width 53, thickness 10
