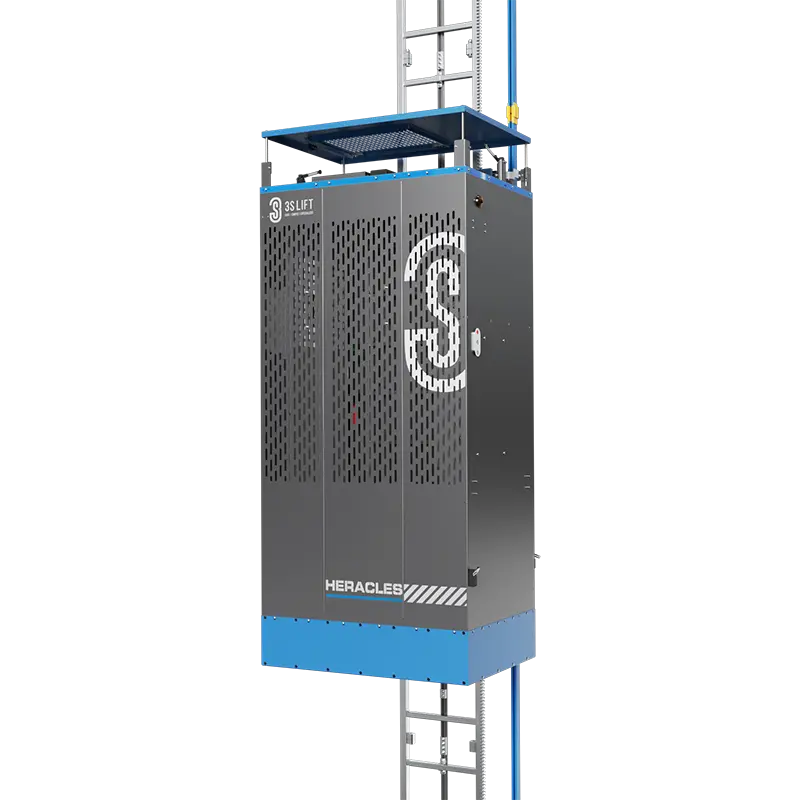

Heracles Rack And Pinion Ladder-Guided Service Lift
Video
product description

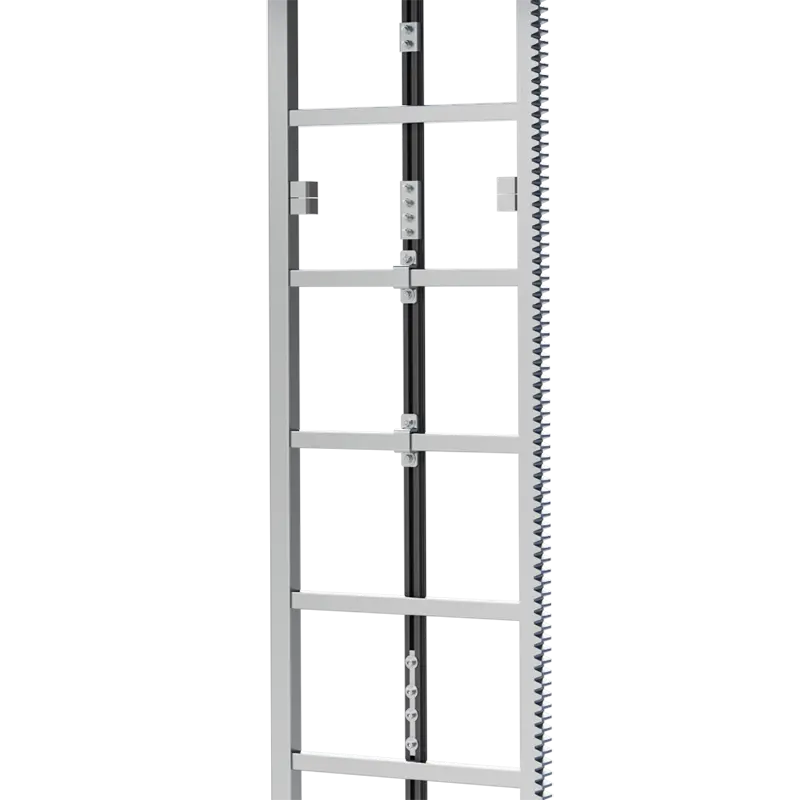

Rack and Pinion Ladder
As the carrier of the lift, the ladder is welded with standard rack and pinion and profiles.

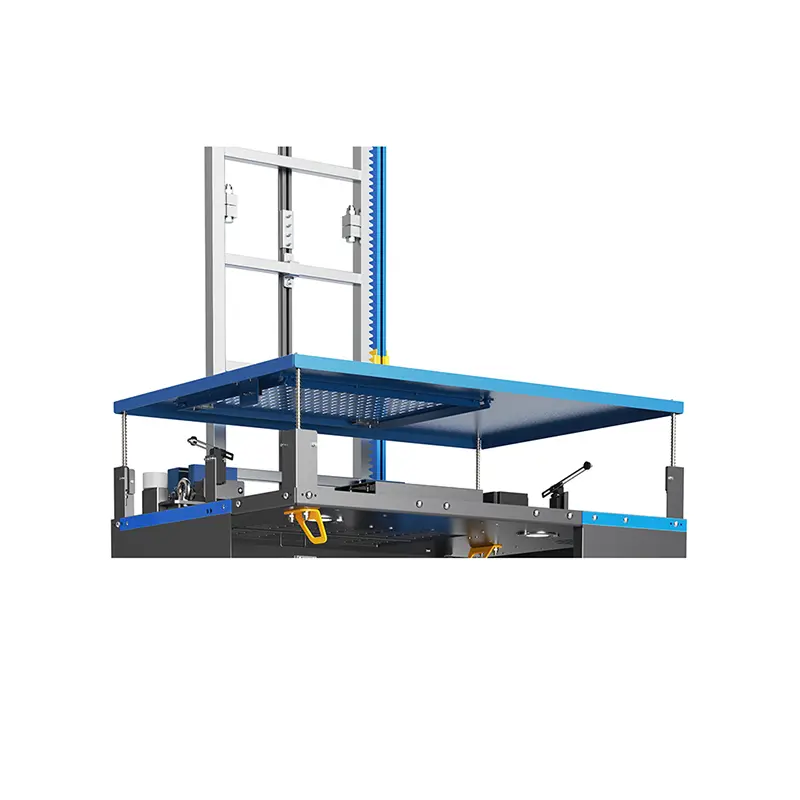

Top Sensing Panel
When the lift comes in contact with an obstacle, the panel is compressed and a sensor is triggered.

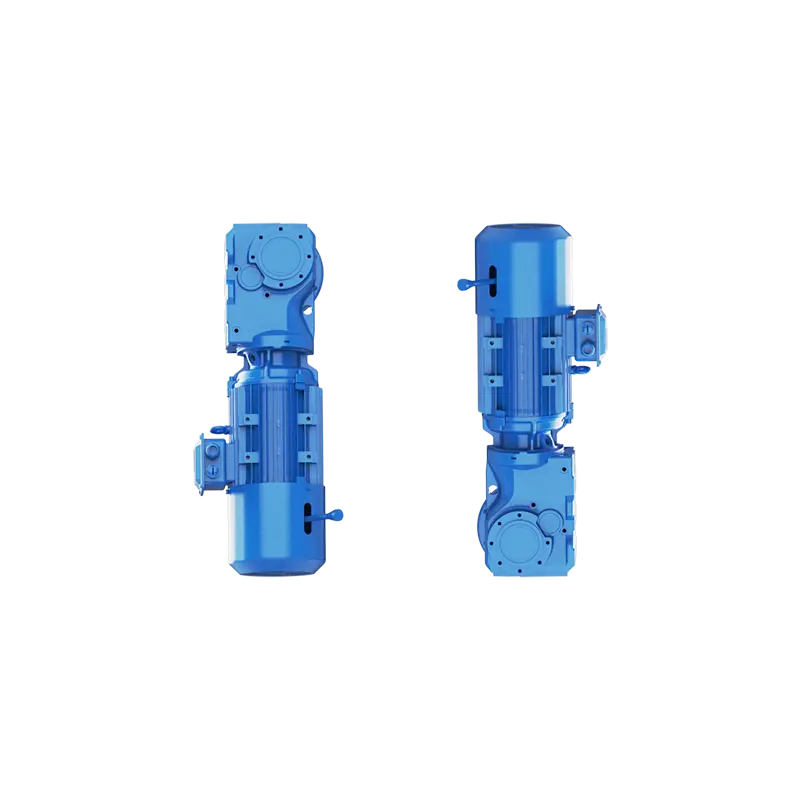

Driving device
Ddrive the rack and pinion meshing transmission through the gear motor so that the service lift can descend or ascend towers.

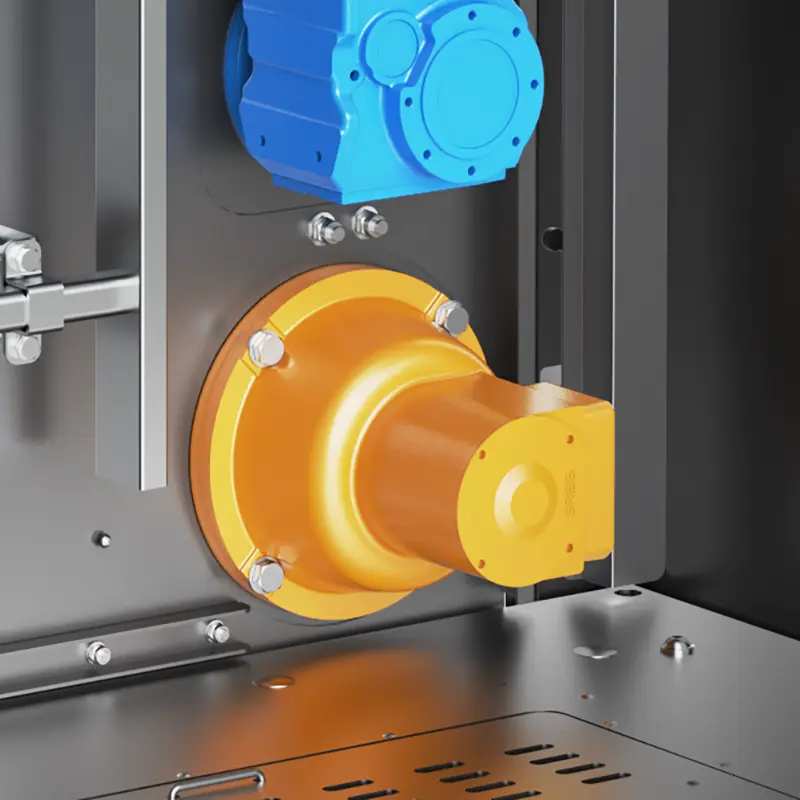

Fall protection system
When the descending speed of the lift exceeds the preset speed of the fall arrester. It will lock automatically and its indicator in the control cabinet will light up to stop the lift.

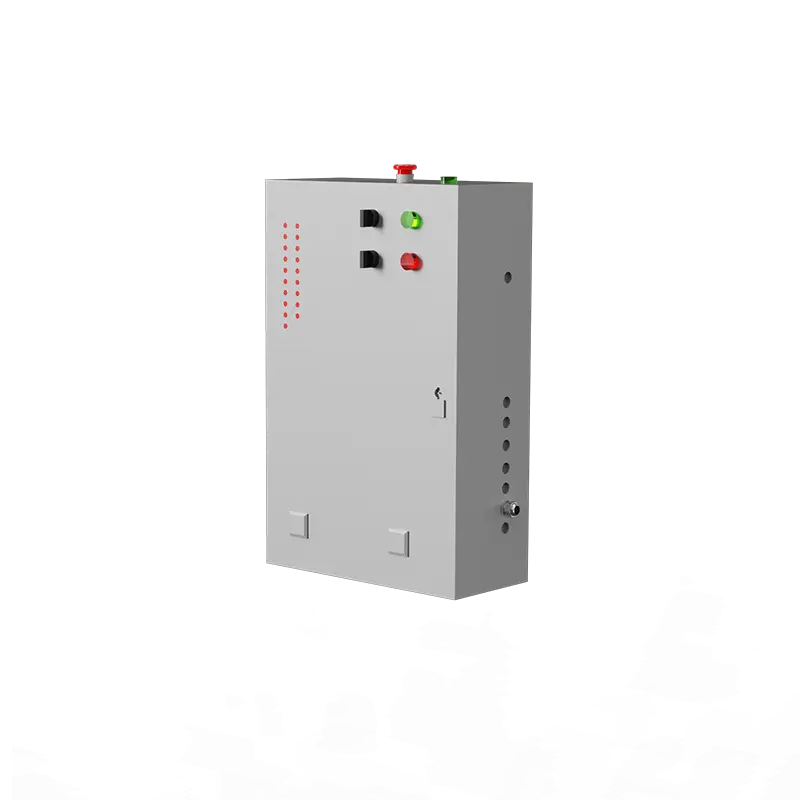

Control Cabinet
As the control system of the lift, the control cabinet is located inside the car.

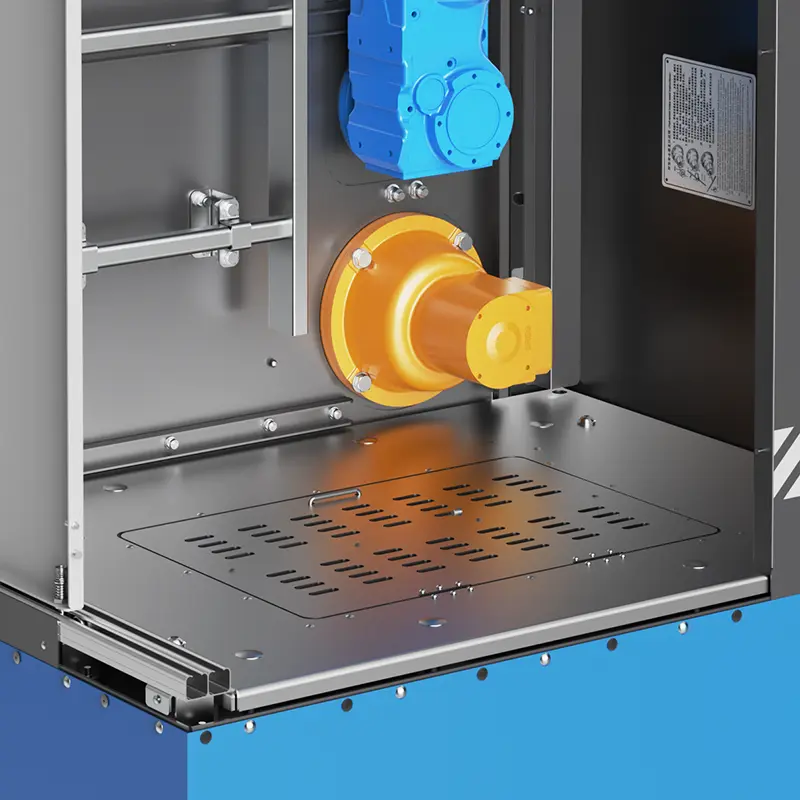

Lower Escape Board
Located at the bottom of the lift, it can be opened inside or outside the car for escape or rescue.

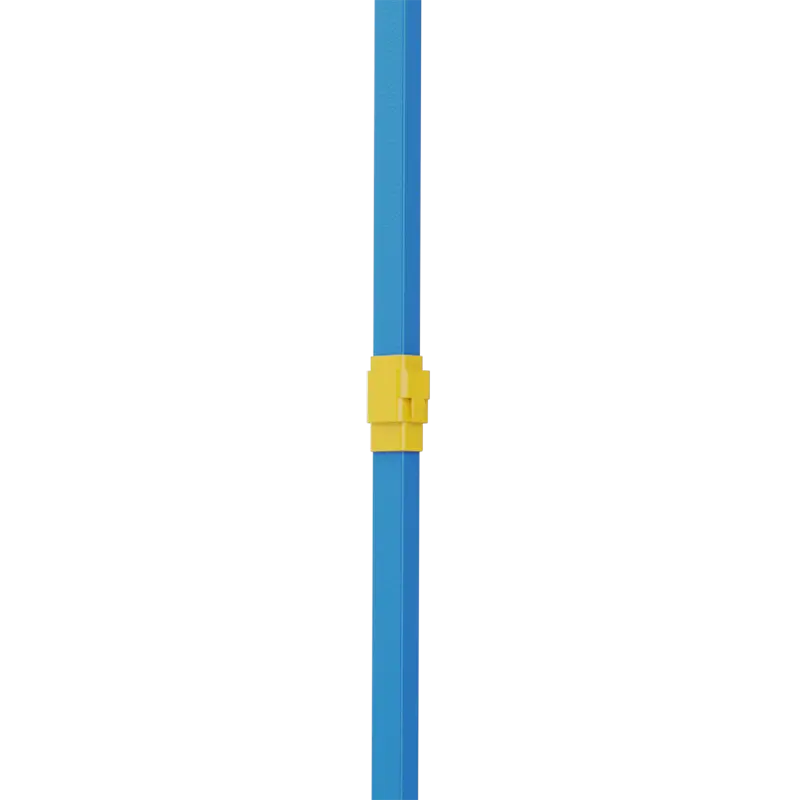

Insulated Guide Rail Supply System
It serves as the power supply of the lift, replacing the traditional cable.

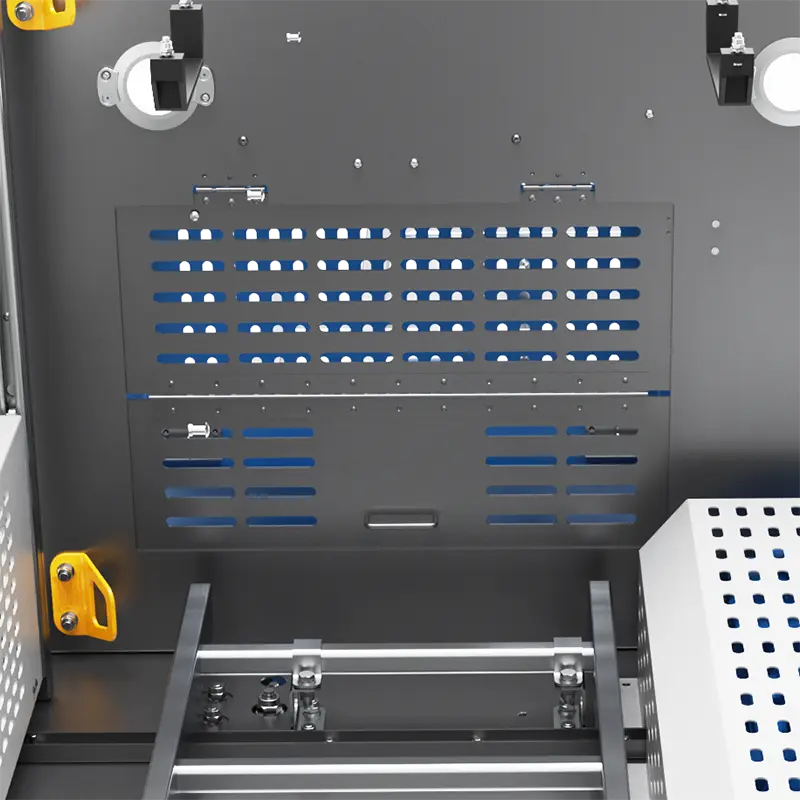

Upper Escape Board
Located at the top of the lift, it can be opened inside or outside the car for escape or rescue.
Key Features
Insulated Guide Rail Supply System (optional)
Adopting the insulated guide rail system, it fundamentally solves the problems of broken skin, breakage and poor cable collection, etc., which is safer.
Rack and Pinion Drive
Pinion drive instead of conventional wire rope makes it operate stably. It avoids the problems of wire rope winding, jamming and breaking of conventional service lift.
Dual drive system
Built-in 2 lifting systems. When one breaks down, the other can still descend and ascend safely under low load.
Ready for use during the construction period
Once the bottom section of the tower has been installed, Heracles is powered up and ready for use immediately. This lift can be used during the subsequent construction and commissioning phase, increasing the construction’s overall efficiency.
Large capacity, large load
Max load 480 kg, Max capacity 4 persons. (capacity and load can be customized)
Faster speed, higher efficiency
Max lifting speed of up to 36 m/min, twice as much as conventional lifts.
Specifications
Mode |
H480 |
Rated load |
480 kg |
Capacity |
4 persons |
Speed |
18 m/min, 36 m/min |
Dimensions |
1200 mm × 860 mm × 2820 mm |
Rated voltage |
400 / 690 V, 50 / 60 Hz, 3P+PE |
Operating temperature |
-30 ℃ to +60 ℃ |
Mode |
H350 |
Rated load |
350 kg |
Capacity |
3 persons |
Speed |
18 m/min, 36 m/min |
Dimensions |
1200 mm × 860 mm × 2820 mm |
Rated voltage |
400 / 690 V, 50 / 60 Hz, 3P+PE |
Operating temperature |
-30 ℃ to +60 ℃ |
Mode |
H240 |
Rated load |
240 kg |
Capacity |
2 persons |
Speed |
18 m/min, 36 m/min |
Dimensions |
1030 mm × 860 mm × 2700 mm |
Rated voltage |
400 / 690 V, 50 / 60 Hz, 3P+PE |
Operating temperature |
-30 ℃ to +60 ℃ |
