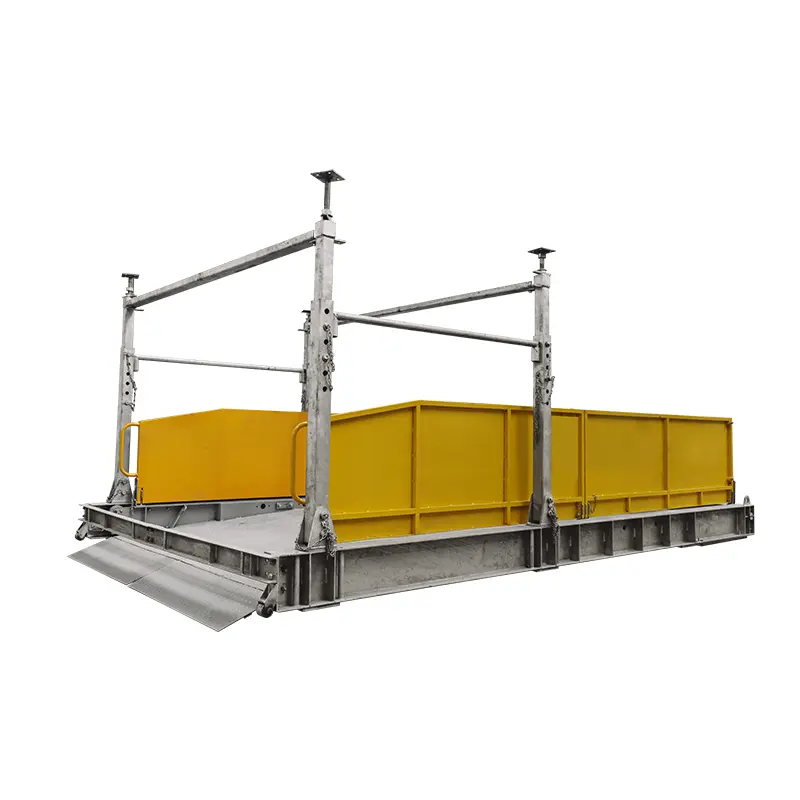

3S LIFT Easy Transport and Transfer

The 3S LIFT Retractable Discharge Platform serves as a temporary operating platform or frame constructed on construction sites for material turnover. Its versatile applications include:
● Building construction
● Bulk material transportation
● Both fixed and mobile settings

product details

Video

Key Features

Easy Installation

The installation process is straightforward, allowing two people to complete it within half a day.

User-Friendly Operation

Cargo transfer is achieved simply by pushing and pulling, making it very easy to use

Safe and Reliable

Constructed with a high-strength steel main structure, it boasts a high safety factor.

Versatile Configurations

We offer multiple configurations to provide customers with satisfactory solutions tailored to different scenarios and working conditions.

Specifications

Model	S X P250
Outer width	2280mm
Inner width	1680mm
Front and rear support spacing	1600mm
Distance between left and right supports	2000mm
Minimum support spacing	2600mm
Maximum support spacing	4000mm
Shrinkage length	3600mm
Development length	5370mm
Fixed frame extension length	1130mm
Distance of front support from wall	652mm
Active frame extends length	1870mm
Overhang distance	3000mm
Maximum total load (uniform distribution)	2.5t

Model	MLP2200 - H
Outer width	2200mm
Inner width	1740mm
Front and rear support spacing	2300mm
Distance between left and right supports	2050mm
Minimum support spacing	2400mm
Maximum support spacing	3300mm
Shrinkage length	5805mm
Development length	9435mm
Fixed frame extension length	1450mm
Distance of front support from wall	1695mm
Active frame extends length	3800mm
Overhang distance	/
Maximum total load (uniform distribution)	5t

Model	MLP3400 - H
Outer width	3400mm
Inner width	2900mm
Front and rear support spacing	2000mm
Distance between left and right supports	3250mm
Minimum support spacing	2400mm
Maximum support spacing	3300m
Shrinkage length	5700mm
Development length	9200mm
Fixed frame extension length	1200mm
Distance of front support from wall	/
Active frame extends length	3800mm
Overhang distance	/
Maximum total load (uniform distribution)	5t

Model	CNH32
Outer width	3165mm
Inner width	2500mm
Front and rear support spacing	2235mm
Distance between left and right supports	2965mm
Minimum support spacing	2420mm
Maximum support spacing	3700mm
Shrinkage length	5500mm
Development length	8500mm
Fixed frame extension length	1400mm
Distance of front support from wall	1635mm
Active frame extends length	3005mm
Overhang distance	/
Maximum total load (uniform distribution)	10t

Model	CNH42
Outer width	4165mm
Inner width	3500mm
Front and rear support spacing	2235mm
Distance between left and right supports	3965mm
Minimum support spacing	2420mm
Maximum support spacing	3700mm
Shrinkage length	5500mm
Development length	8500mm
Fixed frame extension length	1400mm
Distance of front support from wall	1635mm
Active frame extends length	3005mm
Overhang distance	/
Maximum total load (uniform distribution)	10t
