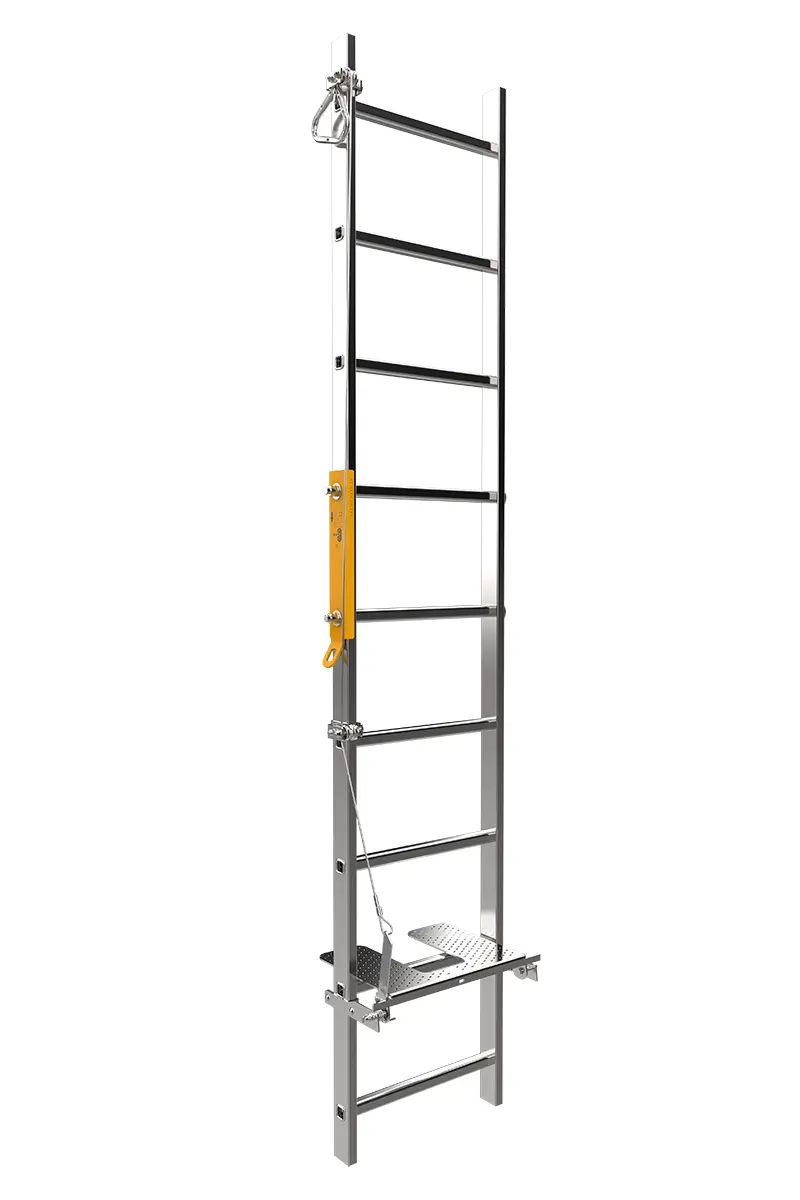

Customizable And Multi-Functional Aluminum Ladder
Video
product description

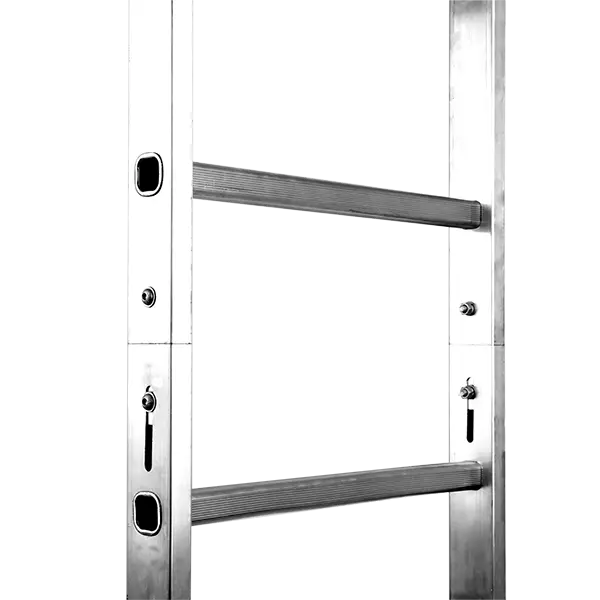

High-Quality Rivets
The ladder incorporates high-quality rivets that are both crush-resistant and impact-resistant.

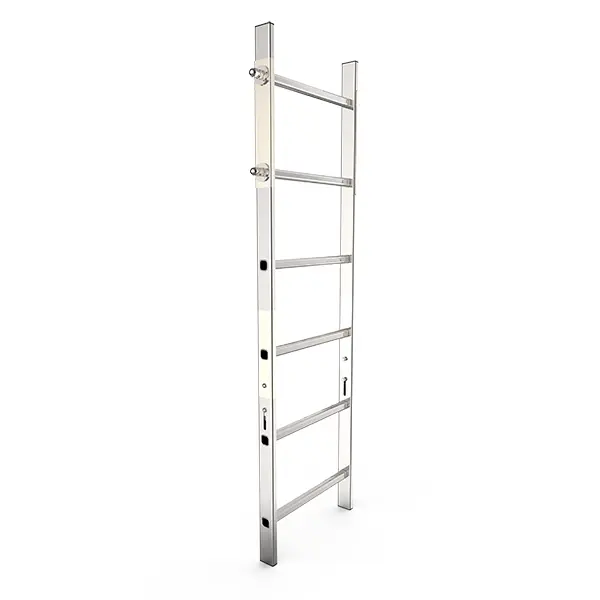

Ladder Anchor Point
It is primarily utilized as a fixed suspension point in personal protection equipment to safeguard against falls during operations. Additionally, it can serve as a suspension point for an auto-descending device, enabling personnel to escape safely.

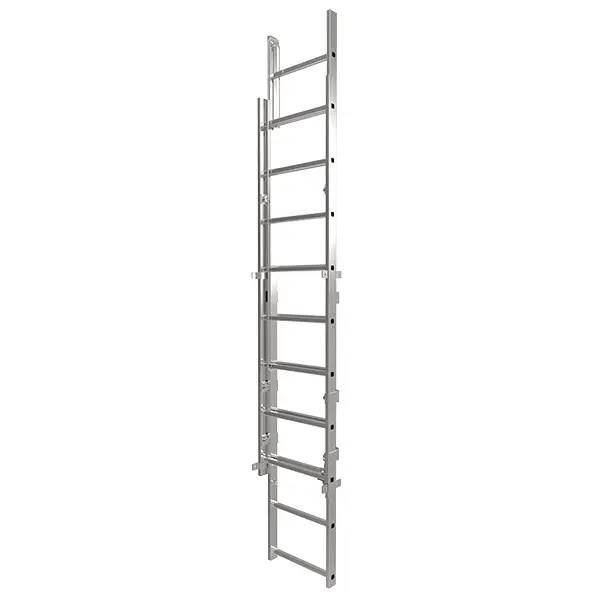

Ladder connection
The ladders can be tailored to meet the specific requirements and preferences of our customers.

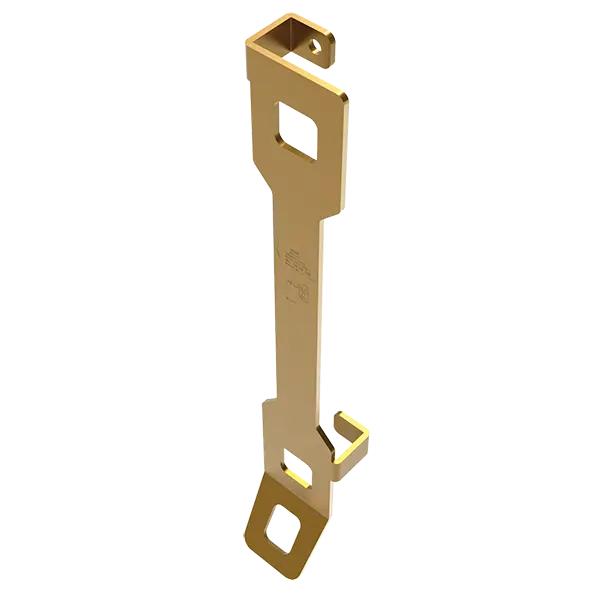

Ladder fixing
We provide a diverse range of brackets and connectors that can be customized in accordance with customer specifications, ensuring that the aluminum ladder can be securely fastened and stabilized.

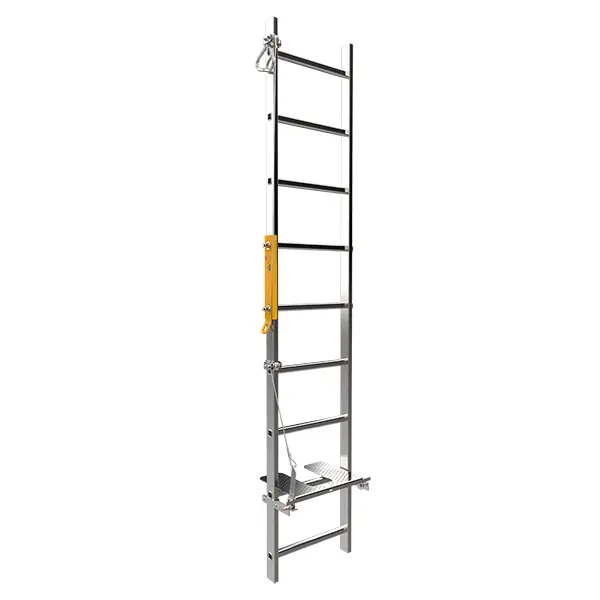

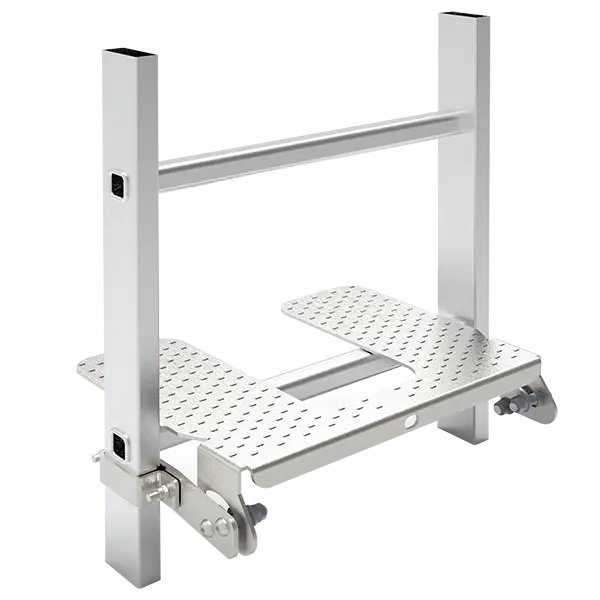

Resting Platform
Intermediate ladder platforms can be installed at any rung of the ladder to serve as resting spots for technicians while they climb towers. These platforms can be effortlessly folded in and out, thereby enhancing the overall safety level within the tower.
Key Features
High Durability
The ladder's high-strength aluminum alloy undergoes an anodizing surface treatment, which significantly enhances its durability by improving its resistance to corrosion and wear.

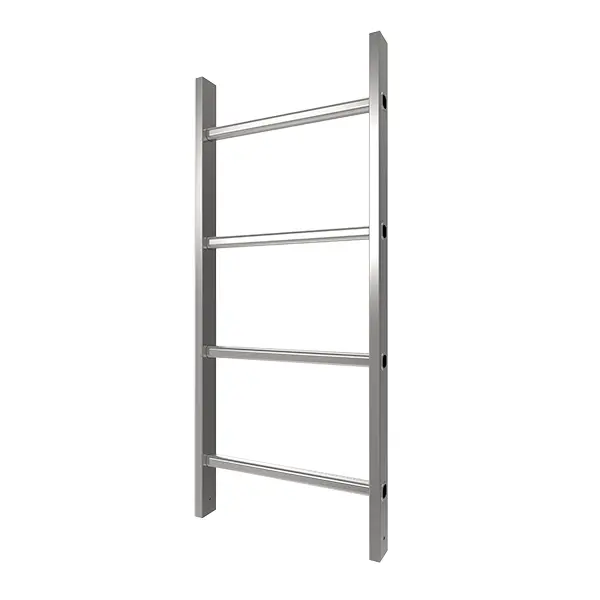

Customizable
The maximum length of a single section of 3S Lift's aluminum ladder measures 5880 mm, and these ladders can be tailored to meet the unique requirements of our customers.
Combine with Climb Auto System or Service Lift
Our aluminum ladders can be utilized independently or in conjunction with a 3S Lift guide rail to install either a Climb Auto System or a Service Lift.

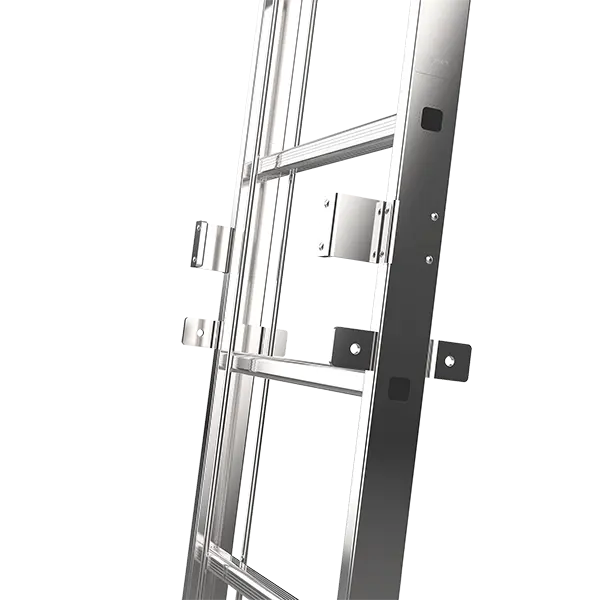

Ladder Mounting
The mounting supports designed for the 3S Lift ladder securely fasten non-foundation ladders to the internal walls of towers. We provide a diverse range of brackets and connectors, all of which can be customized to meet the specific needs and preferences of our customers.
Specifications
General width specifications |
470 / 490 / 520 / 575 mm |
Ladder width |
300 mm - 1000 mm (can be customized) |
Standard ladder section length |
5880 mm |
Standard rung spacing |
280 mm |
Rung specifications |
30 x 30 mm |
Stile specifications |
60 x 25 / 72 x 25 / 74 x 25 mm |
Standard |
EN131-2 ; EN ISO 14122 ; DIN 18799 ; AS 1657 ; ANSI-ASC A14.3 ; |
Certification |
CE |
