Climb Auto System: Automated Climbing in Wind Turbine Tower Solutio

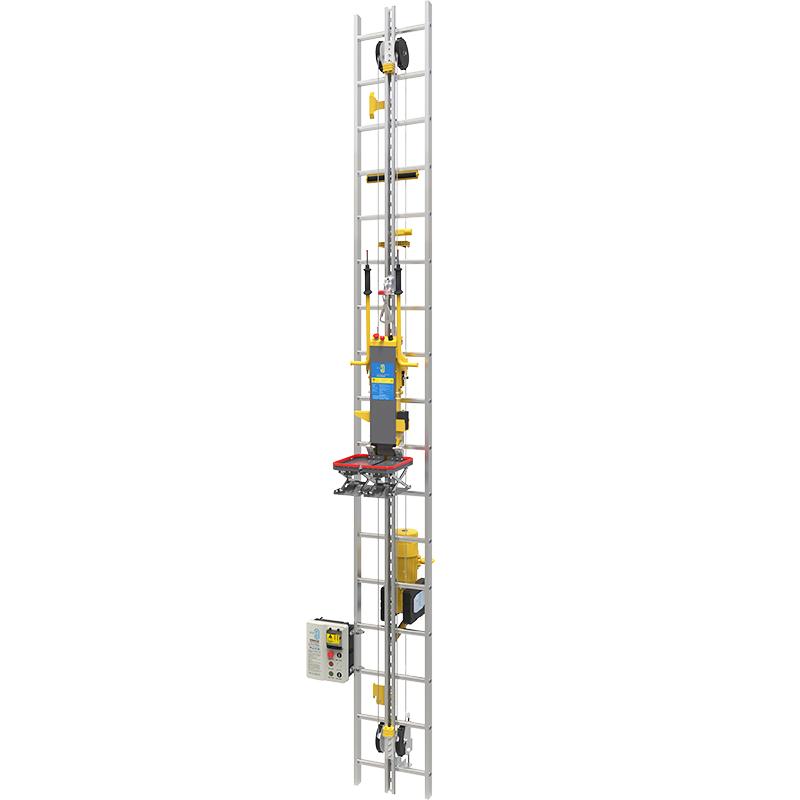

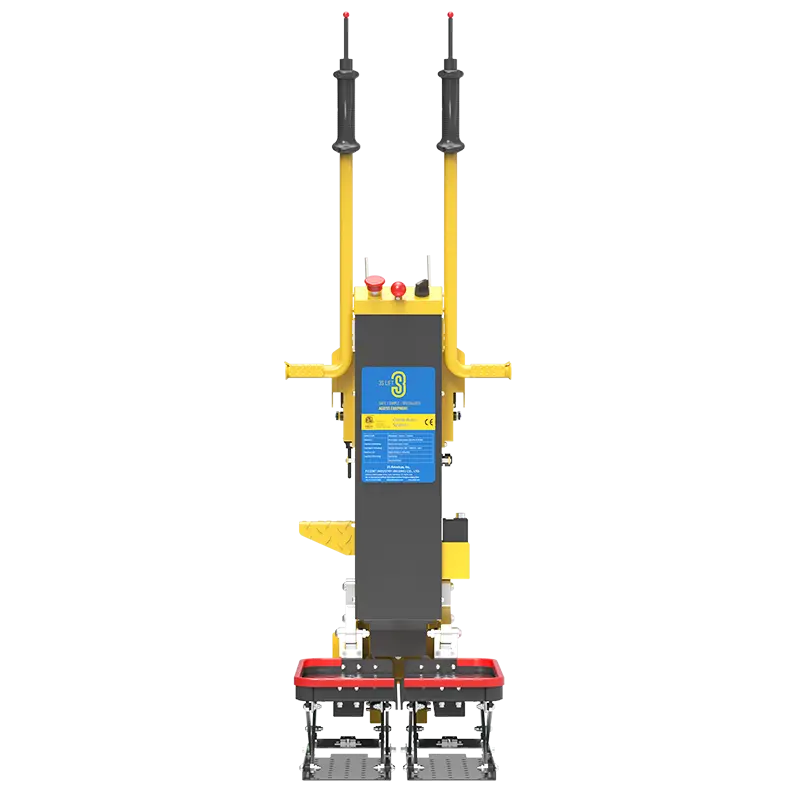

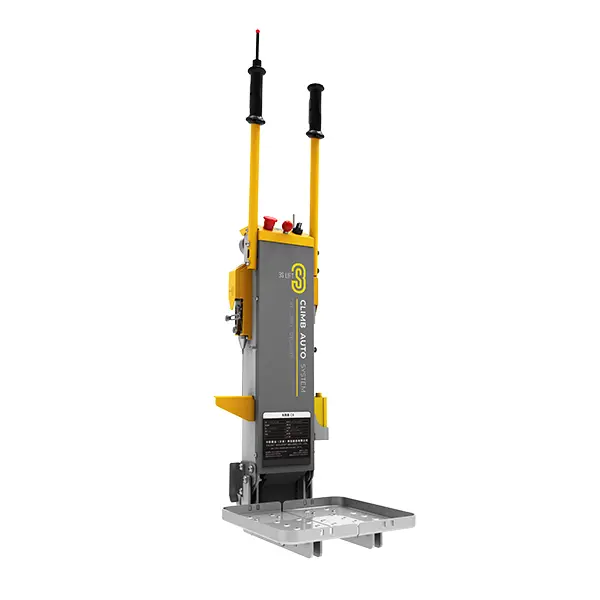

No more arduous climbing tasks are necessary thanks to the groundbreaking 3S LIFT Climb Auto System. This remarkable ladder-mounted climber, specifically engineered for single-technician operation, offers an efficient and secure means of transporting both personnel and necessary equipment to elevated locations. By utilizing this system, the need for manual climbing is completely eliminated. Furthermore, technicians are empowered to swiftly ascend to the top of a wind turbine in an astonishingly short span of just 5 minutes, all while experiencing minimal physical exertion—in fact, without breaking a sweat. This transformative technology revolutionizes the way maintenance and repair work is conducted in the wind energy industry.

    Video

    product description

    Top Sheave

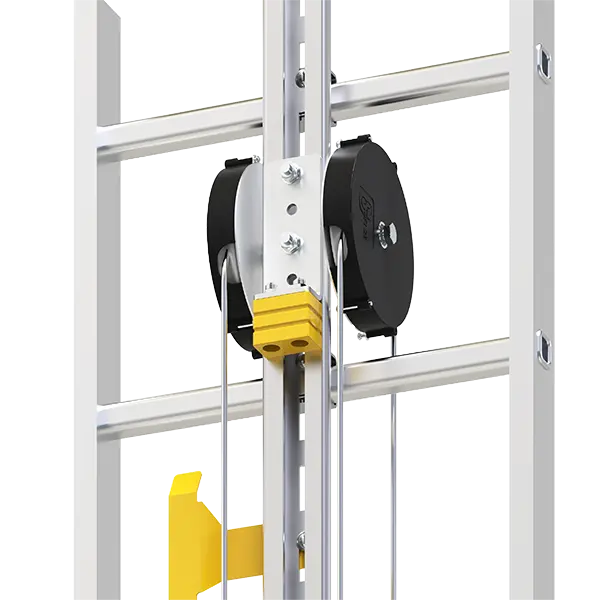

    Top Sheave

    The compact design of the top sheave enables the CAS car to access the highest platform with ease.

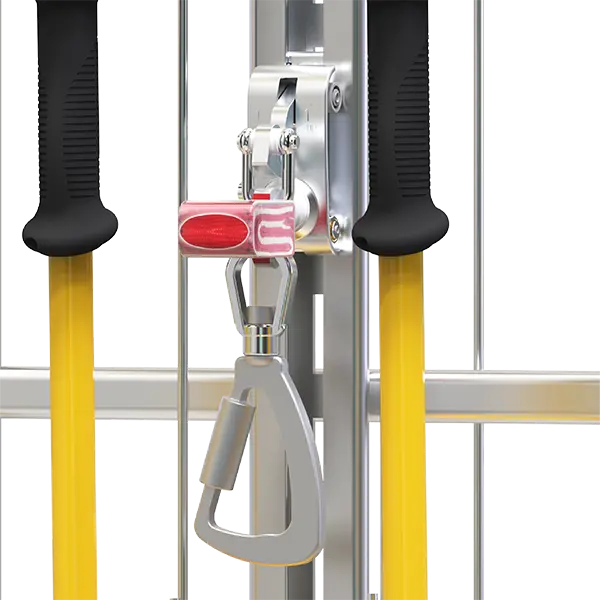

    Operator's personal fall arrester

    Operator’s Personal Fall Arrester

    The fall protection system of the CAS is independent from the operator’s fall arrester.

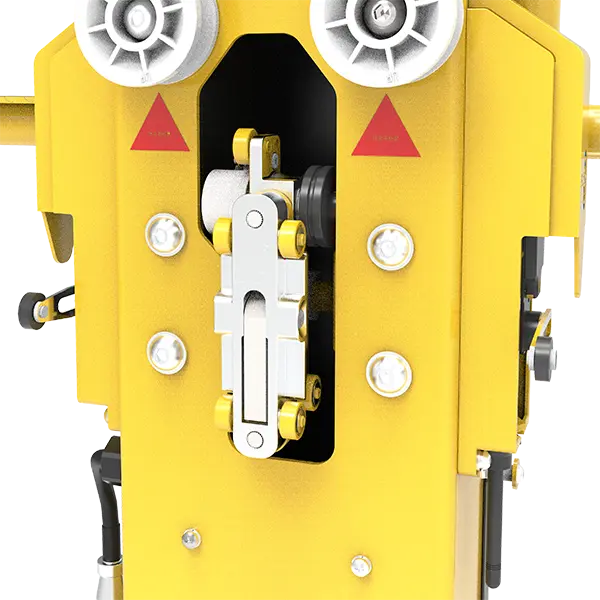

    Climb Auto System’s Fall Protection Device

    Climb Auto System’s Fall Protection Device

    Redundant fall protection guarantees the safety of personnel and equipment.

    Control Cabinet

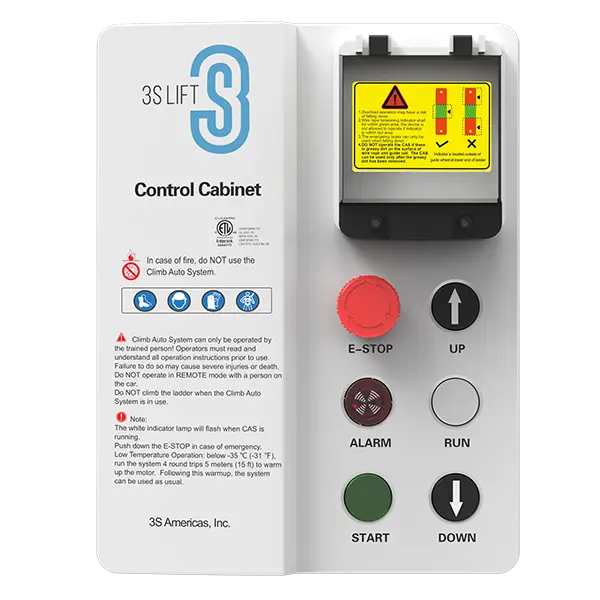

    Control Cabinet

    Located down-tower, the control cabinet is used to power the system up and down. It can also be used to operate the CAS car remotely.

    CF-120E

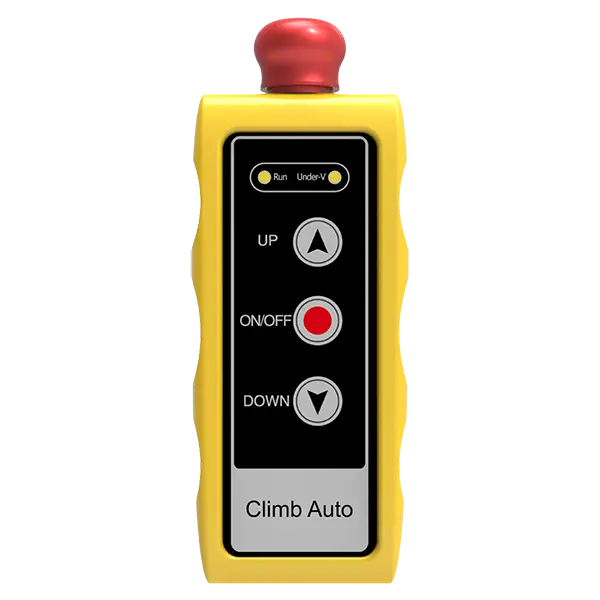

    Remote Control

    Remote Control

    The convenient remote control feature allows technicians to call the car to their position in the tower or send equipment to a co-worker on another platform.

    Two-Handle Start-Up Switch

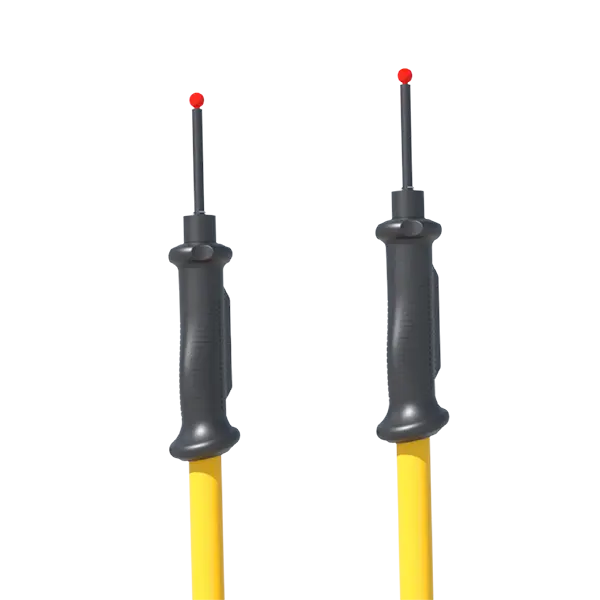

    Two-Handle Start-Up Switch

    To use the CAS car, the operator must press and hold the switches on both handles simultaneously.

    Collapsible Footboards

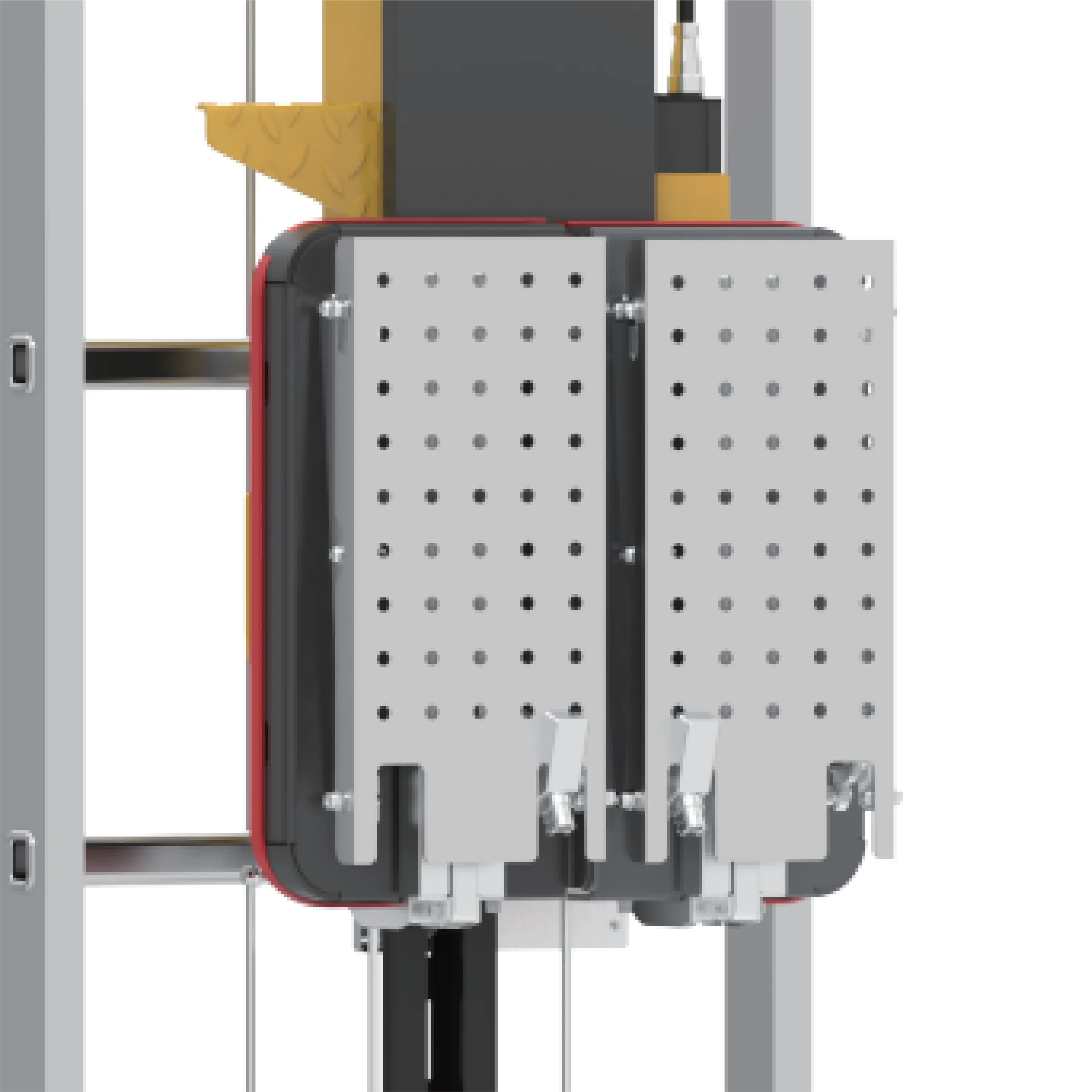

    Collapsible Footboards

    The collapsible footboards enable rapid evacuation in case of emergency.

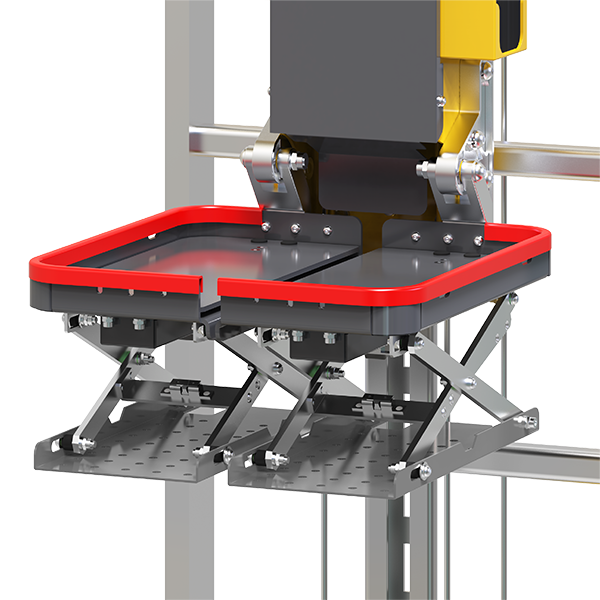

    Bottom-Sensing-Panel

    Bottom Sensing Panel

    When coming in contact with an obstacle, the panel is compressed and the sensor is triggered. This immediately stops the CAS car, thus preventing collision.

    Key Features

    Compliant with CE, ETL, UL, and OSHA standards

    Compliant with CE, ETL, UL, and OSHA standards

    Independent Fall Protection System

    Independent Fall Protection System

    Triple Control System

    Triple Control System

    Overspeed Lock-Up Mechanism

    Overspeed Lock-Up Mechanism

    Variable Frequency Drive

    Variable Frequency Drive

    Overload Detection Feature

    Overload Detection Feature

    Platform Approach Indication System

    Platform Approach Indication System

    Manual Emergency Brake

    Manual Emergency Brake

    Foldable Footpanels for Easy Evacuation

    Foldable Footpanels for Easy Evacuation

    Specifications

    Constructing materials

    Aluminum, steel

    Rated load

    Man load capacity:

    140 kg (310 lbs)

    Freight load capacity: 60 kg (132 lbs)

    Speed

    18 m/min

    Control method

    Frequency conversion

    vectorial technology

    Rated voltage

    Single / 3 phase, AC, 220 V,

    50 Hz / 60 Hz (400 V optional)

    Dimensions

    468 x 380 x 1410mm

    Certification

    CE, ETL, UL and OSHA compliant
