Smart Key
0102030405

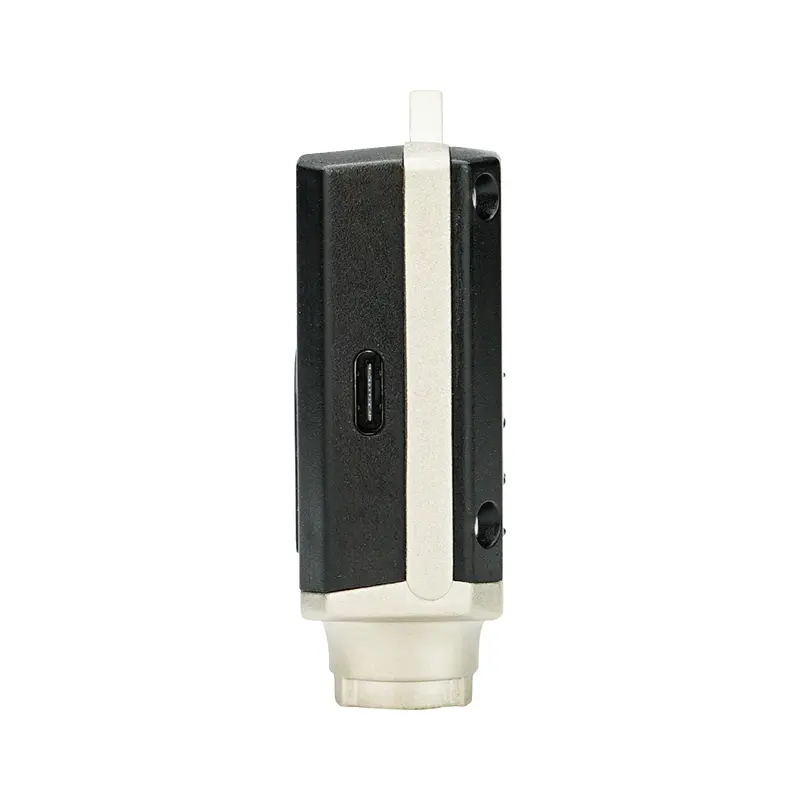

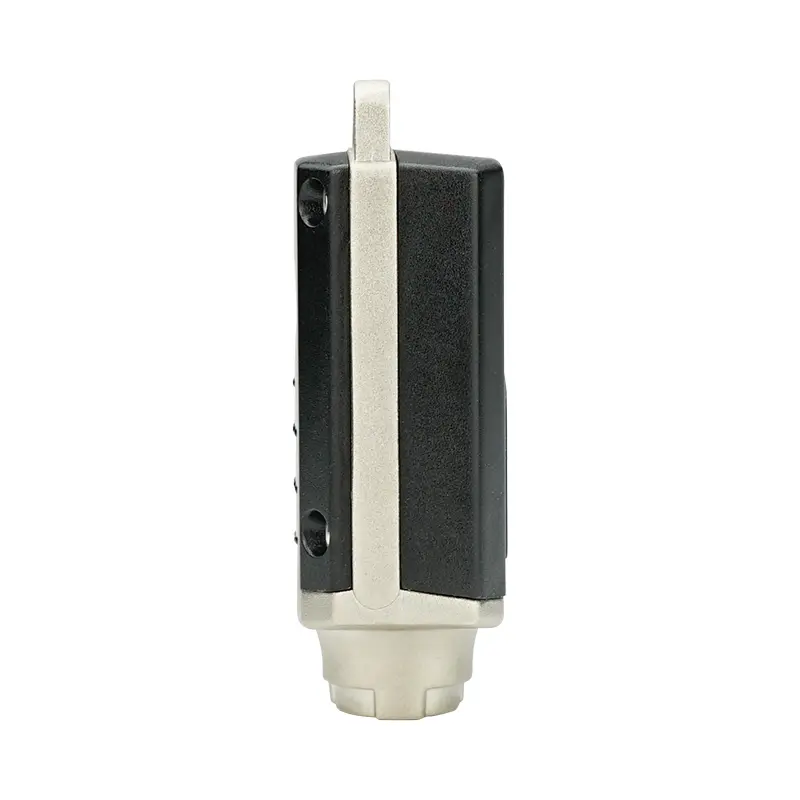

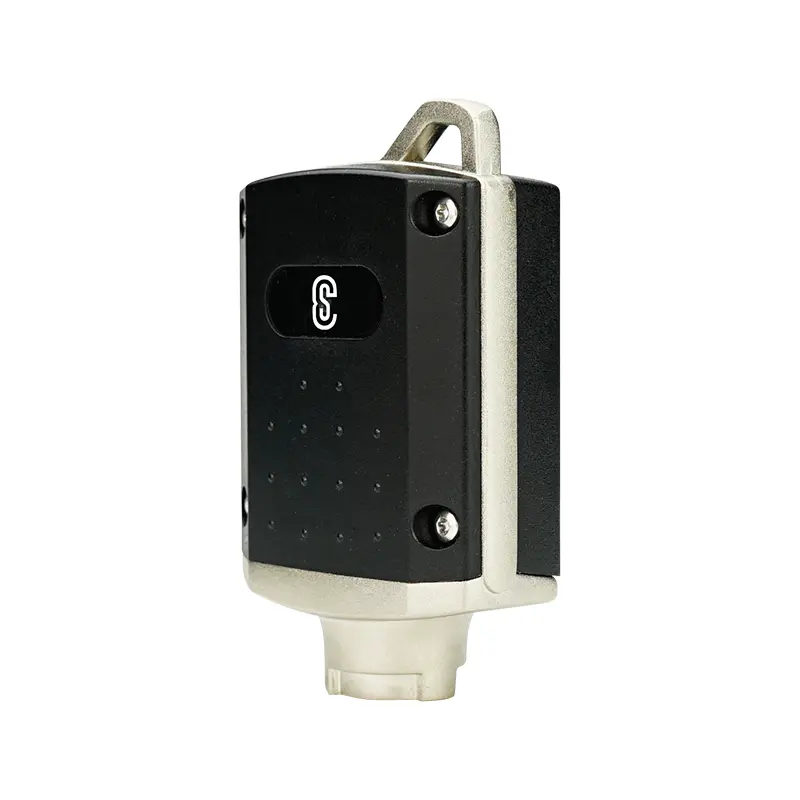

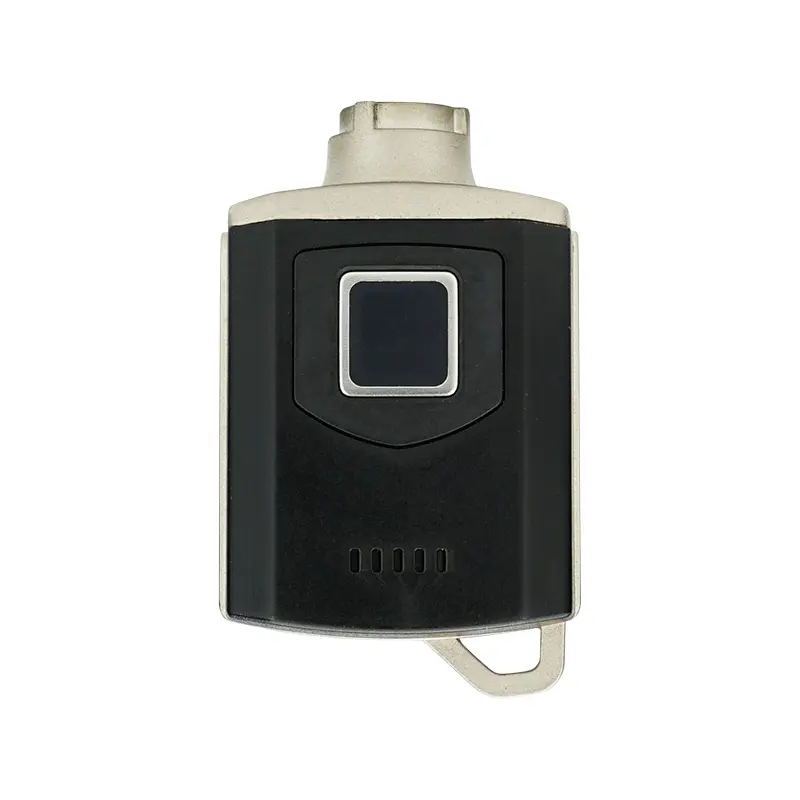

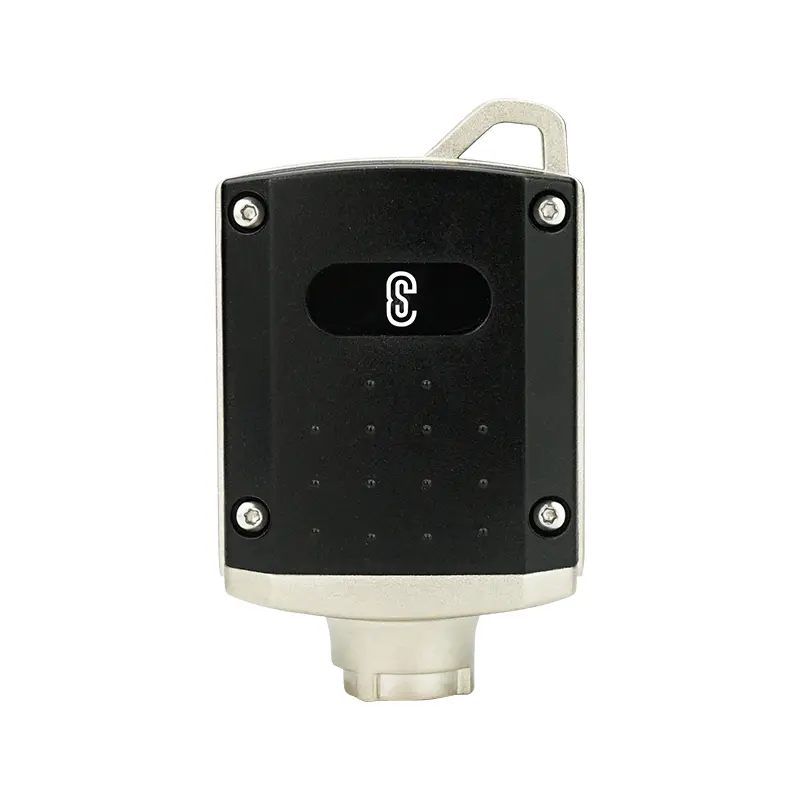

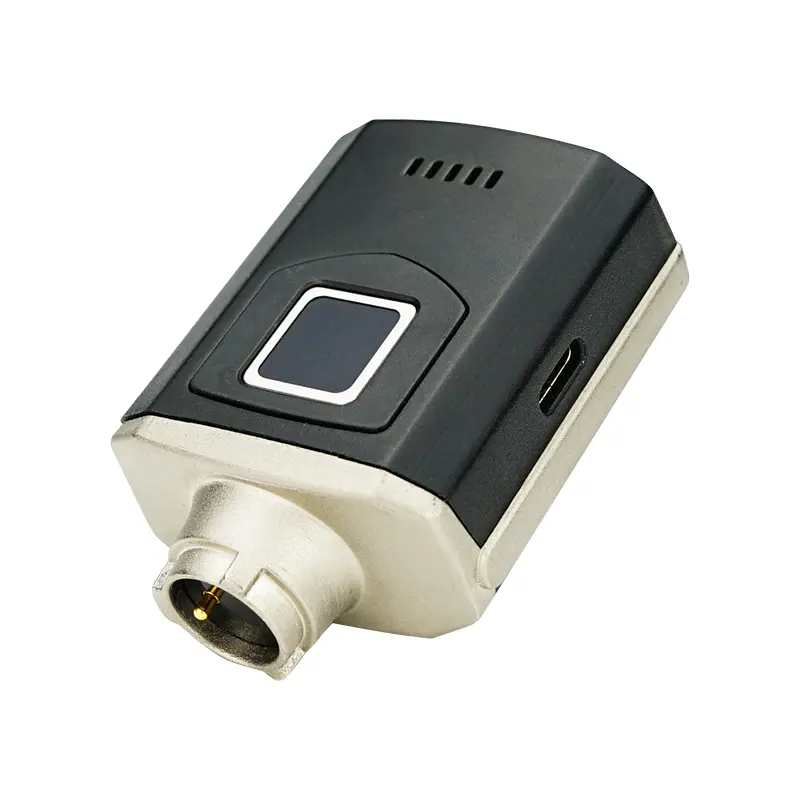

3S Smart key - Fingerprint key
Video
Key Features
The smart key features both voice prompts and light indicators, offering real-time notifications of various key statuses. The key communicates via infrared wireless data transmission, with AES-256 encryption ensuring high-level data security. Powered by a single-point contact, the smart key works in conjunction with the electronic lock cylinder to detect both lock and unlock states. Locking and unlocking actions must be performed with the key, and manual locking without the key is not permitted. Supports fingerprint recognition, confirming personnel information via fingerprint, and enabling remote authorization for locking and unlocking.
Specifications
| Product Model | 3S-WLA-BK01 |
| Operating Indicator | Voice + three-color RGB indicator |
| Operating Mode | Blank/ Acquisition/ Initialization/ Lock/ Unlock/ Task/ Emergency/ Blacklist |
| Safety Certification | Supports AES256 wireless communication encryption and is compatible with SCA (State Cryptography Administration) algorithms. |
| Authorization Management | Up to 100 date ranges can be downloaded, with each date range supporting up to 100 time ranges. |
| Fingerprint capacity | 100 sets |
| Bluetooth Communication | BLE4.0 |
| Storage Capacity | 60000 entries |
| Battery Capacity | 600 mAh (4 000 lock and unlock cycles) |
| Charging Time | 2 hours |
| Low battery warning | The red indicator light will flash two times, accompanied by a voice prompt: "Low battery, please charge.” |
| Electrostatic Discharge Protection | 8 KV contact ESD/15 kV non-contact ESD protection |
| Operating Condition | Temperature (-20°C to 70°C) Humidity (20% to 97%) |
| Ingress Protection Rating: | IP65 |
| Dimensions | 42mm*23mm*68mm |
Product Details
