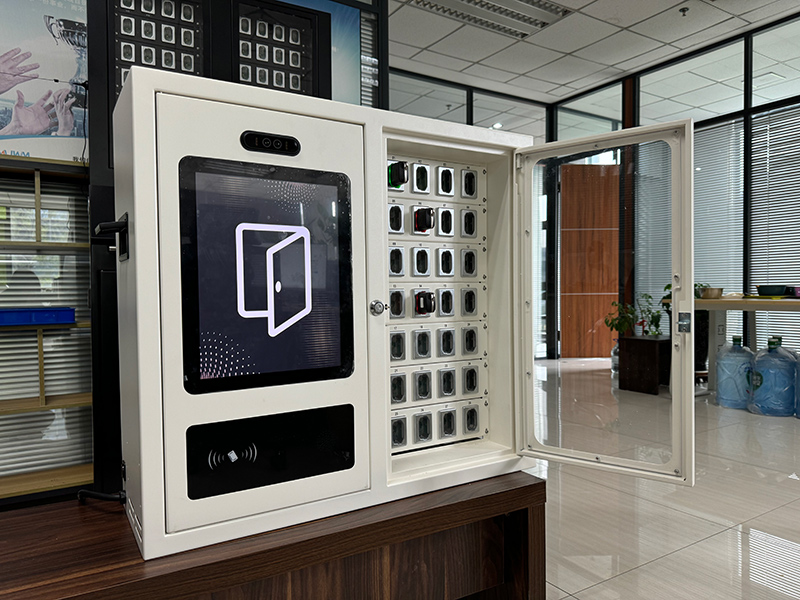

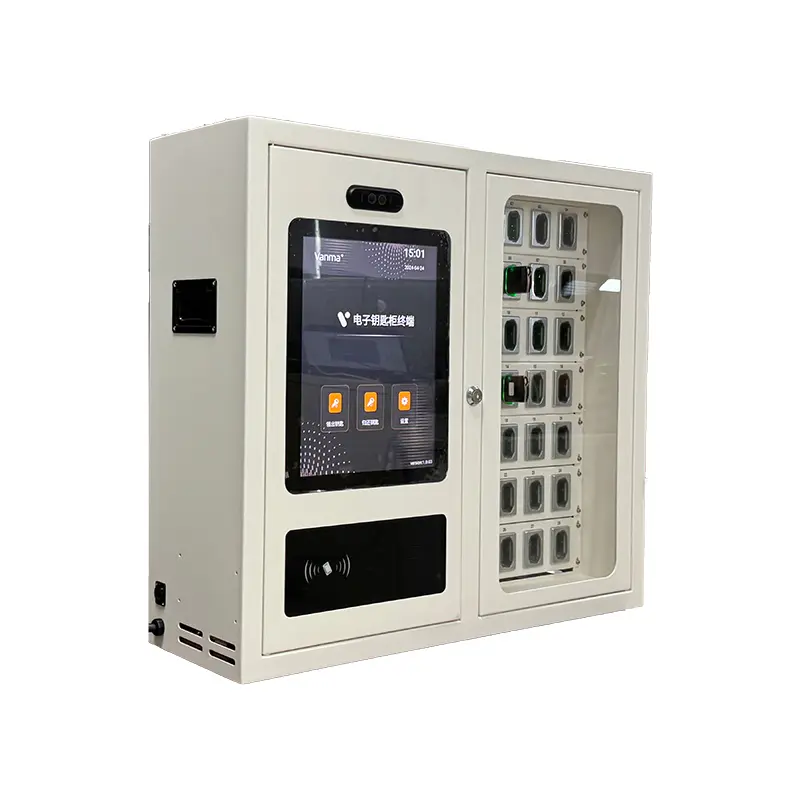

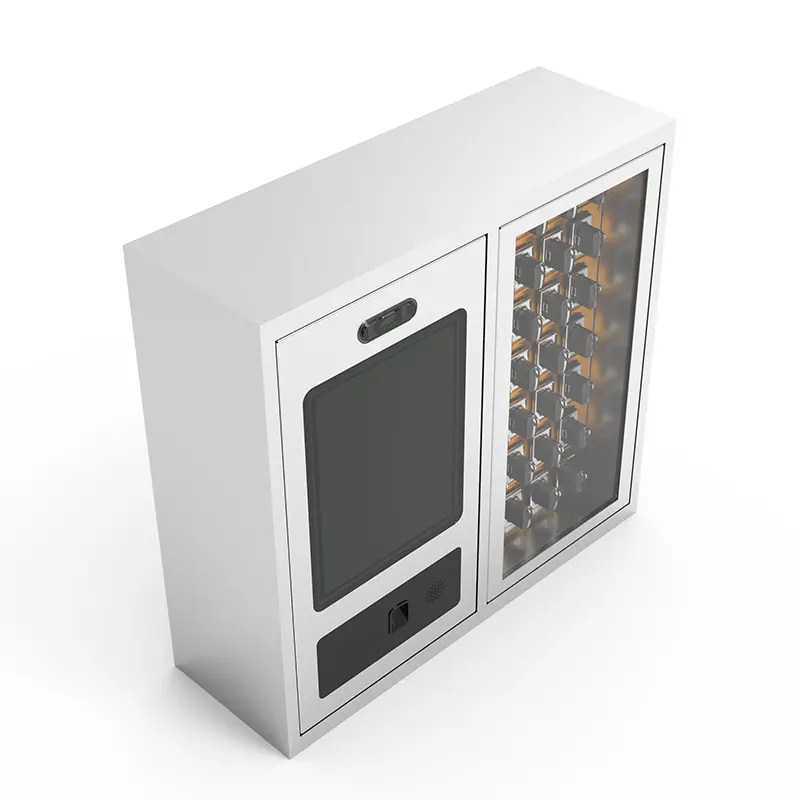

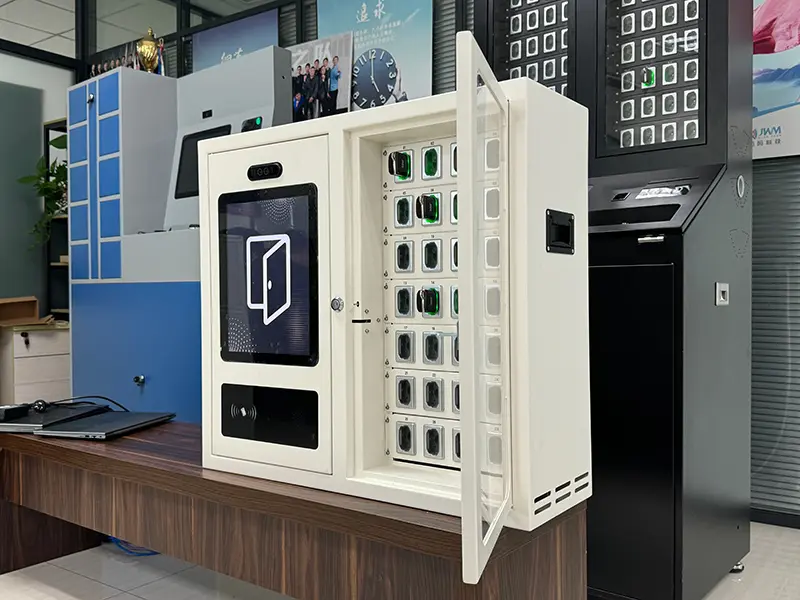

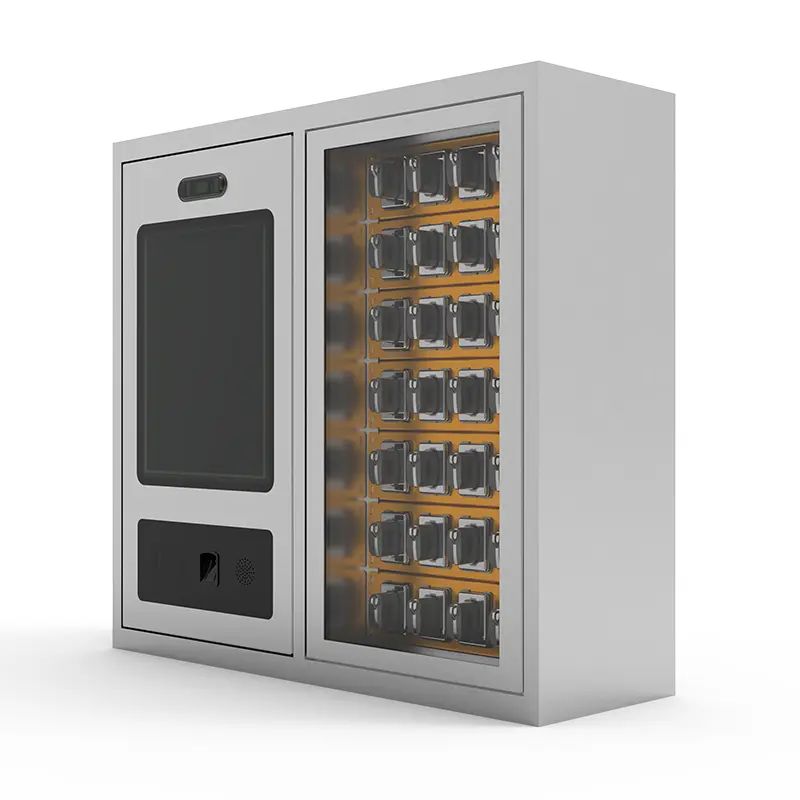

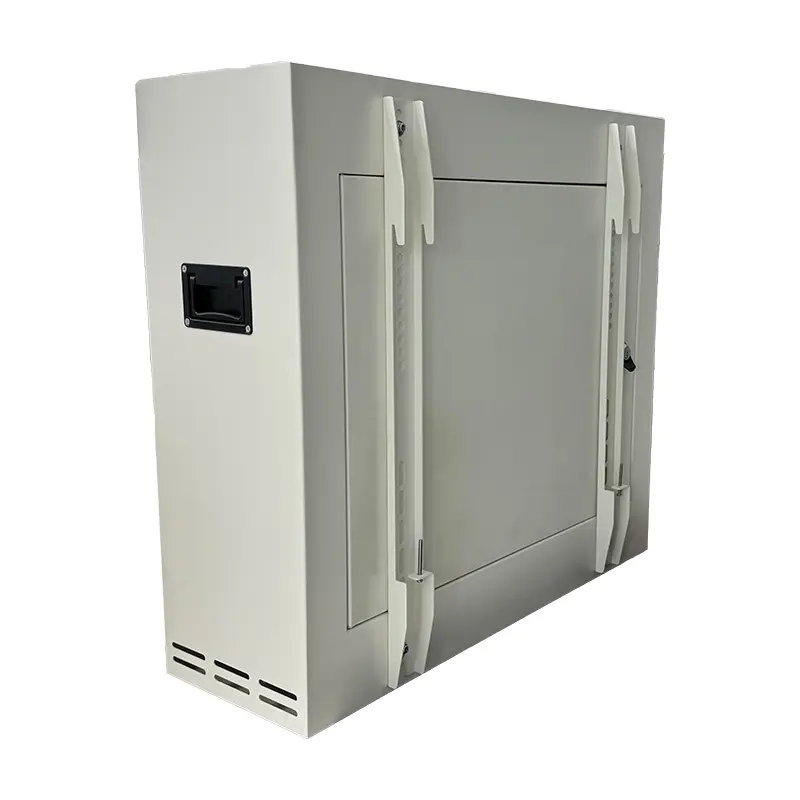

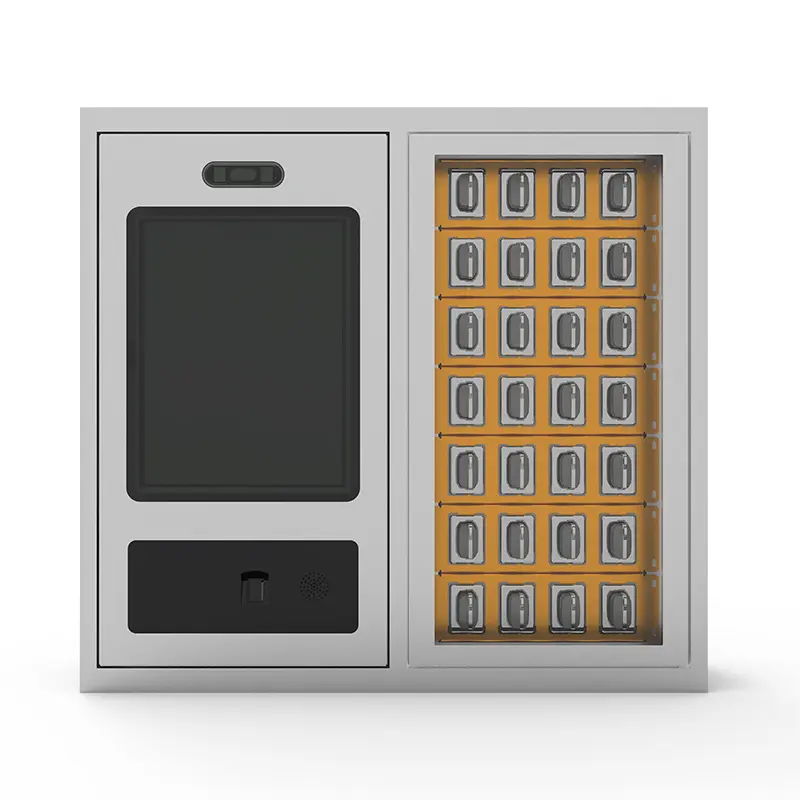

3S Smart key cabinet - Wall-mounted
Video
Key Features

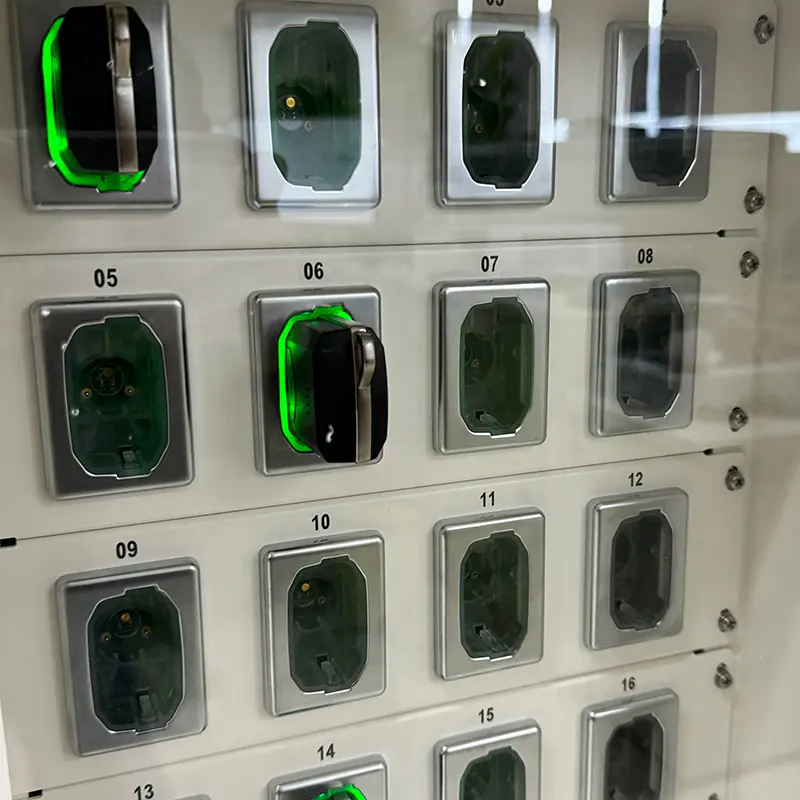

The smart key cabinet supports the collection of lock IDs. When a key is inserted back into the host, it automatically uploads data and charges the key, with red and blue light indicators. It can manage up to 28 keys simultaneously, and the status of each key can be monitored in the system. Unauthorized electronic keys cannot be removed from the host, while authorized keys will automatically pop out. After being reinserted, keys are automatically returned and registered.
Specifications
| Product Model | 3S-WLA-EKM28 |
| Key number | 28 |
| Issuance and Return Method | IC card/fingerprint/face Id/password |
| Touchscreen | 15-inch touch liquid crystal screen (customizable) |
| Operating System | Android 11 |
| Communication interface | Ethernet RJ45, WIFI |
| Indicator | Automatic charging, in position, communication, authorization |
| Issuance and Return | Automatic authorized release for issuance, automatic locking upon return, automatic record upload. |
| Lock hole service life | 1 million cycles |
| Body Material | 1.5mm cold-rolled steel plate |
| Surface Treatment | Electrostatic powder coating |
| Cabinet Door Material | 4 mm acrylic, 1.5 mm metal door |
| Structure Dimensions | 690mmx740mmx250mm |
| Weight | 40 kg |
| Operating Voltage | DC12V |
| Operating Condition | Temperature: -30°C to 70°C Humidity: 5% to 95% |
