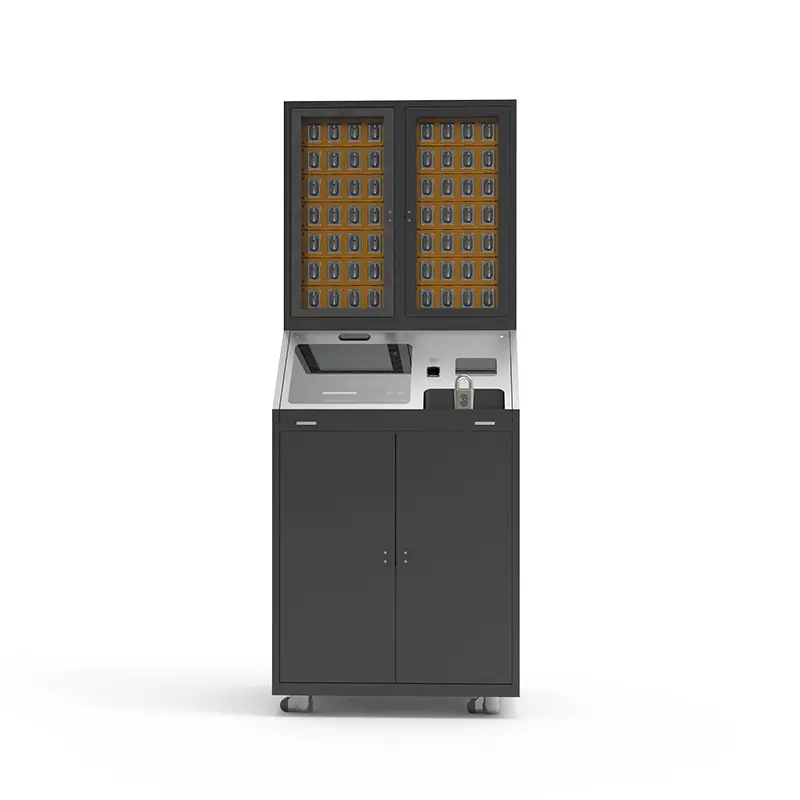

3S Smart key cabinet - Upright

The smart key cabinet provides centralized management for electronic key issuance and return, automatically uploads locking and unlocking records, and supports automatic key authorization, unlocking, and charging, with voice prompts for various status updates.

    Video

    Key Features

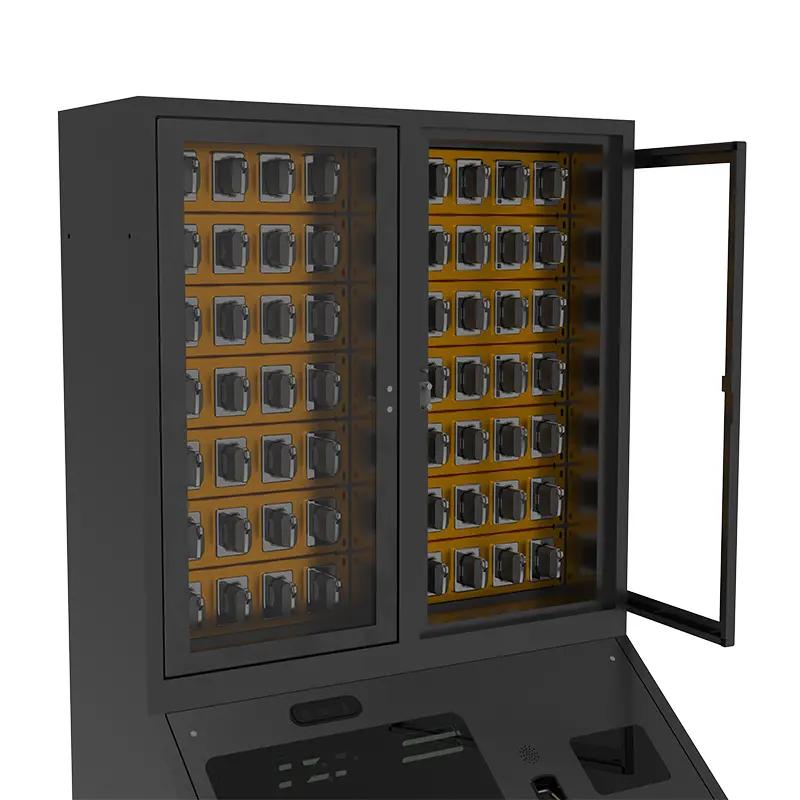

    The smart key cabinet supports the collection of lock IDs. When a key is inserted back into the host, it automatically uploads data and charges the key, with red and blue light indicators. It can manage up to 56 keys simultaneously, and the status of each key can be monitored in the system. Unauthorized electronic keys cannot be removed from the host, while authorized keys will automatically pop out. After being reinserted, keys are automatically returned and registered.

    Specifications

    Product Model 3S-WLA-EKM56
    Key number 56
    Issuance and Return Method IC card/fingerprint/face Id/password
    Touchscreen 15-inch touch liquid crystal screen (customizable)
    Operating System Android 11
    Communication interface Ethernet RJ45, WIFI
    Indicator Automatic charging, in position, communication, authorization
    Issuance and Return Automatic authorized release for issuance, automatic locking upon return, automatic record upload.
    Lock hole service life 1 million cycles
    Body Material 1.5mm cold-rolled steel plate
    Surface Treatment Electrostatic powder coating
    Cabinet Door Material 4 mm acrylic, 1.5 mm metal door
    Structure Dimensions 800mmx600mmx1800mm
    Weight 150 kg
    Operating Voltage DC12V
    Operating Condition Temperature: -30°C to 70°C Humidity: 5% to 95%

    Product Details

    3S-Passive-smartLock-and-Control-System-_013S-Passive-smartLock-and-Control-System-_023S-Passive-smartLock-and-Control-System-_033S-Passive-smartLock-and-Control-System-_043S-Passive-smartLock-and-Control-System_05
