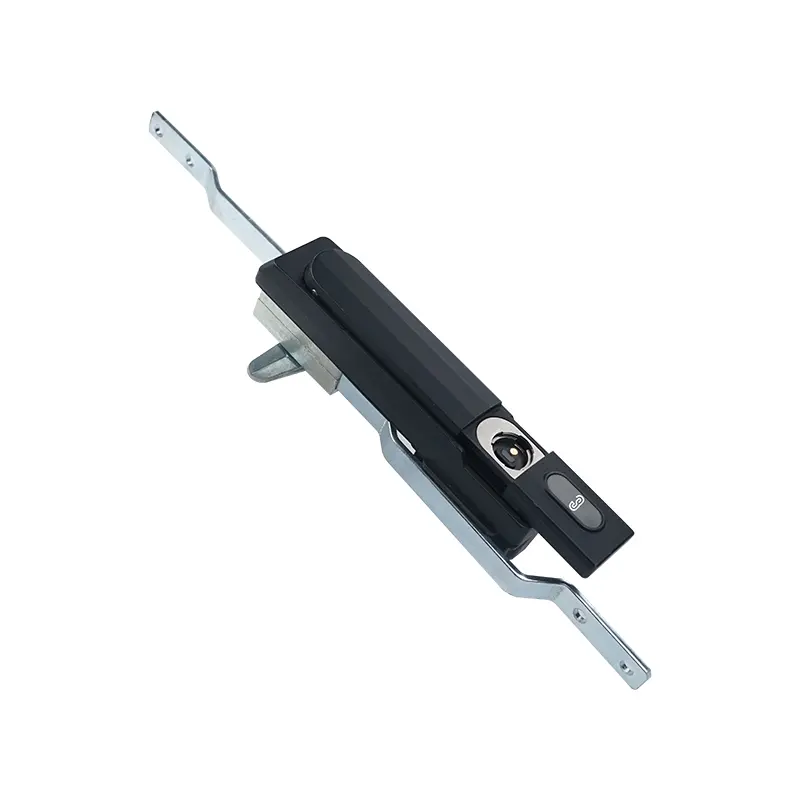

3S Passive smart lock - Cabinet lock (6).jpg

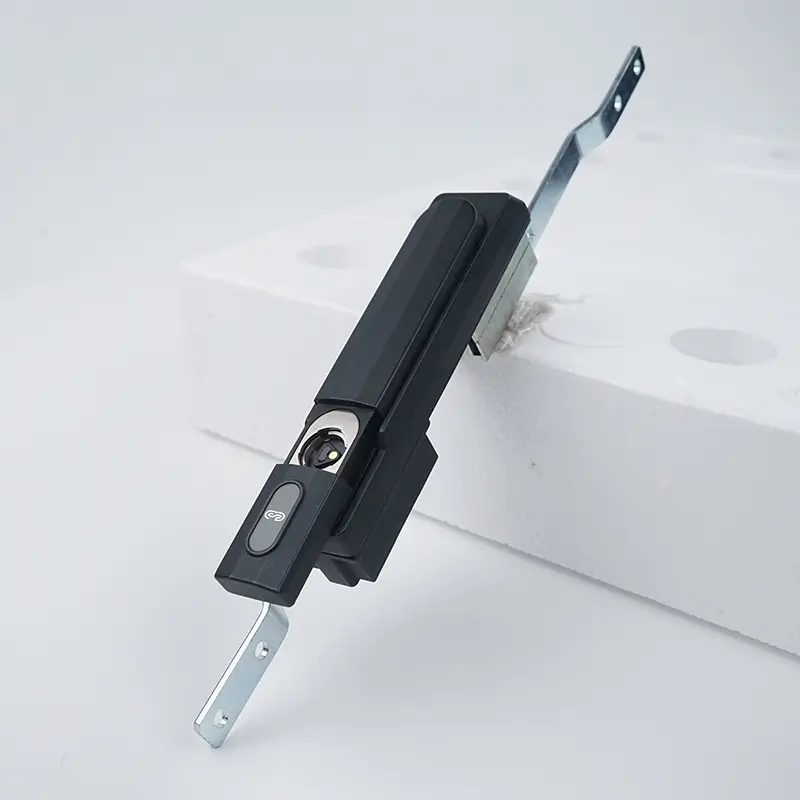

3S Passive smart lock - Cabinet lock (5).jpg

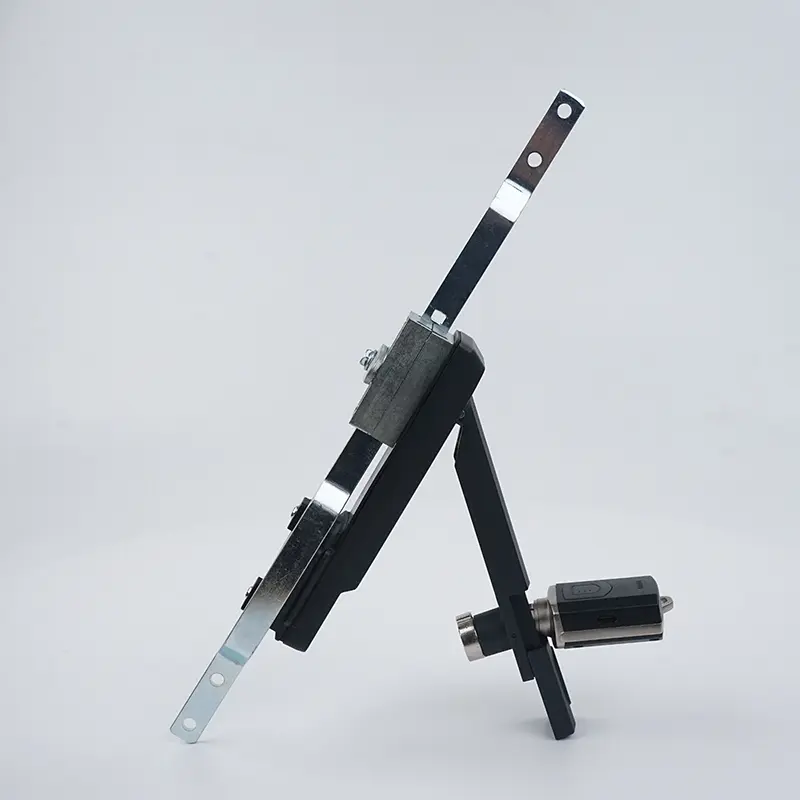

3S Passive smart lock - Cabinet lock (7).jpg

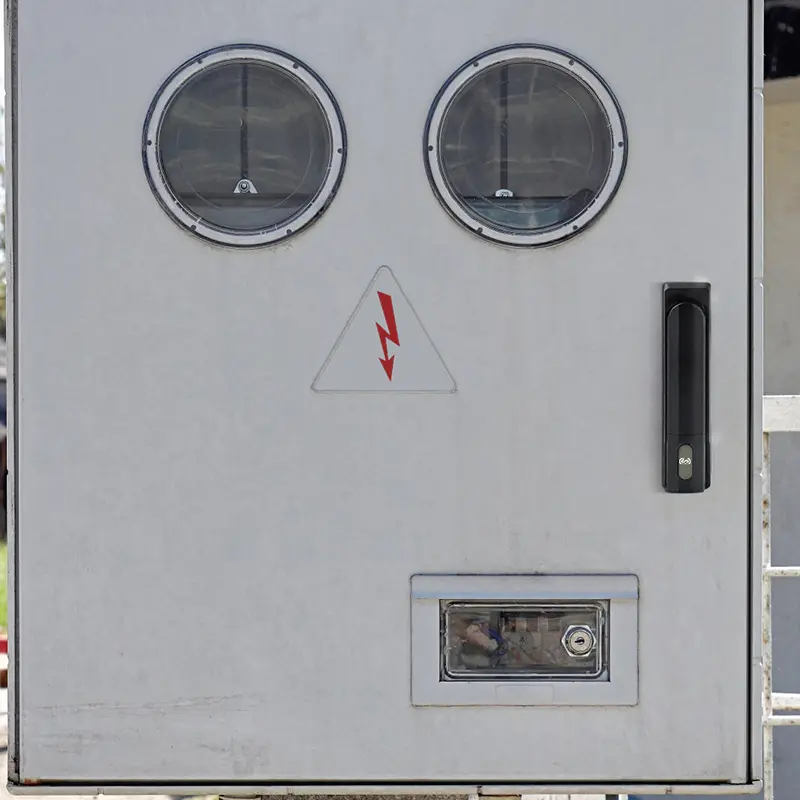

3S Passive smart lock - Cabinet lock (9).jpg

3S Passive smart lock - Cabinet lock

The passive smart lock has the following features: no power supply, no wiring, no maintenance, and is suitable for various environments. It retains the usage habits of mechanical locks while incorporating the characteristics of a passive electronic lock core. The installation and setup of the lock are simple, and lock access permissions can be freely matched according to management requirements.

product details

Video

Key Features

The lock cylinder is passive, and both the lock body and lock cylinder are made of 304 stainless steel. The key communicates via infrared wireless data transmission, with AES-256 encryption ensuring high-level data security. Powered by a single-point contact, the electronic lock cylinder can detect both lock and unlock states. Locking and unlocking actions must be performed with the key, and manual locking without the key is not permitted.

Specifications

Product Model	3S-WLA-MS840L
Body Material	Zinc alloy
Cylinder material	SUS304 Stainless steel
Lock Body Structure	Applicable for left and right doors, with a 30 mm stroke of the lock rod latch.
Event Record	60 entries
Blacklist number	100 keys
Lcok Weight	785 g
Electrostatic Discharge Protection	8 KV contact ESD/15 kV non-contact ESD protection
Operating Condition	Temperature (-40°C to 85°C) Humidity (20% to 97%)
Ingress Protection Rating:	IP68
