3S LIFT SOFIT-Z3 Maintenance Platform

This innovative platform operates independently, relying on its own hoist and electrical drive system to manage the horizontal expansion and contraction of the tower structure. It smoothly traverses up and down along the vertical axis of the tower, enabling operators to effortlessly change the maintenance position as needed. Furthermore, the platform possesses the capability to hover freely at any desired height, providing unparalleled access for work at various levels. The entire system is fully self-contained, eliminating the need for any external assistance or additional equipment. This self-sufficiency not only enhances the platform's flexibility but also ensures a highly convenient and efficient working experience.

    Video

    product description

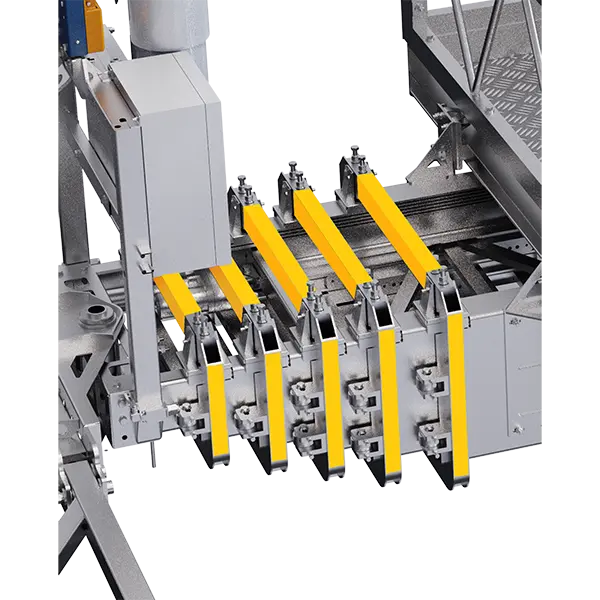

    Electric Drive Support System

    Electric Drive Support System

    With an extension length ranging from 1 to 18 meters, the system can be easily extended and contracted to reach and repair any position on the blade. This feature not only conserves manpower and material resources but also significantly enhances operational efficiency.

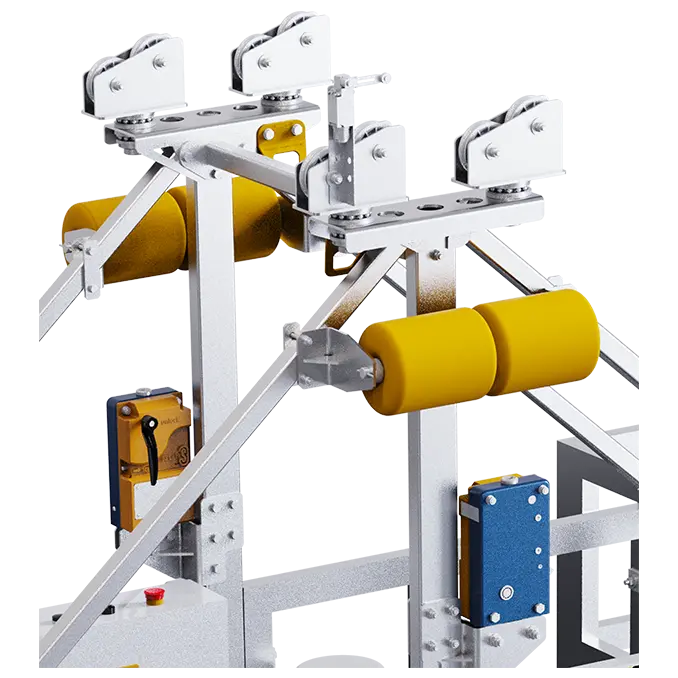

    Three Sets of Sponge Wall Roller

    Three Sets of Sponge Wall Roller

    Three sets of sponge wall rollers are positioned against the blade to safeguard it, ensuring that the platform's sponge wheels adhere to the blade during operation.

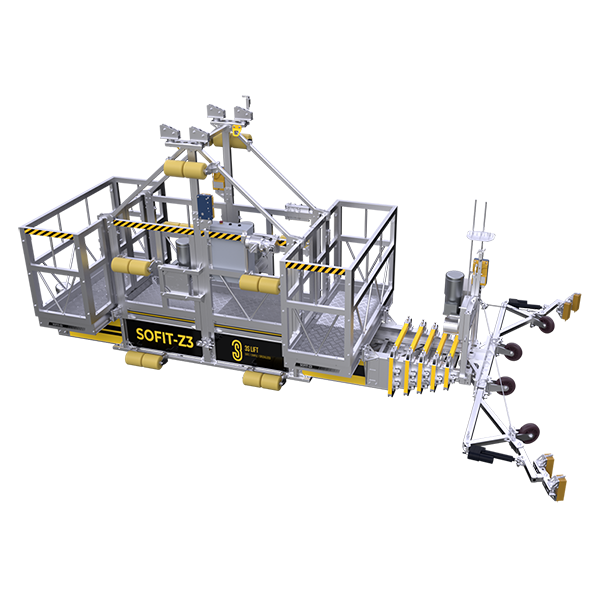

    main

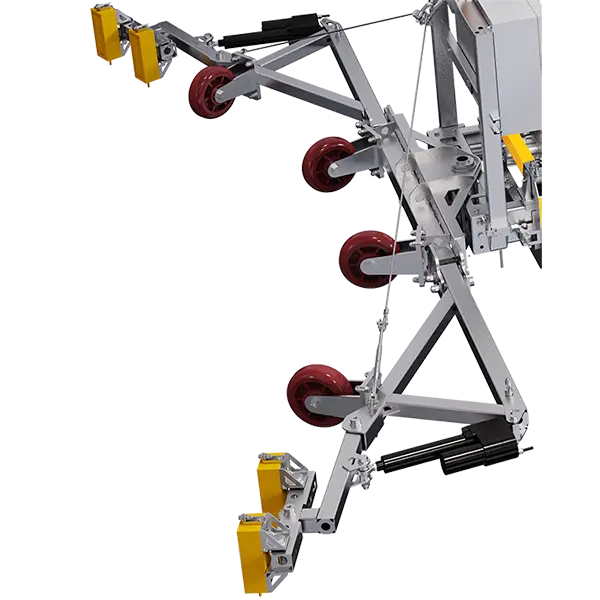

    Tower Clamping Device

    Tower Clamping Device

    Upon reaching the designated position, activate the clamping device to expand and securely clamp onto the tower tube. This ensures that the platform remains stable and reliable during horizontal displacement, effectively preventing any shaking or movement.

    Key Features

    stability

    This device features an exclusive domestic automatic leveling system equipped with a unique anti-tilt function to ensure stability.

    Flexible Fit

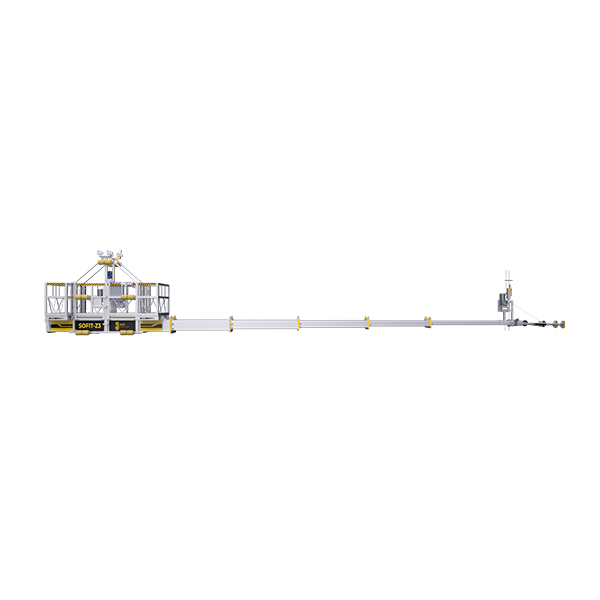

    The horizontal expansion range spans from 1 to 18 meters, with a horizontal swing maintenance range of ±15 degrees.

    flexible

    The flexible work platform can achieve 360-degree omnidirectional displacement for maintenance purposes.

    reliability

    The entire machine supports overall transportation without the need for disassembly, providing convenience and reliability.

    Specifications

    Model

     SOFIT-Z3

    Rated weight

     350 Kg

    Speed

     9 m/min

    Dimensions

     5.8 m ×2 m × 2.7 m

    Length

     1-18 m (customizable)

    Rated lifting force

     700 Kg

    Rated voltage

     7 KW/400 V

    Self-weight

     1300 Kg

    Capacity

     3 people

    Compliant with standard

     CE
