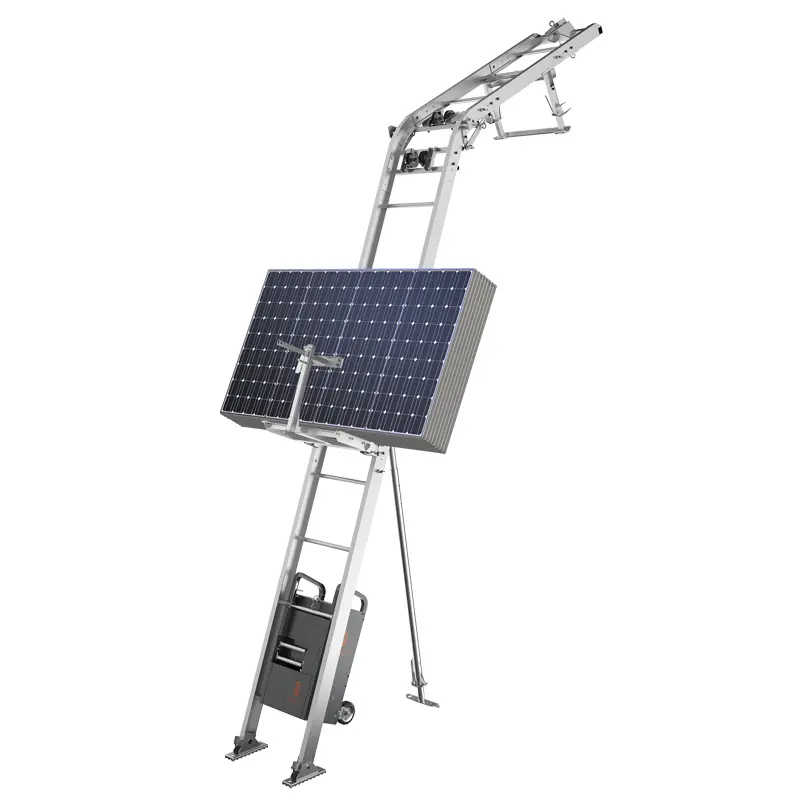

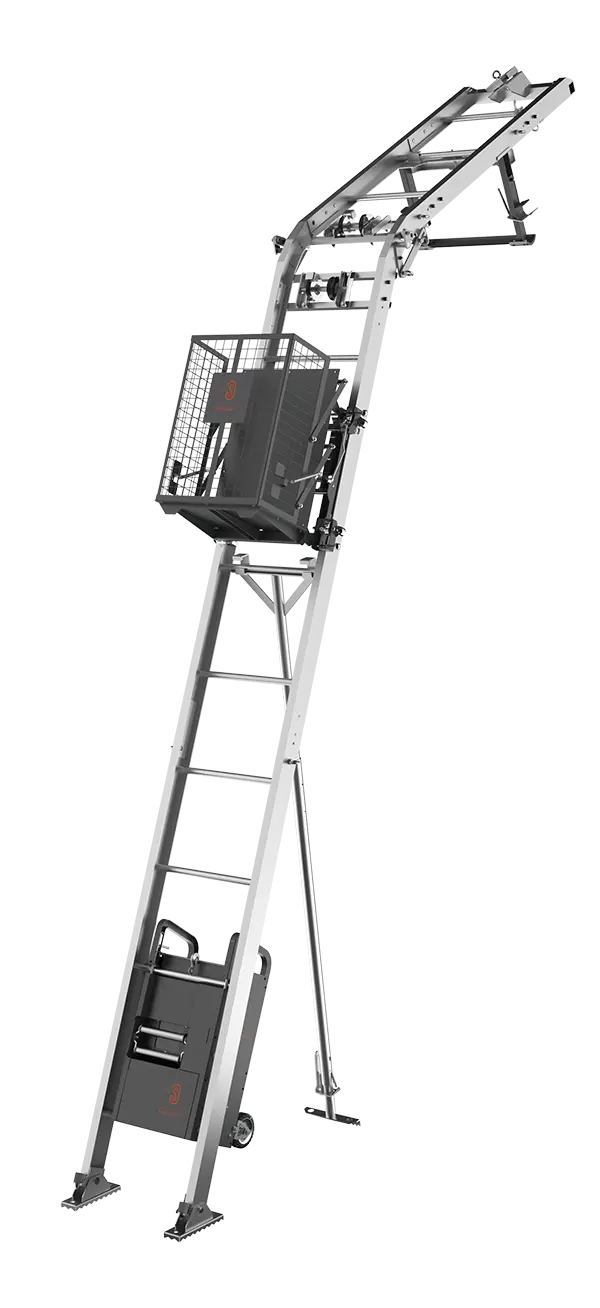

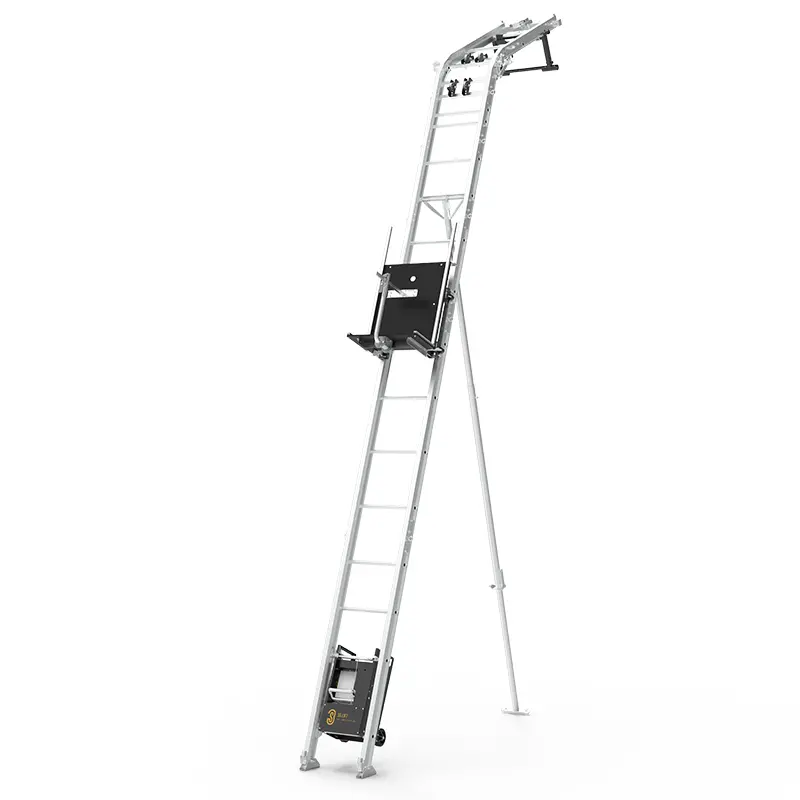

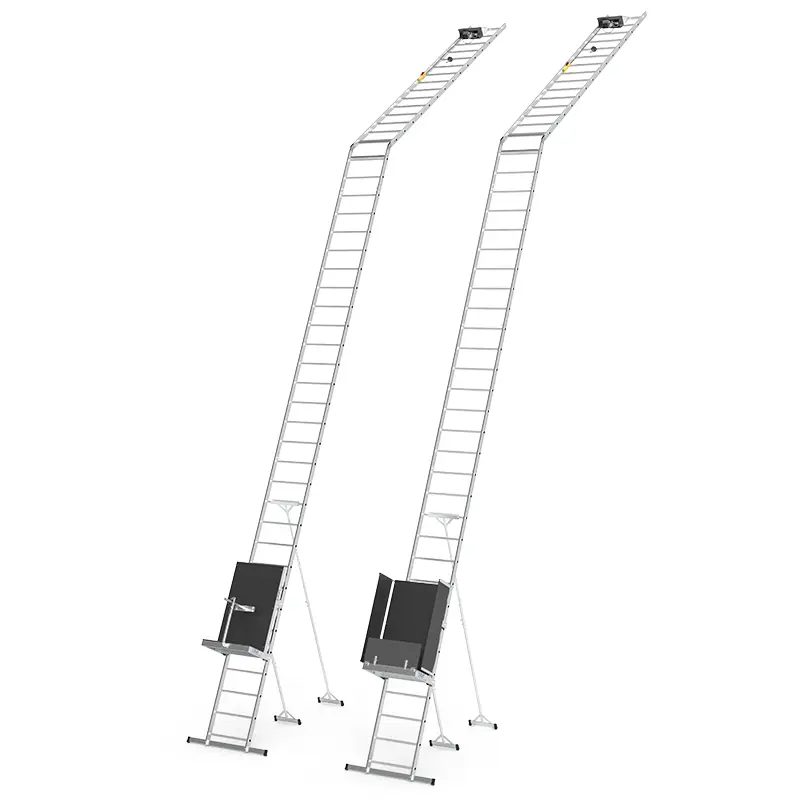

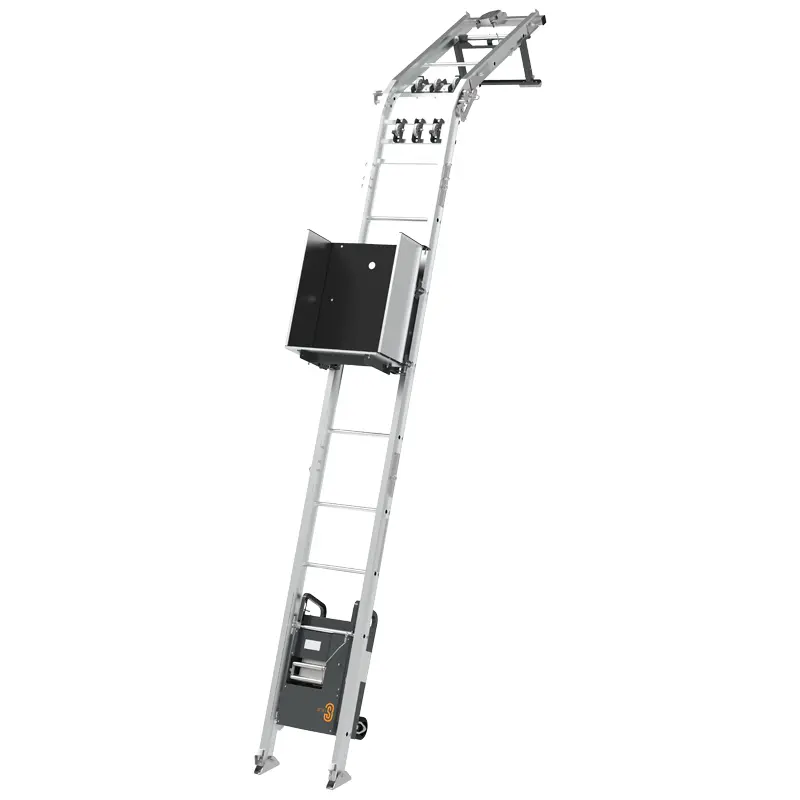

3S LIFT Ladder Guide PLUG-IN Ladder Hoist
Video
product description

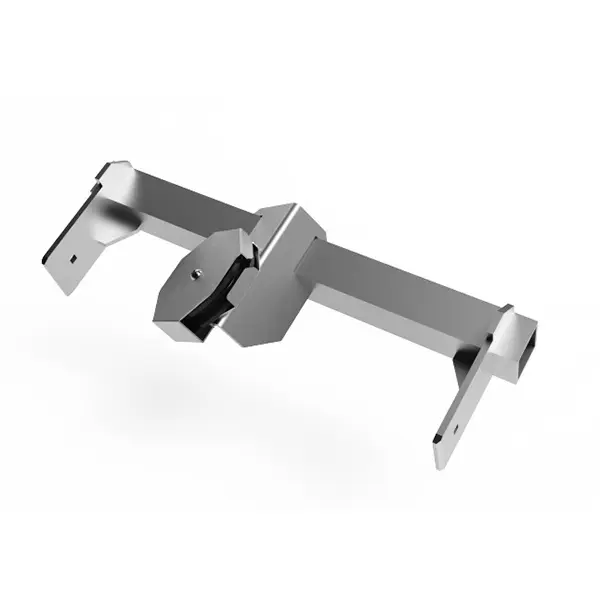

Rail Top Section
It features a steel wire rope reversing wheel that ensures the wire rope is securely prevented from falling.

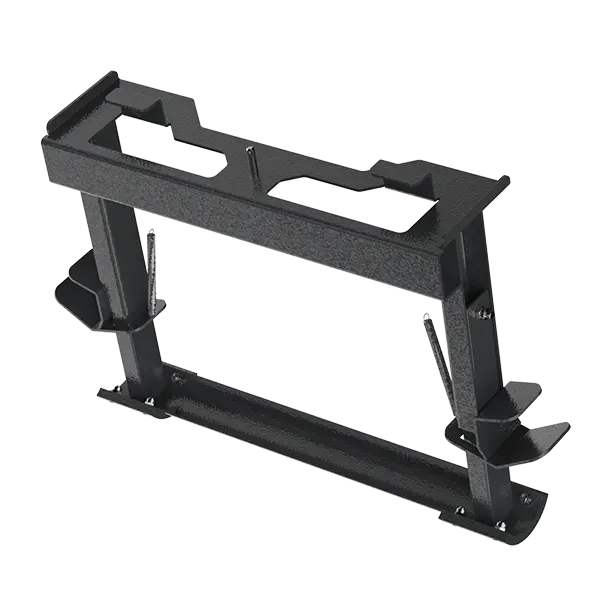

Roof Support Bracket
It provides support to the guide rails installed on the roof, ensuring stability and safeguarding the roof against potential damage.

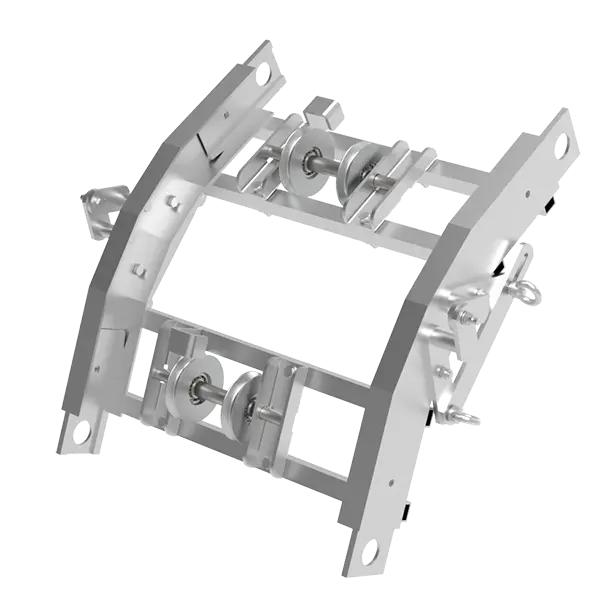

Knee Section
It allows for proper fitting of the rail to the roof or other inclined surfaces by enabling angle adjustments ranging from 20° to 42°.

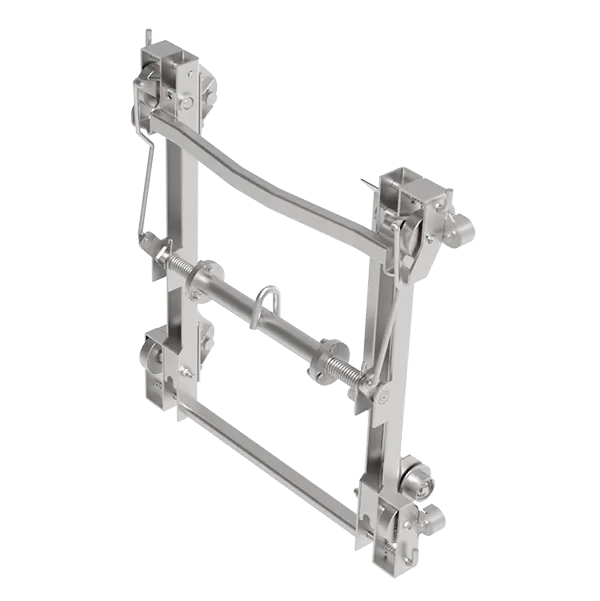

Carriage
Constructed from welded carbon steel, it incorporates a safety catch mechanism to provide additional security in the event of a wire rope breakage.

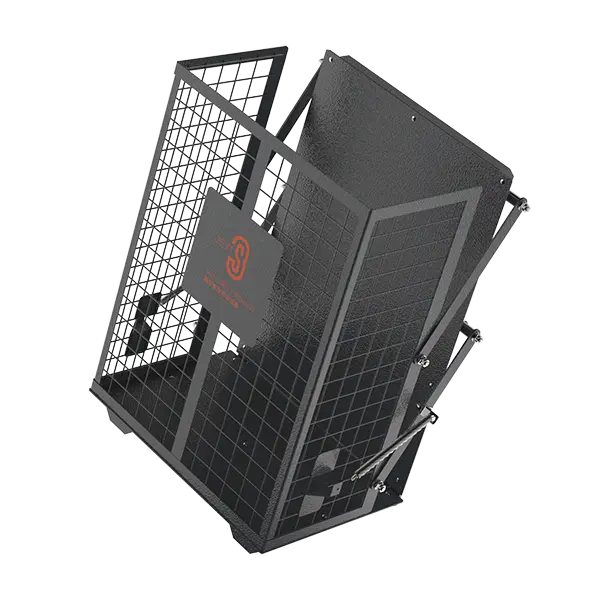

Multi-Purpose Lifting Platform
It is a user-friendly and convenient lifting cage designed for transporting a wide variety of materials.

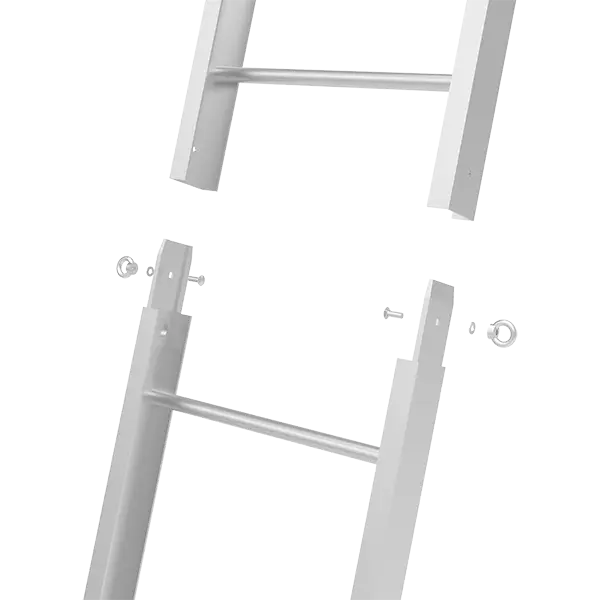

Rail Section Connectors
The guide rail sections can be connected using the designed bolts and eye nuts without the need for tools, ensuring that the required torque is met.

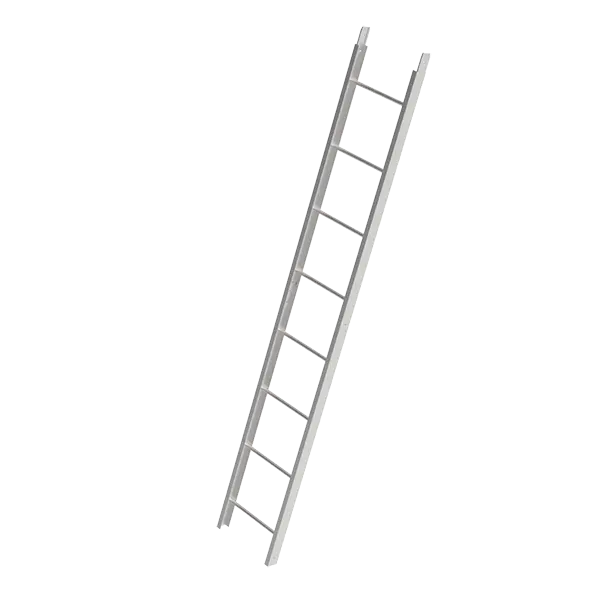

Standard Rail Sections
It is built of high-strength aluminum alloy and has four standards (2 m / 1 m / 0.75 m / 0.5 m) and customizable lengths per piece.

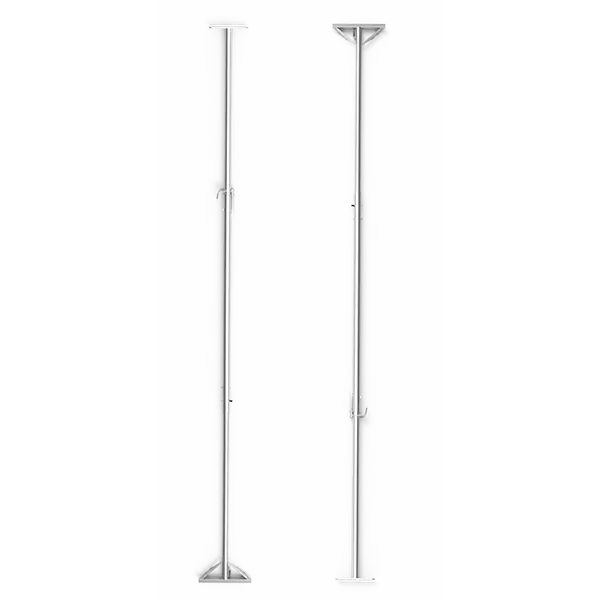

Guide Rail Support
Supports the guide rails at various heights thanks to its adjustable length of 5.4 to 7.2 meters.

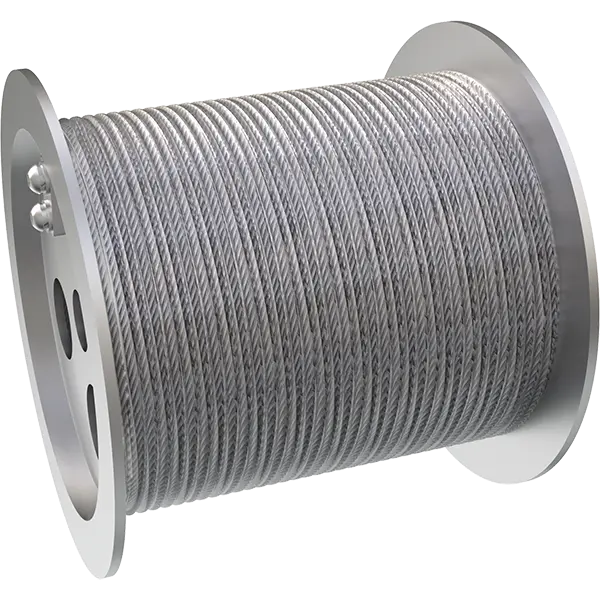

LBS Grooved Drum
Installed within the drive unit, it ensures that multi-layered wire ropes are wound in an orderly and stress-free manner, which minimizes friction and extrusion deformation, thereby extending their service life.

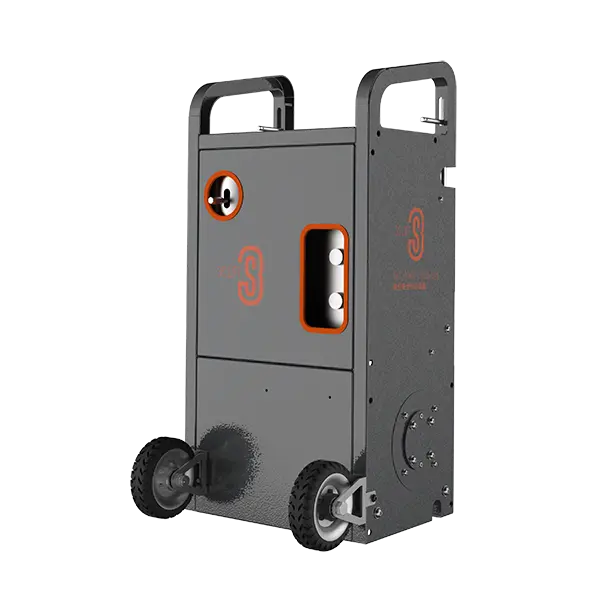

Drive Unit
Allows for manual load lowering and easy transportation. The frequency converter control (available only in the MH03L250-expert model) provides a smoother start and stop.
Key Features
Multipurpose
Our versatile carrier platforms cater to nearly any scenario, accommodating a wide range of needs.
Simple Installation
Tool-free installation makes setting up a breeze. Simply connect the rail ladder sections using eye nuts and bolts, and you'll be done in just 20 minutes with only two installers (for a 10-meter ladder).
Portable Design
Its compact and lightweight design ensures easy transportation via regular trucks or vans.
Stable Operation
Thanks to the frequency conversion control system (specific models), you'll enjoy smooth starts and stops.
Durability
Our patented LBS rope groove extends the wire rope's service life, while the patented VFC system prevents inertia damage without speed changes. The aluminum alloy guide-rail ladder is both high-strength and wear-resistant.
Reliability
With features like fall protection, overload detection, power failure protection, and emergency braking, you can rest assured that your property and personnel are protected from damage.
Specifications
Model |
MH03L250 |
Rated load |
250 kg (552 lbs) |
Lifting speed |
30 m/min (98 ft/min) (double speed) |
Smooth start/stop |
Yes |
IP class |
IP54 |
Operating temperature |
-20°C – +40°C |
Drive unit weight |
65/56 kg (143/123 lbs) |
Noise level |
72-76 dB |
Wire rope diameter |
6 mm (1/4 inch) |
Power supply |
230 V / 110 V, Frequency adaptation |
Over load detection |
VFC control (10% surplus) |
Model |
MH03L250/MH03L200 |
Rated load |
250 kg / 200 kg |
Lifting speed |
30 m / min |
Smooth start/stop |
Yes |
Max. lifting height |
19 m |
IP class |
IP 54 |
Operating temperature |
-20℃ to +40℃ |
Drive unit weight |
55 kg |
Power supply |
230 V |
Model |
MH03L125 |
Power |
1050 W |
Voltage |
230 V |
Rated load |
125 kg |
Lifting speed |
8 m/min |
Max. lifting height |
6,5 m |
Length of guide rail |
12,5 m |
Working Angle |
50°-70° |
IP class |
IP 54 |

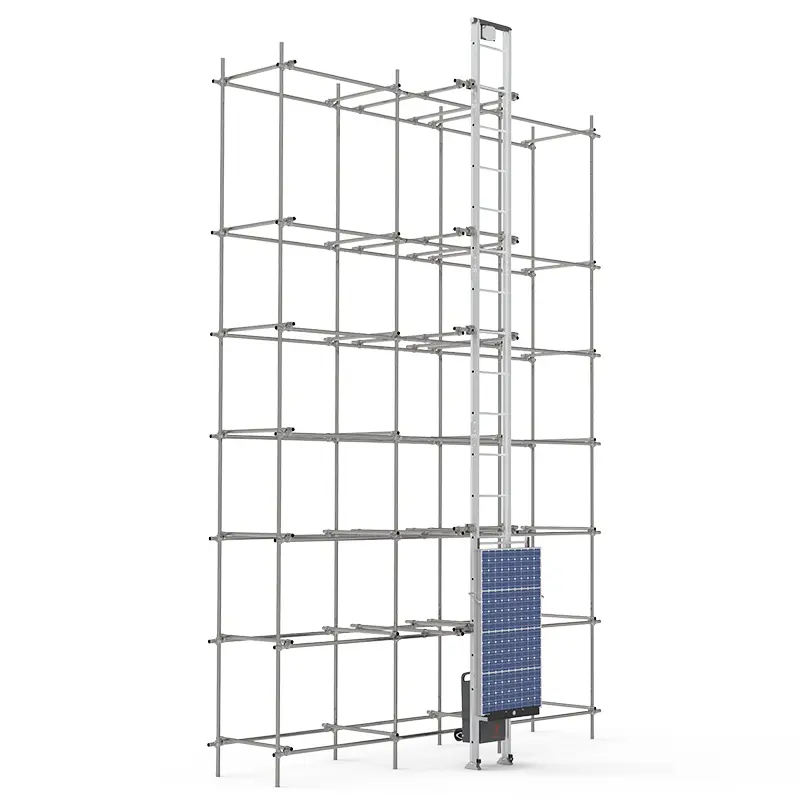

Model |
MH03L250-vertical |
Rated load |
250 kg (552 lbs) |
Lifting speed |
30 m/min (98 ft/min) (double speed) |
IP class |
IP54 |
Operating temperature |
-20°C – +40°C |
Lifting height |
30m (Other sizes can be customized） |
Noise level |
72-76 dB |
Wire rope diameter |
6 mm (1/4 inch) |
Power supply |
230 V / 110 V, Frequency adaptation |
Over load detection |
VFC control (10% surplus) |
