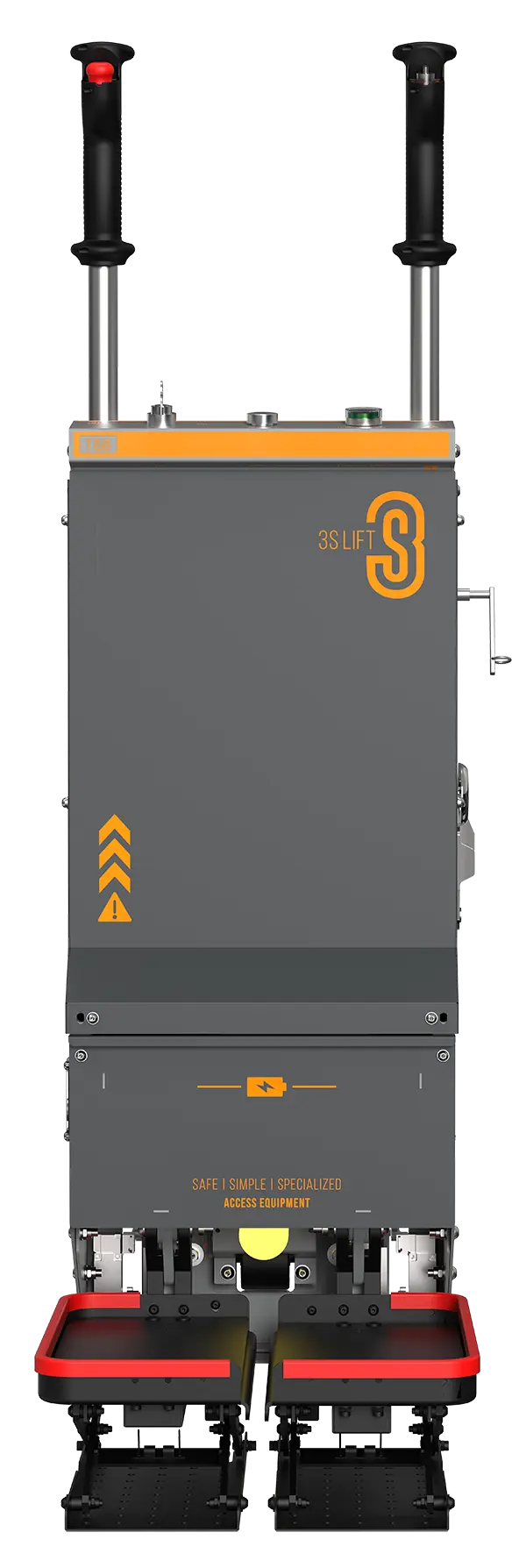

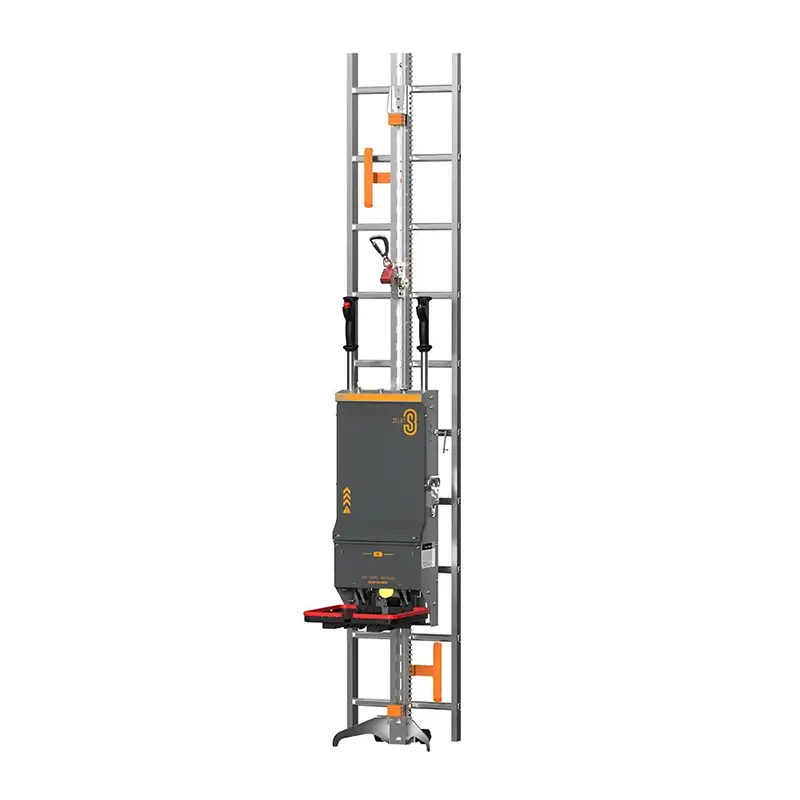

3S LIFT Ladder Hoist Tower Climbing System
Video
product description

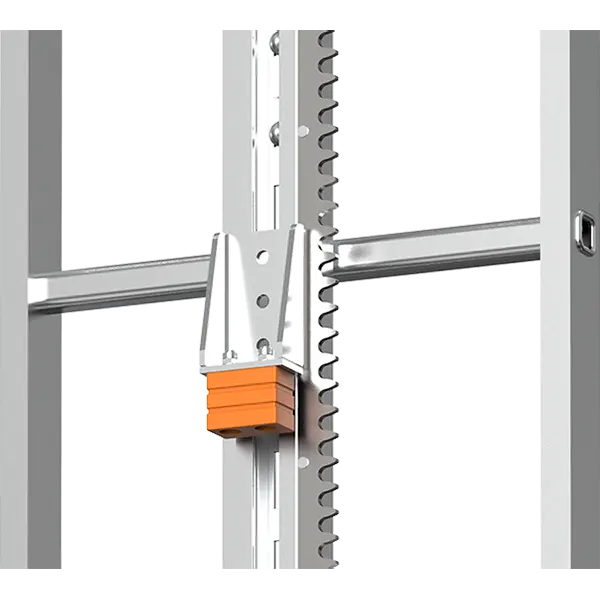

Upper-End Stop with Buffer
At both the upper and lower ends of the guide rail, two mechanical end stops equipped with buffers are installed. These serve as a safety measure to prevent the car from exceeding its designated running pathway in the event of a switch malfunction.

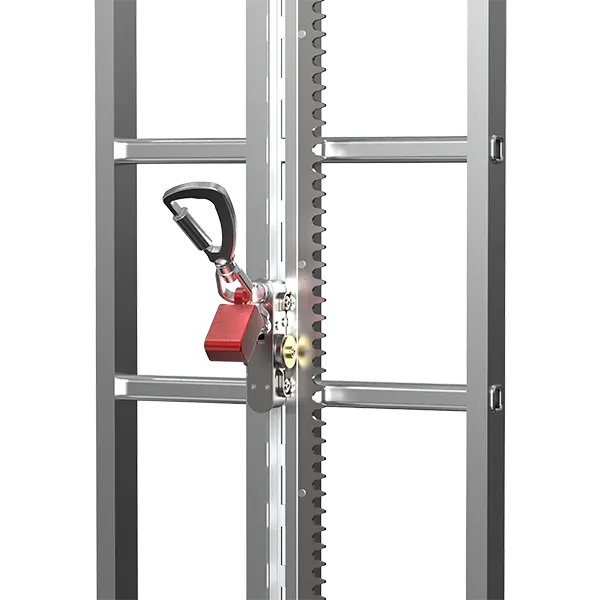

Operator Fall Arrester
The Operator Fall Arrester is securely connected to both the guide rail and a full-body harness. In the event of an accident, the fall arrester instantly locks onto the guide rail, effectively preventing serious injury to the operator.

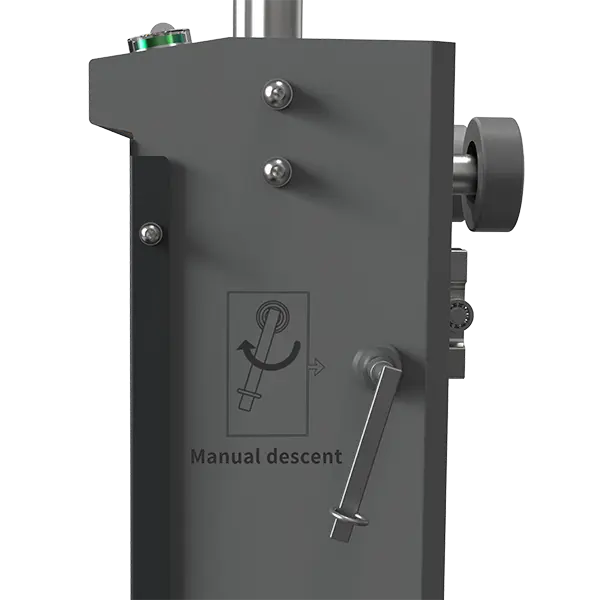

Manual Descent Function
In the event of a sudden power failure, the operator has the ability to engage the manual descent lever to safely and steadily lower the car to the ground.

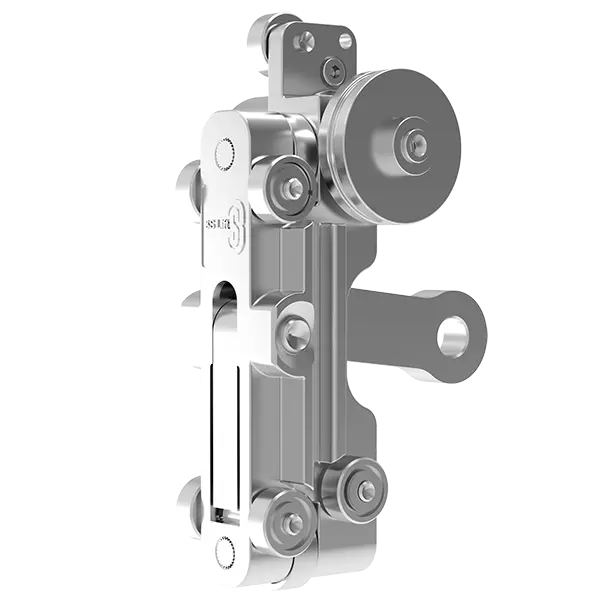

Car Fall Arrester
The Car Fall Arrester, positioned on the lift's car, operates within the confines of the guide rail. Should a fall occur, it engages instantly, securing the car in place and preventing it from descending further.

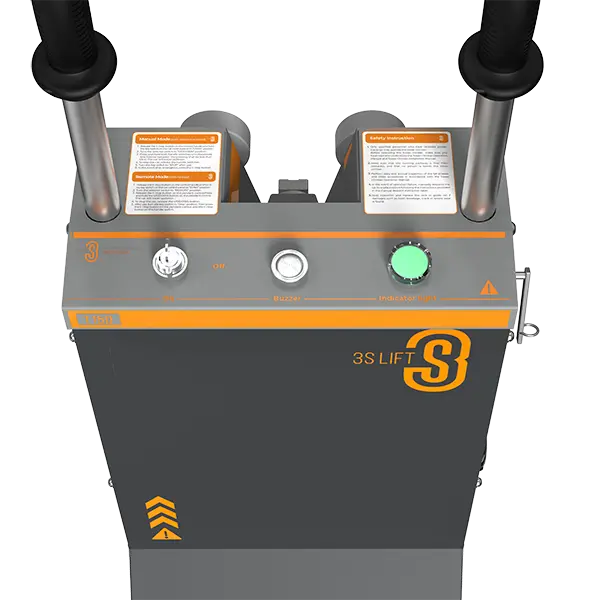

Overload Protection System
In the event of an overload, the Tower Climber will immediately sound an alarm and automatically shut off the power, causing the lift to halt in its current position. The Climber will remain inactive until the overload issue has been resolved and corrected.

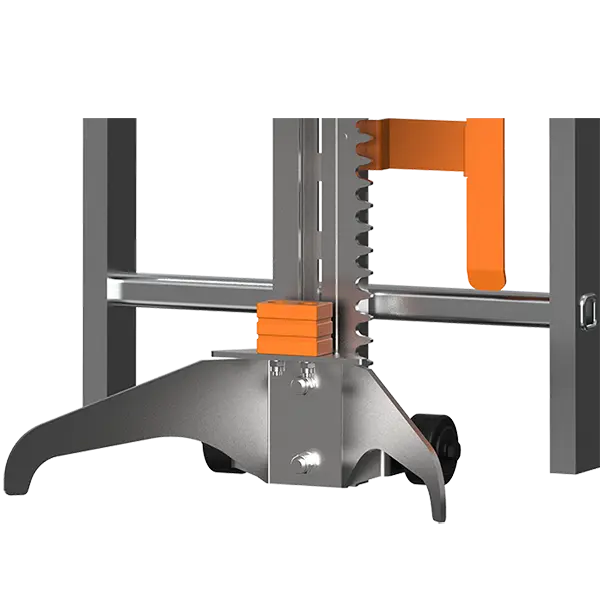

Lower-End Stop with Buffer
At both the upper and lower extremities of the guide rail, two mechanical end stops, each equipped with buffers, are installed. These serve as a crucial safety mechanism to prevent the car from exceeding its designated running pathway in case of a switch malfunction.
Key Features
Two-handle start-up switch
Remote operation system
Top and bottom limit, as well as ultimate limit protection
Low battery protection function
Audible and visual alerts during operation
Collapsible footboards
Specifications
Model |
T150 |
Corrosion protection |
C4-L |
Capacity |
1 person |
Operating temperature |
-20°C to +55°C |
Dead weight |
70 kg |
Relative humidity |
＜95% |
Rated load |
150 kg |
Ambient wind speed |
≤13 m/s (strong breeze) |
Dimensions |
(380 × 560 ×1340) mm |
Motor power |
1 kW |
Rated speed |
18 m/min |
Insulation class |
F |
Battery range |
≤1500 m (40 round trips for a 40 m tower crane) |
Service life |
10 years |
Noise level |
≤79 dB (A) |
Power supply |
Battery powered Nominal voltage DC48 V |
IP rating |
IP65 |
Rated voltage |
220 V 50 Hz |
