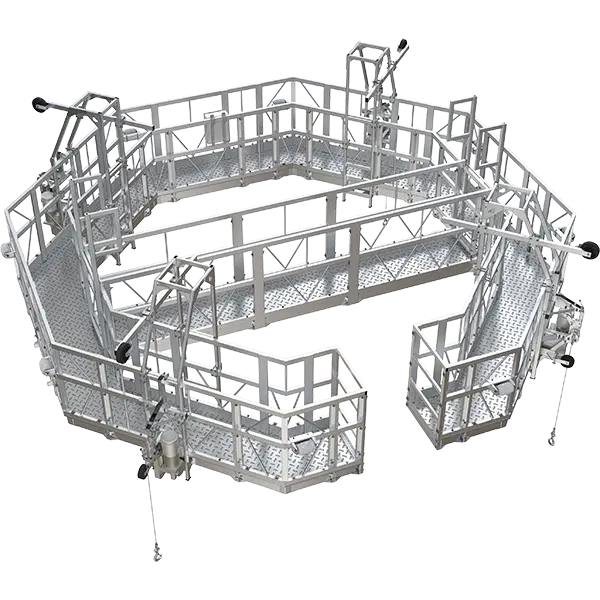

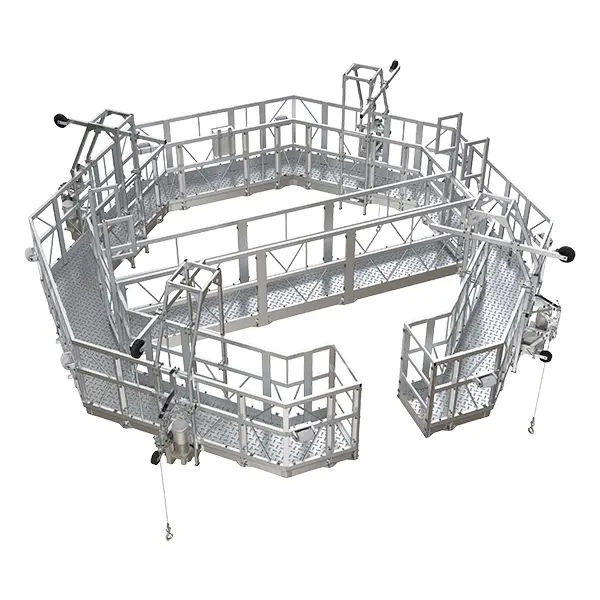

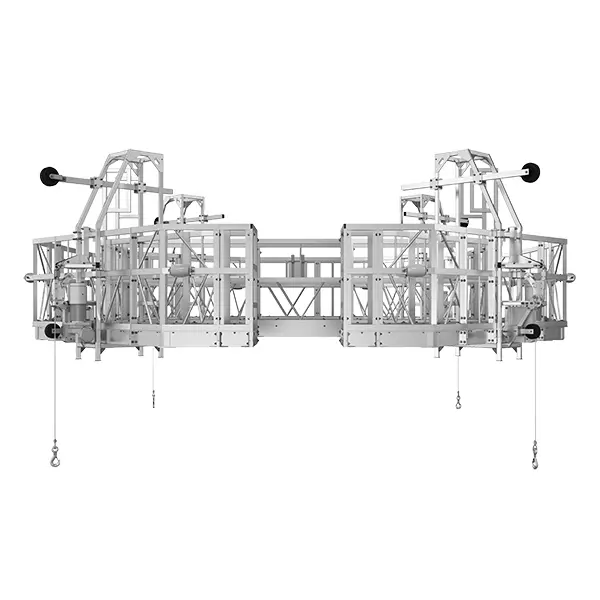

3S LIFT CP4-500 Suspension Platform

The suspension platform is composed of suspension device, platform, traction hoist, SafeLock, electric control system, wire rope, and other major components. The suspension device is fixed in the cylinder wall, and the platform relies on its own hoist along the steel wire rope to climb. Operators can run up and down in the vertical direction, and they can be free to hover at any height for work. The whole system is self-contained, flexible, and convenient to use without any external assistance. Modular main structure and aluminum alloy material of the standard section are spliced into the required diameter of the tower platform.

product details

Video

product description

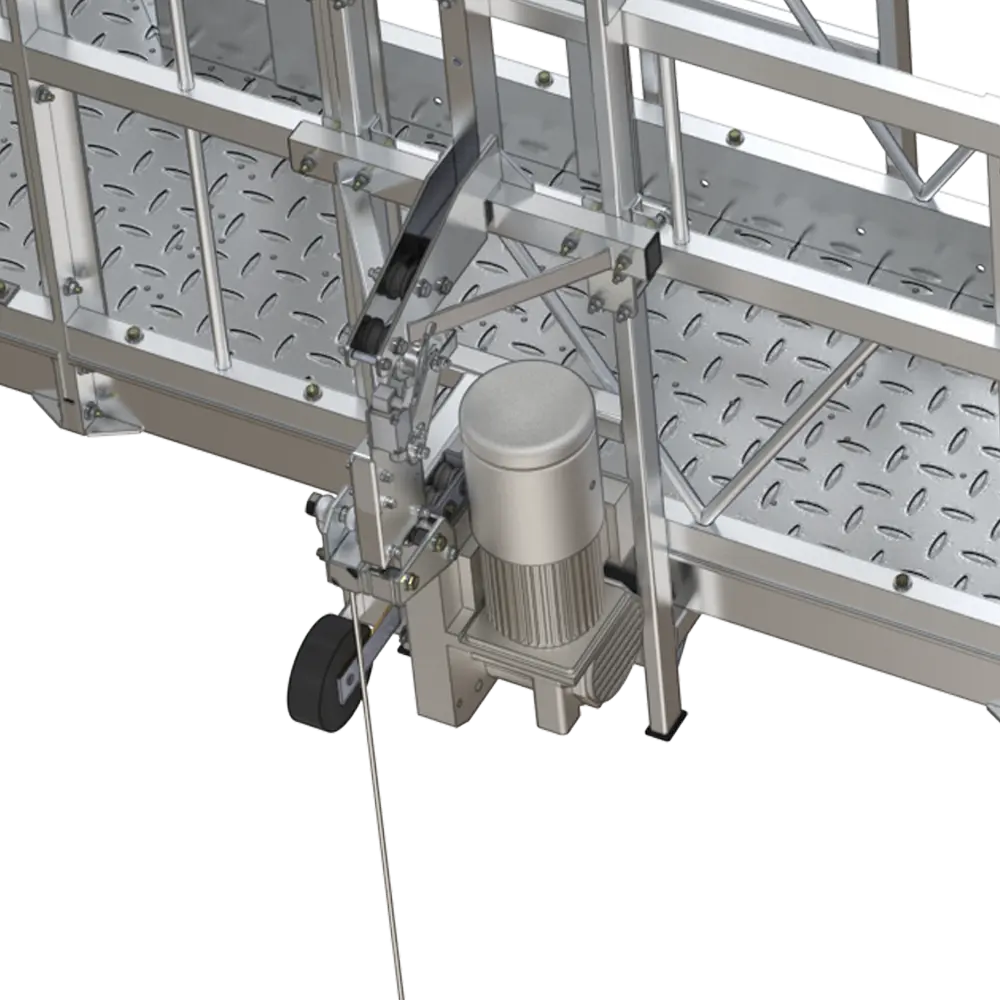

SafeLock

Avoid the platform over speed descent.

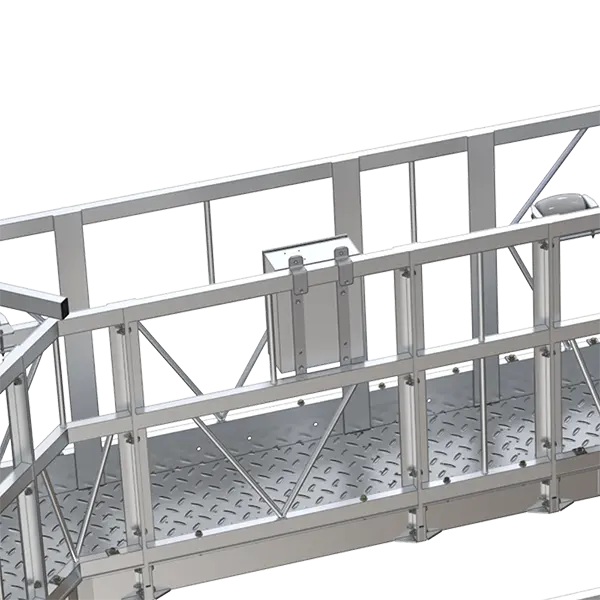

Electrical Control System

Control the operation of the platform, and its alarm sounds in case of an emergency.

Traction Hoist and Overload Detection Device

Drive the platform to descend and ascend the towers, preventing overload operation.

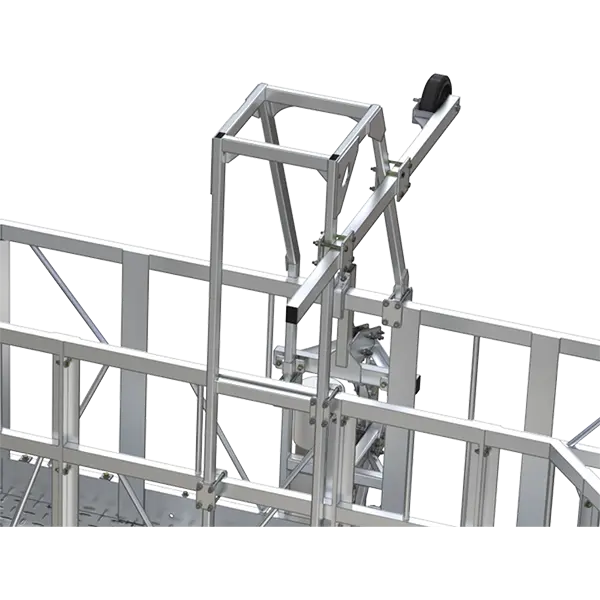

Hanger

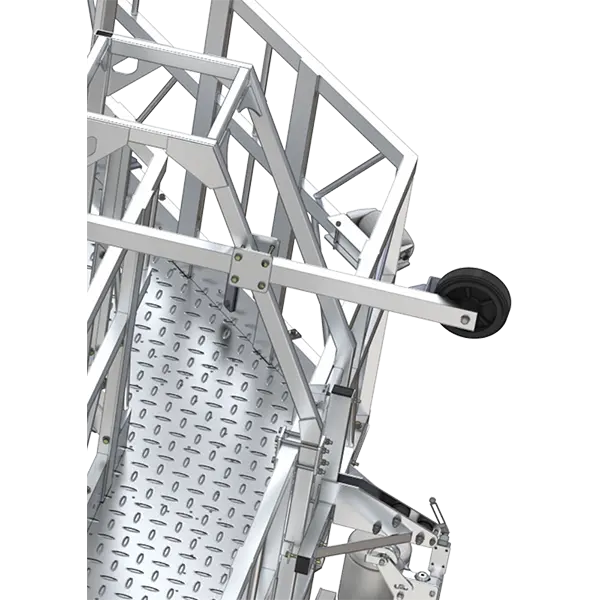

Wall Roller Assembly

Telescopic arm can be adjusted to maintain the distance between the platform and the inner wall of the boiler.

Key Features

3S CP4-500 Mixed Tower Suspension Platform is a cement tower lifting construction lifting unit, which can be applied to different diameters of the tower.

Replace the suspension point fall arrester alternately by section: After reaching the limit of the tower turbine in this section, hang the anti-fall hook on the platform and replace the upper suspension point on the upper section.

(Customizable) Camera or helmet: Real-time monitoring of safety hazards on the platform to protect personnel safety.

Traction hoist and overload detection device: Drive the platform to descend and ascend the towers, preventing overload operation.

Upper limit switch: Protects the platform from exceeding the safety distance.

SafeLock: Avoid the platform over speed descent.

Electrical control system: Control the operation of the platform, and its alarm sounds in case of an emergency.

Wall roller assembly:Telescopic arm can be adjusted to maintain the distance between the platform and the inner wall of the boiler.

Specifications

Model	CP4-500
weight	1300 Kg
Rated load	600 Kg
Rated voltage	400 V / 690 V
Speed	9 m/min
Dimensions	Can be customized
Power supply	7.2 KW
