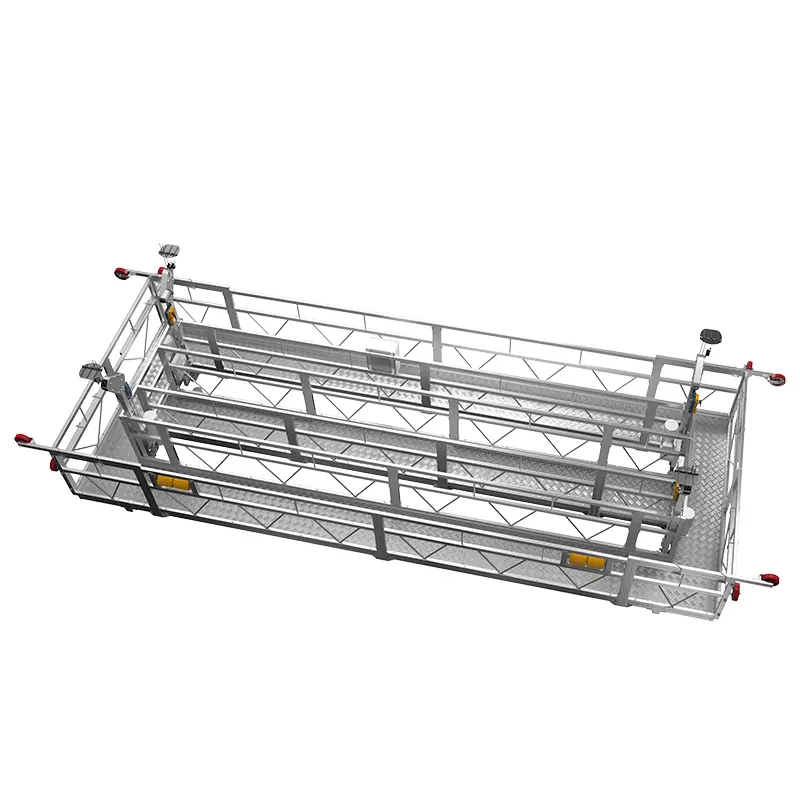

3S LIFT Boiler Maintenance Platform
Video
product description

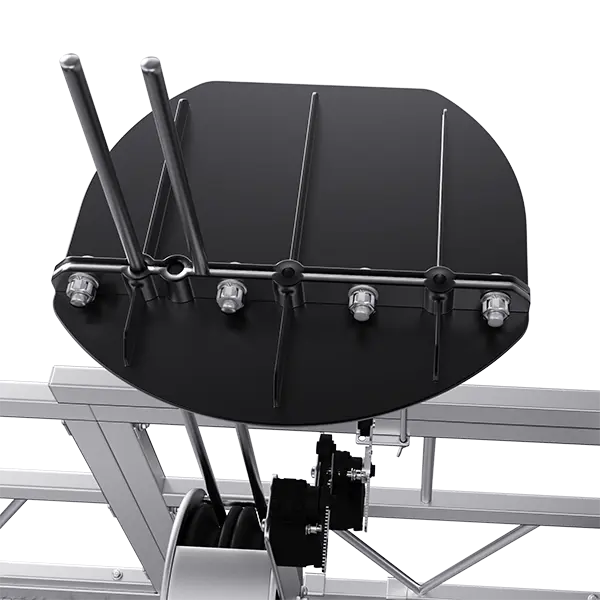

Limit Plate
Set the upper limit, and adjust the height and position.

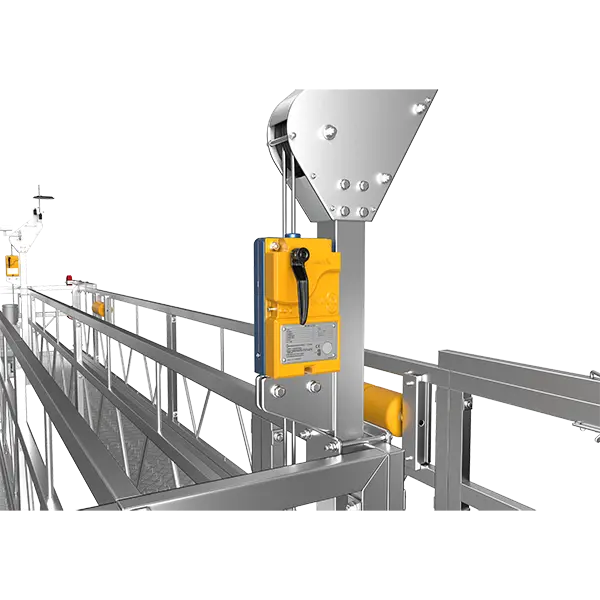

SafeLock
Avoid the platform over speed descent.

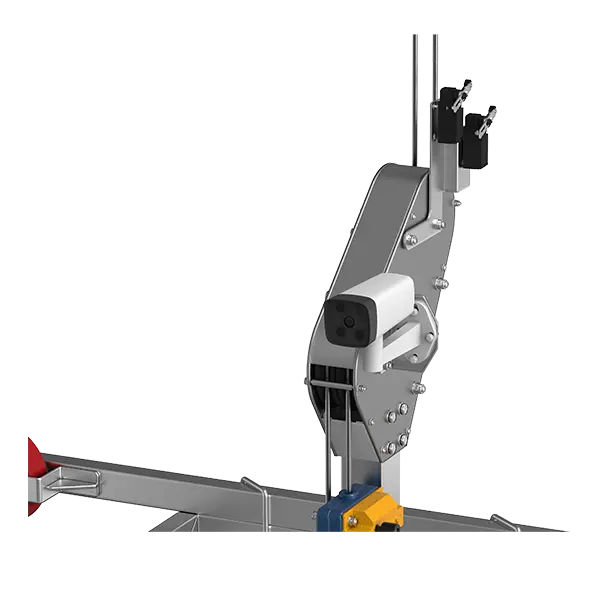

(Customizable) Camera or Helmet
Real-time monitoring of safety hazards on the platform to protect personnel safety.

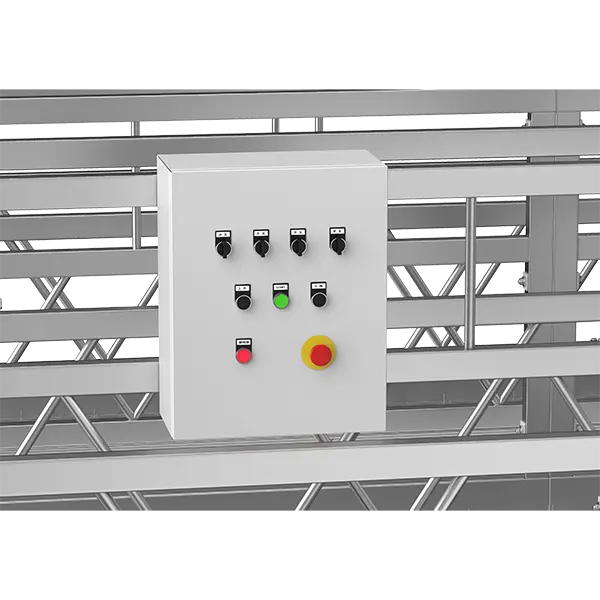

Electrical Control System
Control the operation of the platform, and its alarms sound in case of an emergency.

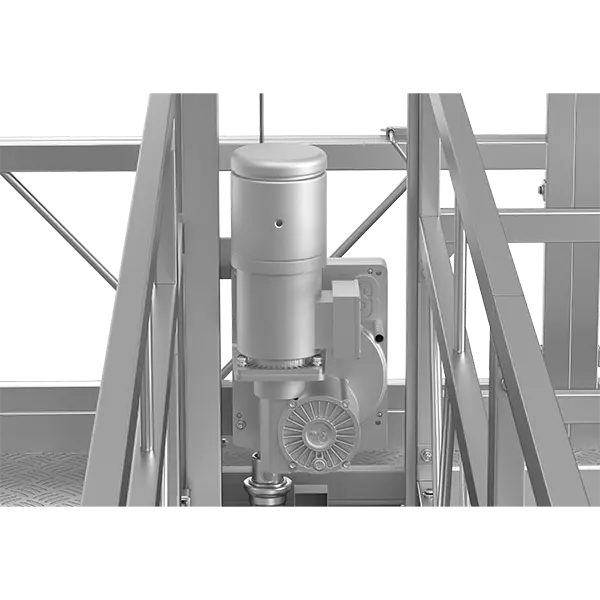

Traction Hoist and Overload Detection Device
Drive the platform to descend and ascend the towers, preventing it from overload operation.

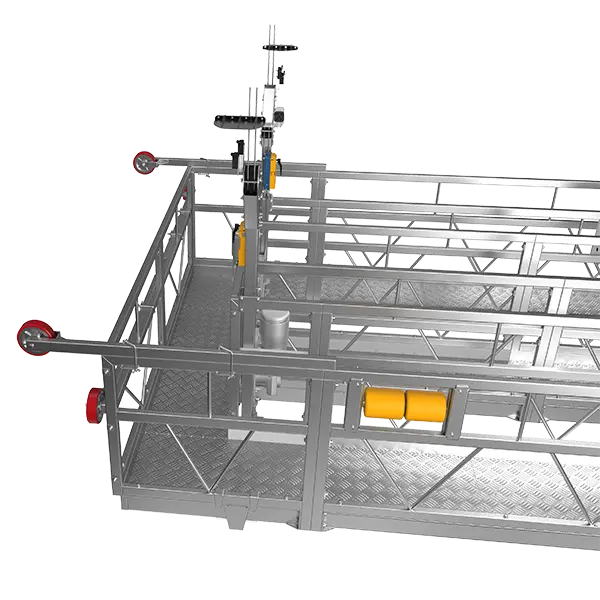

Wall Roller Assembly
Telescopic arm can be adjusted to maintain the distance between the platform and the inner wall of the boiler.

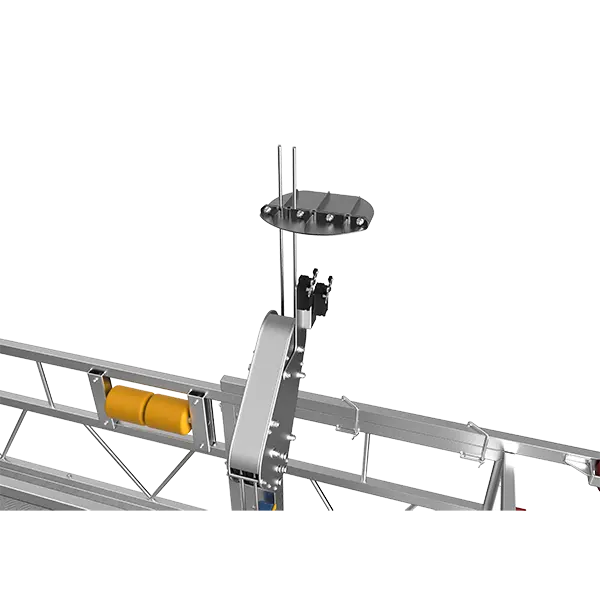

Upper Limit Switch
Protects the platform from exceeding the safe distance.
Key Features
The combination suspension platform
The combination suspension platform without scaffolding, only requires 4 sets of wire ropes to be placed through the reserved holes on the top of the boiler, and the platform can be lifted and lowered by traction hoist.
Limit plate
Set the upper limit, and adjust the height and position.
(Customizable) camera or helmet
Real-time monitoring of safety hazards on the platform to protect personnel safety
Lifting hoist and overload detection device
Drive the platform to descend and ascend the towers, preventing it from overload operation.
Upper limit switch
Protects the platform from exceeding the safe distance.
SafeLock
Avoid the platform over speed descent.
Electrical control system
Control the operation of the platform, and its alarms sound in case of an emergency.
Wall roller assembly
Telescopic arm can be adjusted to maintain the distance between the platform and the inner wall of the boiler.
Specifications
Rated load |
280 kg |
Speed |
9 m/min |
Power supply |
3 KW |
Self-weight |
240 Kg |
Rated voltage |
400 V/690 V 3 phase |
Dimensions |
2m × 0.7m × 1.1 m |
Compliant with standard |
CE/UL |
