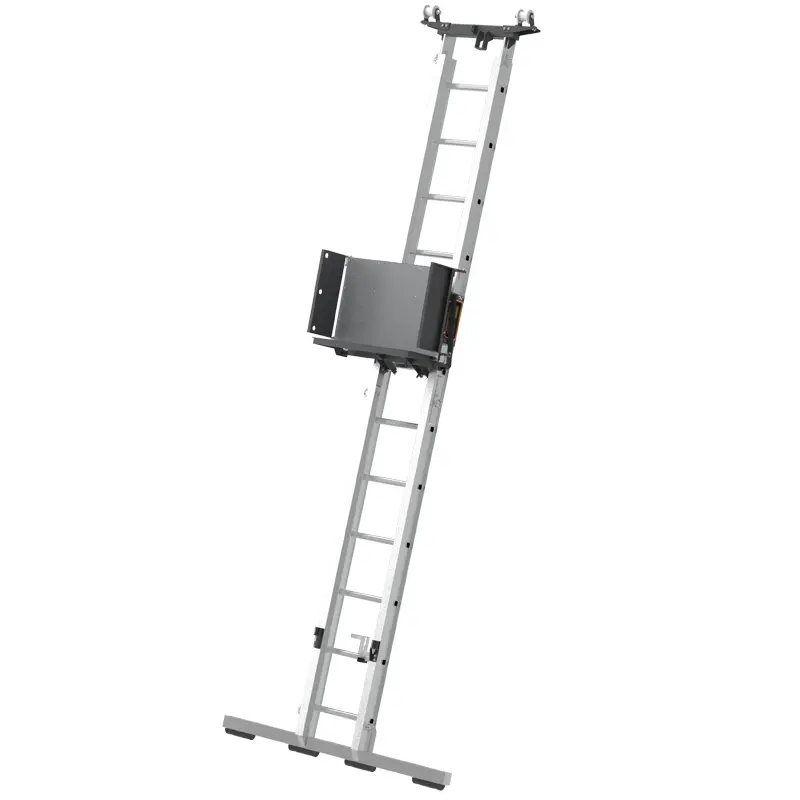

3S LIFT 120kg Battery Ladder Hoist

The 3S LIFT Battery Ladder Hoist represents an advanced solution tailored specifically for household projects, offering unparalleled versatility and the ability to be deployed regardless of varying power specifications. Weighing in at less than half the weight of its plug-in counterpart, this hoist boasts a capacity that is ample for tackling a wide array of everyday tasks. With a particular emphasis on lifting solar panels and roofing materials, the BLH is designed to seamlessly integrate into any household renovation or construction project, providing a robust and efficient lifting solution that is both portable and powerful.

product details

Video

product description

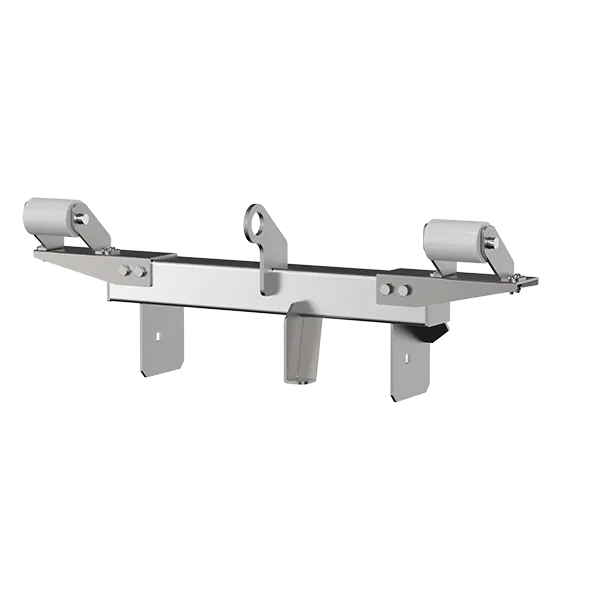

Head Section

Installed with top limit, hook attachment point and top wheels, the head section is intended to limit the travel of the drive unit, fix the wire rope, and restrict the movement of the drive unit and the platforms.

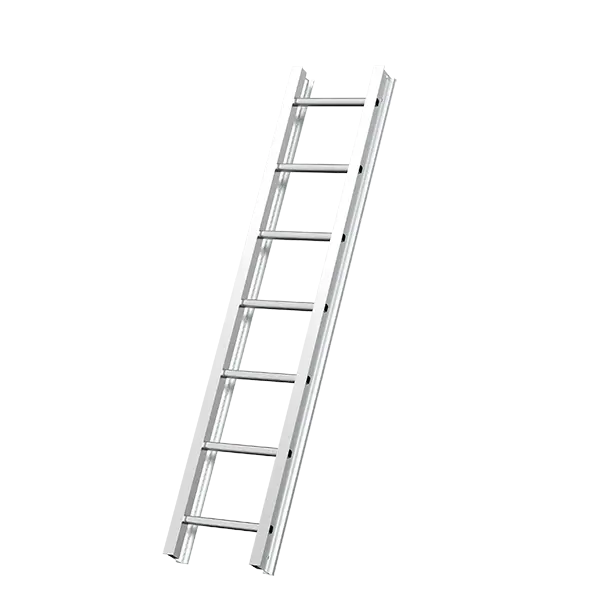

Rail Section

Made of aluminium alloy, the rails are of different length and types including 0.84 m/1.4 m/1.96 m standard section, 2.24 m adjustable section, and 4.5 m foldable section, all comply to EN131 & ANSI A14.2.

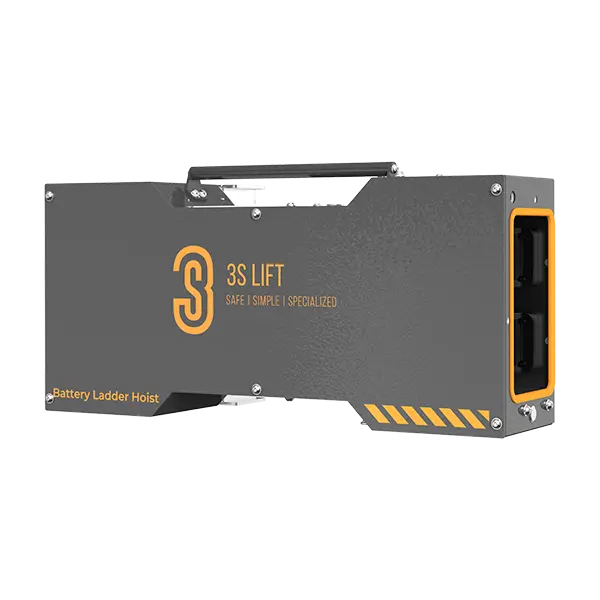

Drive Unit

The 550W drive unit is capable of accommodating two 5 Ah, 18V batteries. Equipped with features such as overload detection, power outage self-locking, lower power protection, and an emergency brake mechanism, this unit ensures safe transportation of goods while in motion.

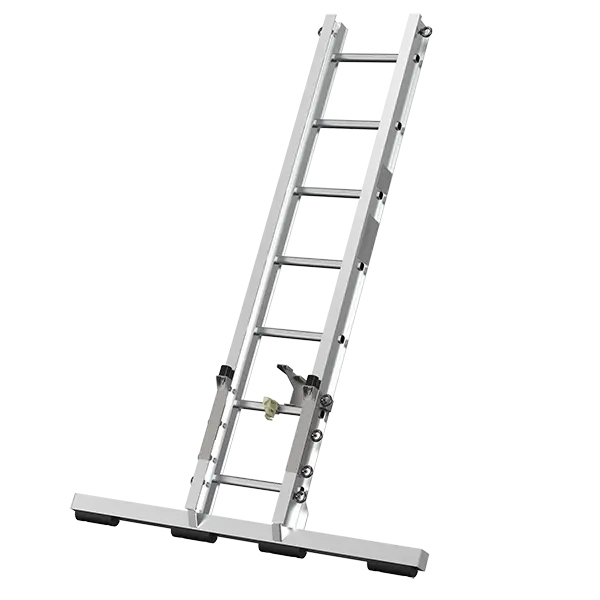

Bottom Section

Equipped with a bottom limit, bumpers, and a stabilizer (ground foot), this setup helps to restrict movement and maintain balance. Additionally, it serves as the mounting point for the drive unit.

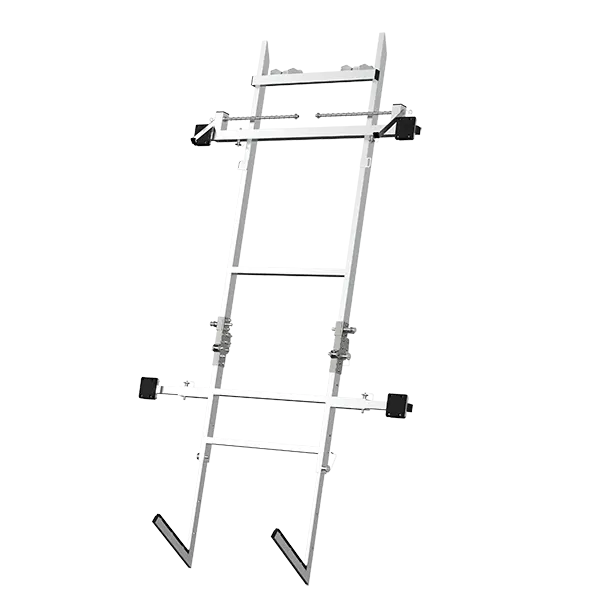

Solar Panel Platform

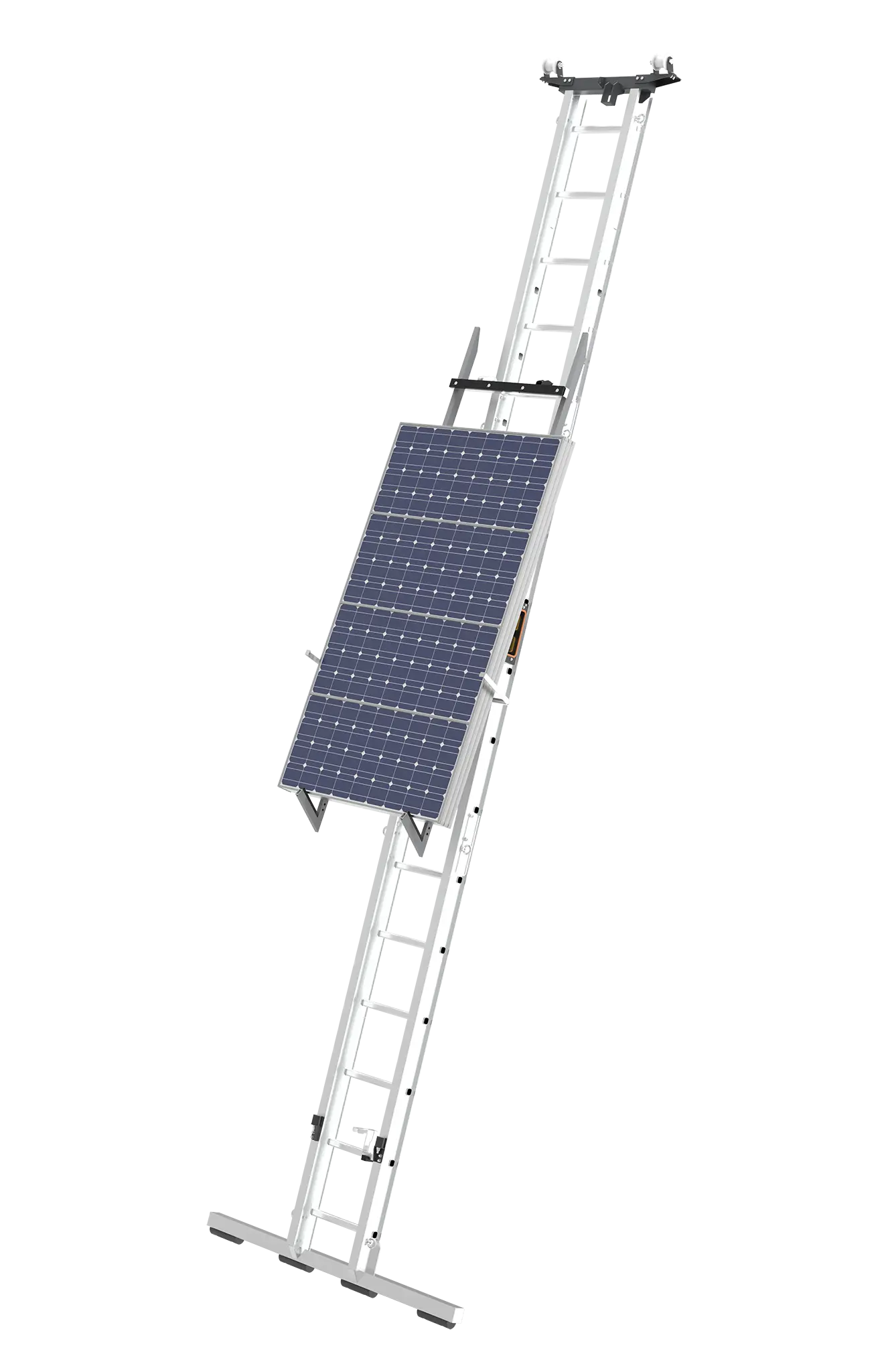

The platform is capable of lifting 4-5 solar panels simultaneously, and it features an automatic tilting mechanism at the head section for enhanced user convenience. The adjustable side brackets and bottom fork enable it to accommodate various sizes of solar panels and offer additional protection.

Key Features

Durability

The platform offers over 30 cycles (10 meters) at full load (120 kg/265 lbs) per charge, with batteries partially recharging during descent for extended use.

Multi-purpose Use

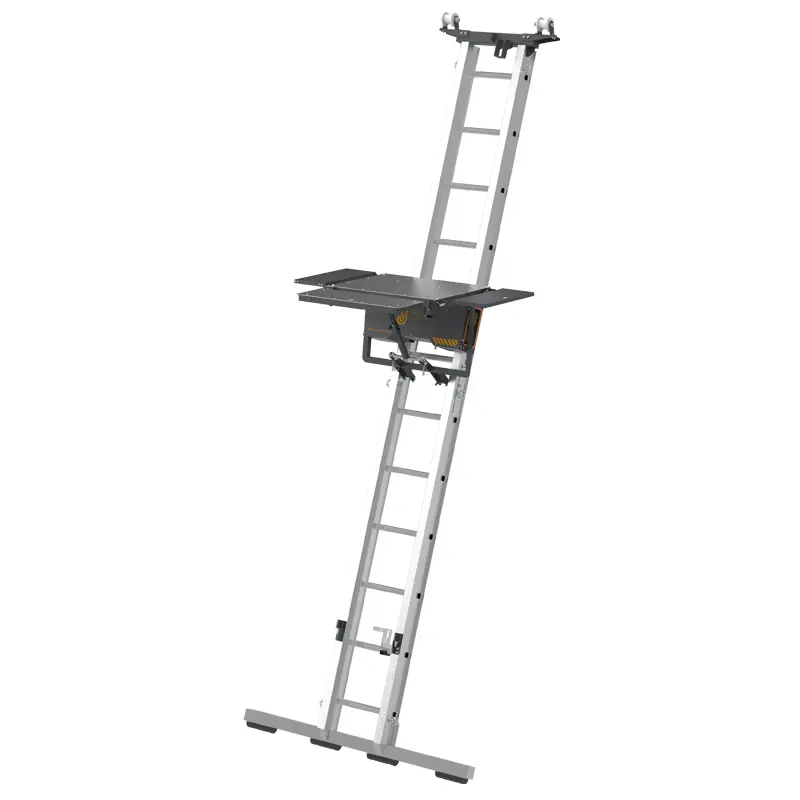

The solar panel platform flips over the head section smoothly, allowing workers to safely remove solar panels from the top. Additionally, the universal platform can be unfolded and adjusted to horizontal, accommodating a wide range of materials.

Portability

With an overall weight of approximately 100 kg for a 10-meter package, and no individual component exceeding manual handling limits, the platform is easy to transport and manage.

Easy Installation

Two people can assemble a 10-meter guide rail in just 2.5 minutes and install it in place within 5 minutes.

Climbable Design

The guide rail complies with EN131 and ANSI A14.2 standards, making it suitable for safe climbing.

Material

Constructed entirely of metal, the platform ensures durability and strength while remaining lightweight.

Power Supply

Powered by two 18V, 5 Ah/8 Ah batteries, the platform can be deployed regardless of the local power supply, ensuring versatility and reliability.

Specifications

Specifications of the battery model

Model	MH04L120
Power supply	550 W
Battery voltage	2 pcs * 18 V/5 Ah or 20 V/8 Ah
Rated load	120 kg (265 lbs)
Max. lifting height	10 m (33 ft)
Lifting speed	15m/min (49 ft/min)
Wire rope diameter	5 mm (1/5 inch), Stainless Steel
Waterproof	IP 54
Over load detection	Current overload
