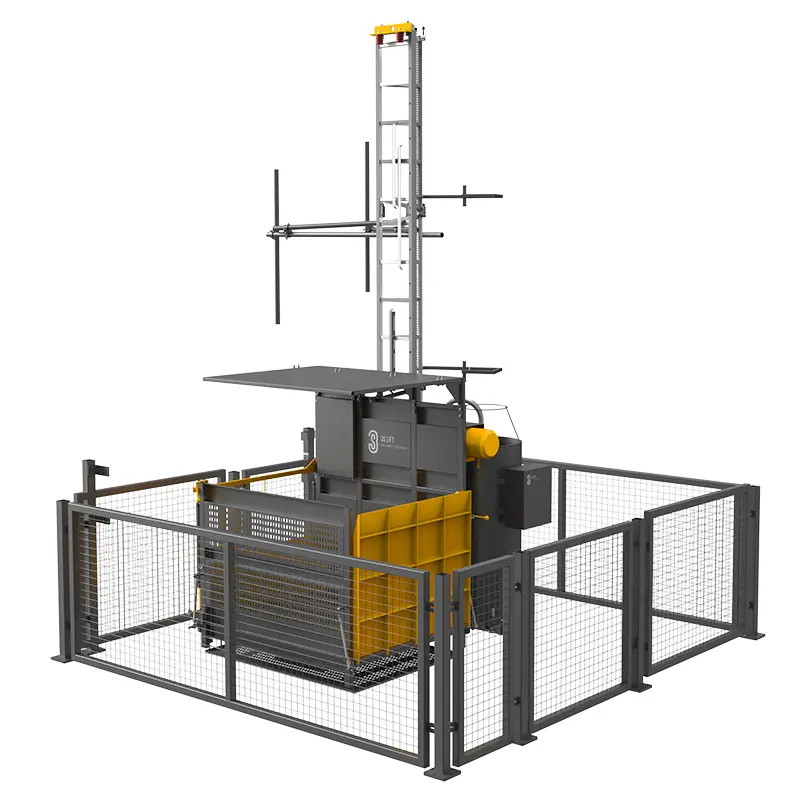

3S LIFT 500H/HP Transport platform

Transport platforms are meticulously designed to cater to a diverse array of industrial applications, thanks to their sturdy structure and robust capability to operate efficiently in dusty and high-temperature environments. These platforms are indispensable for material transportation, significantly reducing both time and costs associated with manual handling.
Boasting a versatile platform and hoist mode, the translate platform offers remarkable efficiency in lifting operations. In platform mode, it achieves speeds of up to 12 meters per minute, enabling swift and seamless material transfer. When switched to hoist mode, the platform elevates its performance, reaching speeds of 24 meters per minute. Furthermore, these platforms can reach impressive heights of up to 100 meters, making them ideal for various tasks that require significant vertical movement.
Whether you're working in a manufacturing facility, construction site, or any other industrial setting, these transport platforms provide a reliable and efficient solution for moving materials and equipment with ease.

    Video

    product description

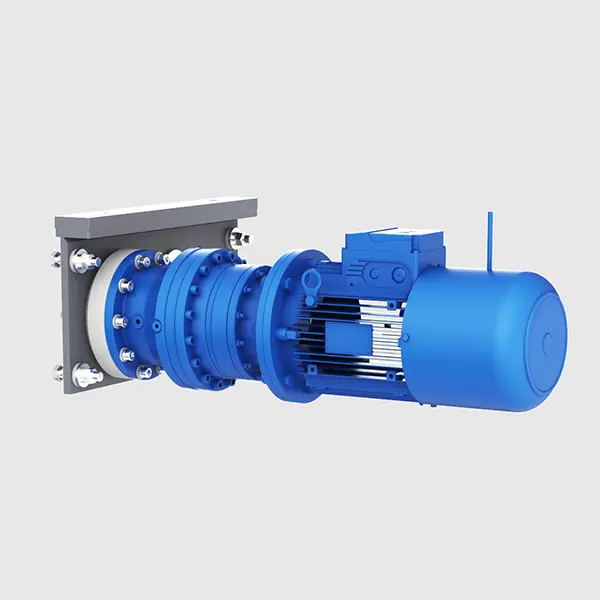

    Drive unit

    Drive unit

    The drive unit, powered by a gear motor, efficiently propels the work platform up and down along the mast. Should a power outage occur, the manual descent mechanism is available to safely lower the platform to the ground.

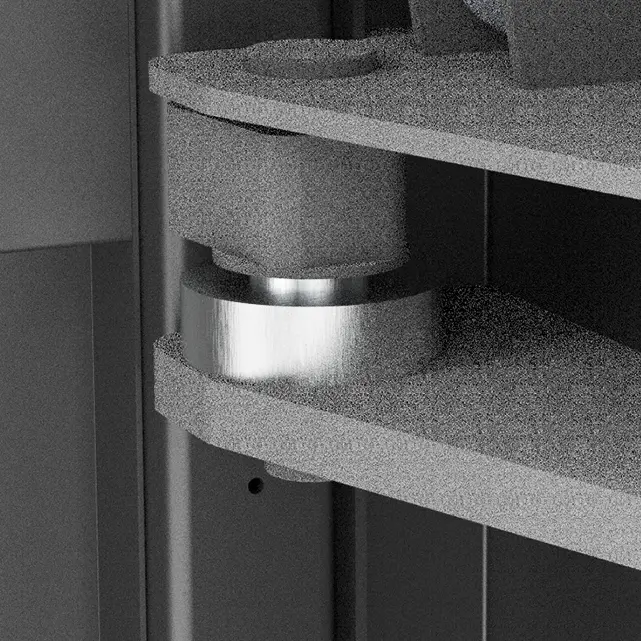

    Overload detection device

    Overload detection device

    If the rated load is exceeded, the device triggers both an audible and visual alarm, simultaneously engaging a safety mechanism to halt the platform's movement.

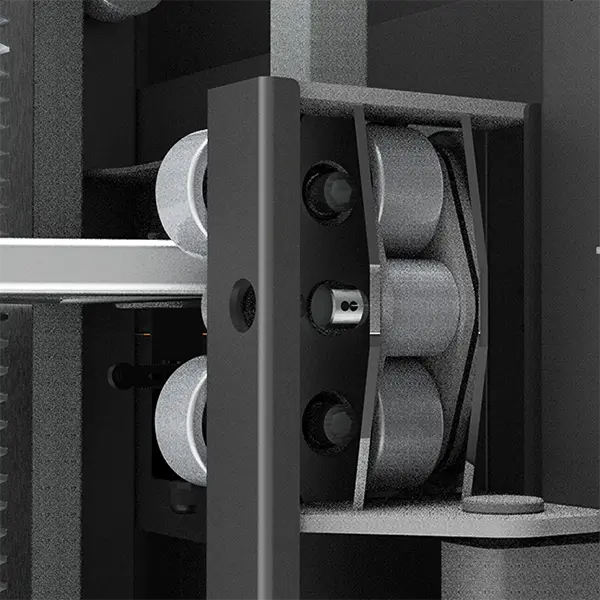

    Guiding system

    Guiding system

    The transport platform is securely connected to the mast through guide rollers, which guarantee that the platform moves along the intended path.

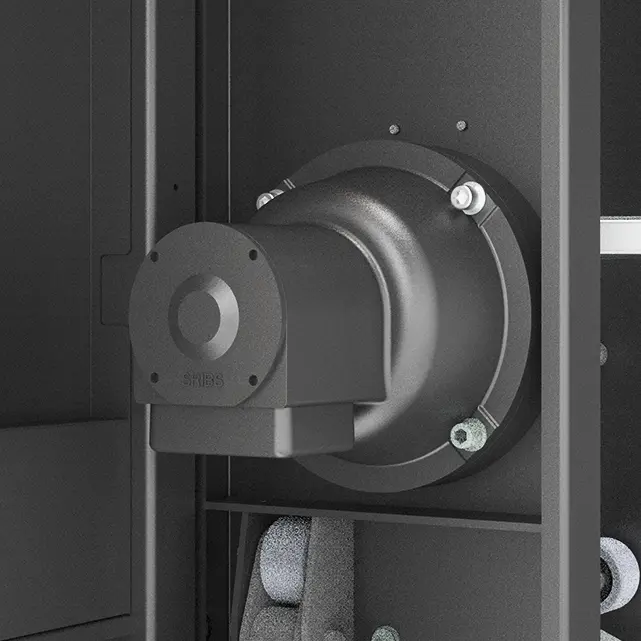

    Overspeed safety device

    Overspeed safety device

    The device automatically engages when the platform's travel speed surpasses the predetermined limit, promptly halting the platform's movement and disconnecting the power supply for enhanced safety.

    产品整体图片

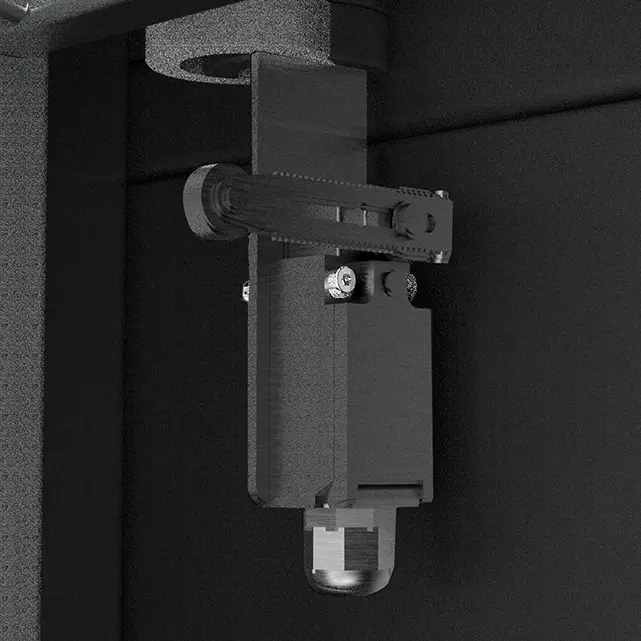

    Travel limit switch

    Travel limit switch

    Upon actuating the travel limit switch, the transport platform comes to a smooth and controlled stop at either the bottom or top of the mast.

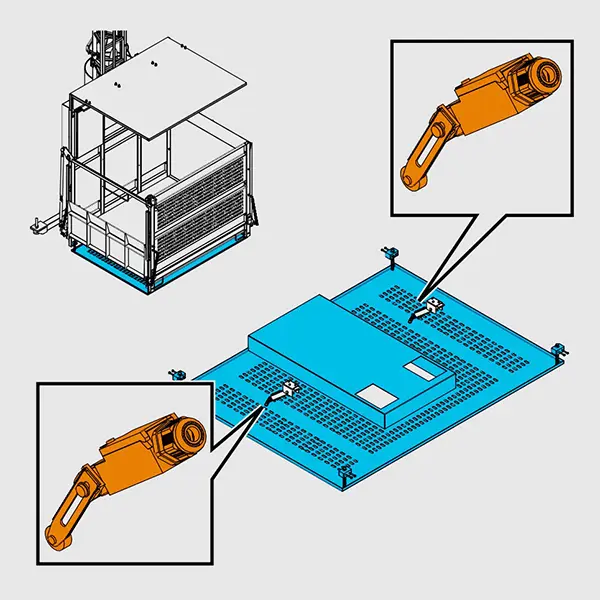

    Bottom sensing assembly

    Bottom sensing assembly

    The transport platform automatically halts its movement when it encounters obstacles in its path. When the specific switch is activated, the platform is allowed to travel upwards but is restricted from moving downwards for safety reasons.

    Retaining rod

    Retaining rod

    To prevent the tilting and falling of the platform.

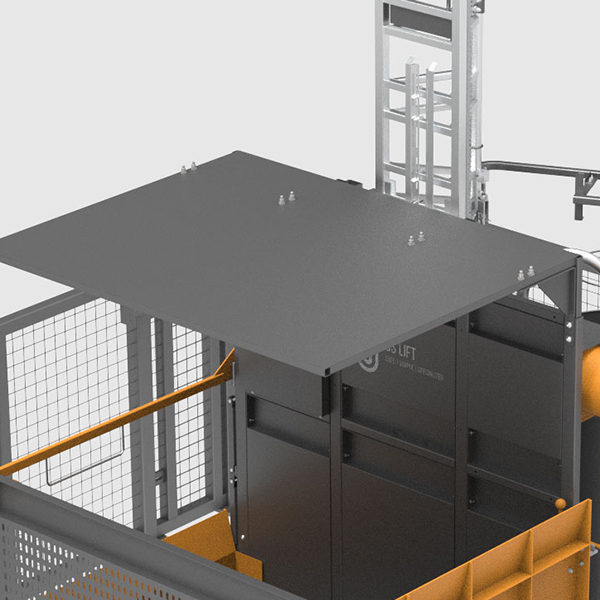

    Falling object protection guarding plate

    Falling object protection guarding plate

    To prevent injury from falling objects and to provide shade and protection from rain and snow.

    Key Features

    Multiple safety features ensure peace of mind.

    Multiple safety features ensure peace of mind.

    Automatic landing leveling function allows reaching the designated landing by one button.

    Automatic landing leveling function allows reaching the designated landing by one button.

    Faults display on LCD screen, facilitating maintenance.

    Faults display on LCD screen, facilitating maintenance.

    Mode switch between platform mode and hoist mode.

    Mode switch between platform mode and hoist mode.

    High strength, durable, and long service life.

    High strength, durable, and long service life.

    Specifications

    Model

    3S 500H/HP

    Rated load

    500 kg

    Maximum number of persons

    3

    Travel speed (hoist mode)

    24 m/min

    Travel speed (platform mode)

    12 m/min

    External platform dimensions

    1 700 mm × 1 400 mm

    Maximum height

    100 m

    Motor power

    5.5 kW

    Power supply

    400 V 3P + N + PE 50 Hz
