3S LIFT 2000H/HP Transport Platform
Transport Platform
Products Categories
Featured Products

3S LIFT 2000H/HP Transport Platform

Transport platforms are engineered to cater to a diverse array of industrial applications, boasting a robust structure and the capability to function flawlessly in dusty and high-temperature environments. Their design makes them the perfect choice for material transportation, enabling significant savings in both time and cost. These platforms come with a versatile design that includes both platform and hoist modes, offering efficient lifting capabilities. In platform mode, they operate at speeds of up to 12 meters per minute, while in hoist mode, they can achieve speeds of 24 meters per minute. With a maximum reachable height of 100 meters, these transport platforms are capable of handling a wide range of lifting tasks with ease and precision.

    Video

    product description

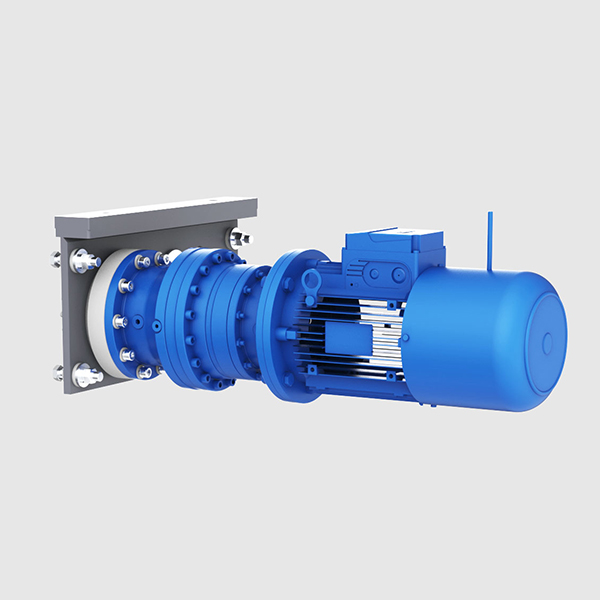

    Drive unit

    Drive unit

    Powered by a gear motor, the drive unit facilitates the smooth vertical movement of the work platform along the mast. In the case of a power outage, a manual descent mechanism is incorporated to enable the safe lowering of the platform to the ground.

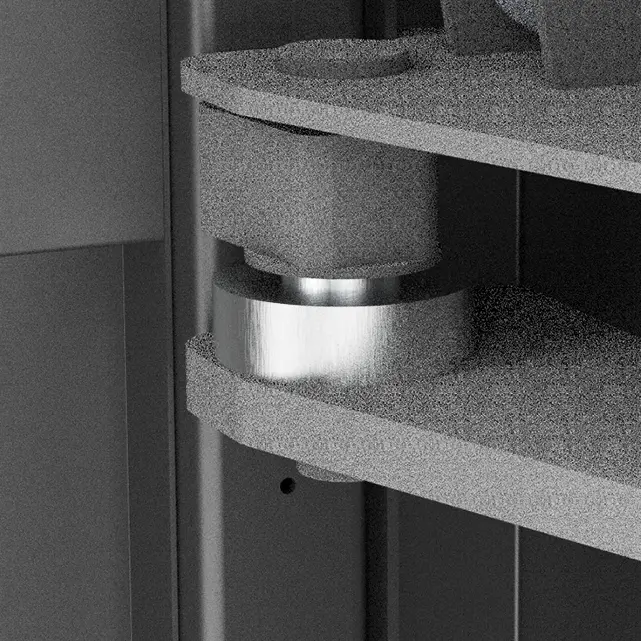

    Overload detection device

    Overload detection device

    When exceeding the rated load, the device activates an audible and visual alarm and prevents the platform from moving.

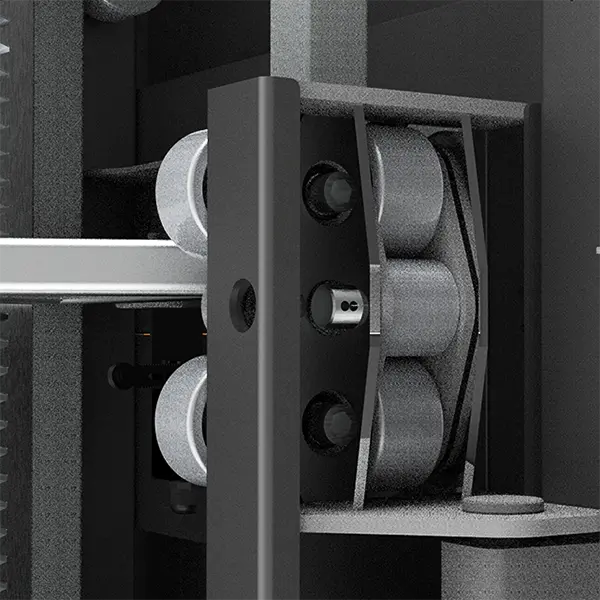

    Guiding system

    Guiding system

    The transport platform is securely connected to the mast through guide rollers, guaranteeing that it moves along the intended and designed route with precision.

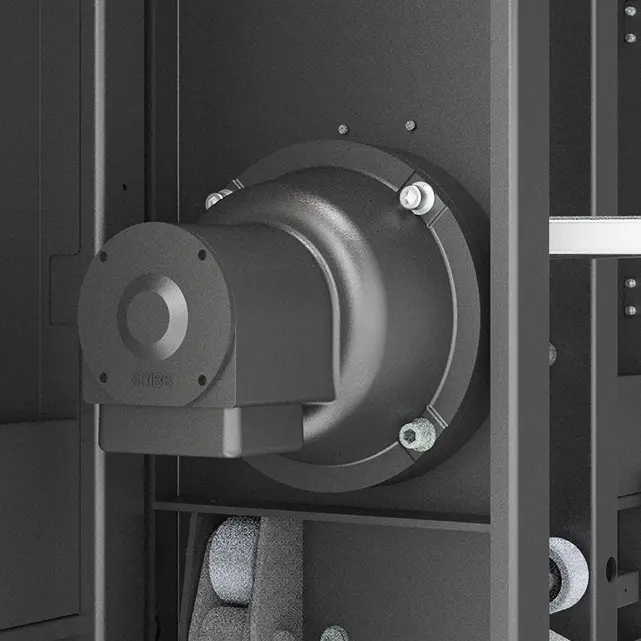

    Overspeed safety device

    Overspeed safety device

    The device automatically engages when the platform's travel speed surpasses the preset limit, instantaneously halting the platform's movement and cut the power supply for enhanced safety.

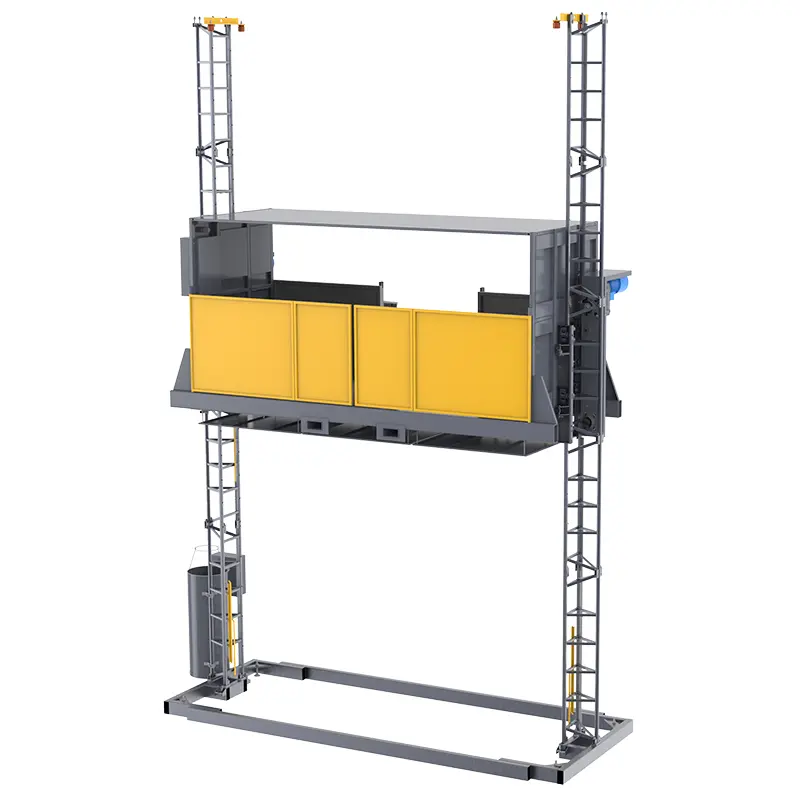

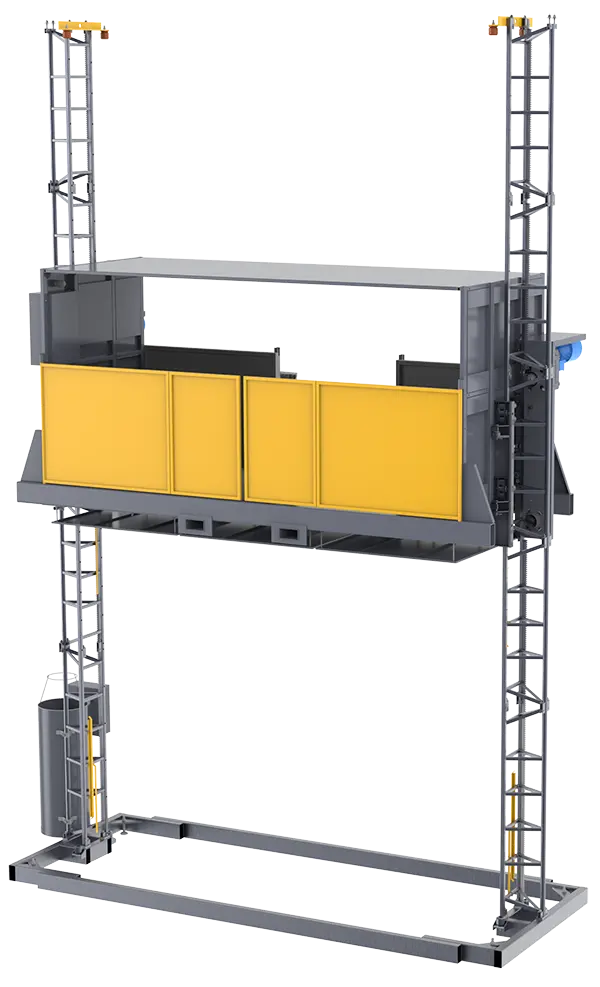

    3S LIFT 2000HHP Transport platform

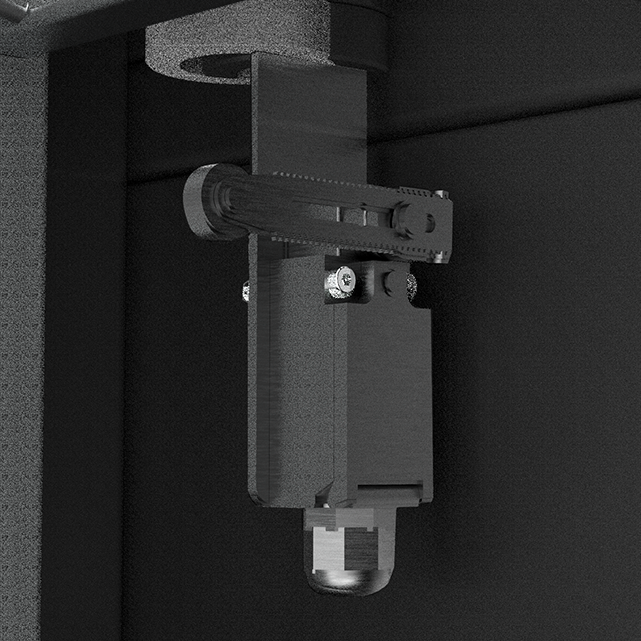

    Travel limit switch

    Travel limit switch

    By actuating the travel limit switch, the transport platform stops smoothly at the bottom or top of the mast.

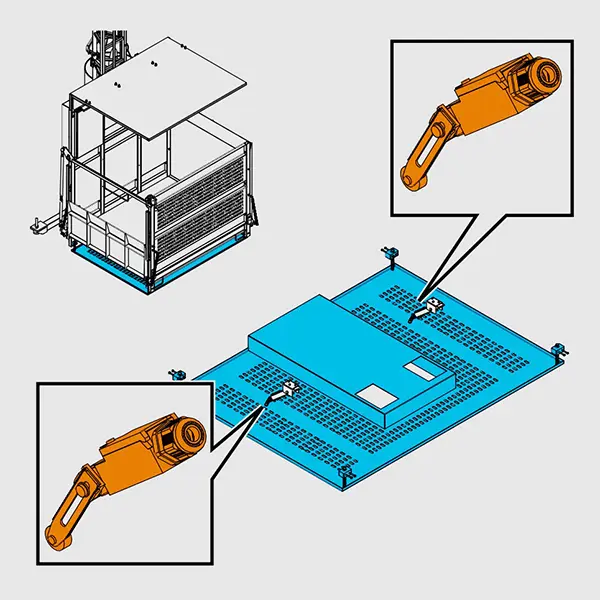

    Bottom sensing assembly

    Bottom sensing assembly

    The transport platform automatically halts its movement upon encountering any obstacles. Once the specific switch is activated, the platform is allowed to ascend but is restricted from descending for safety reasons.

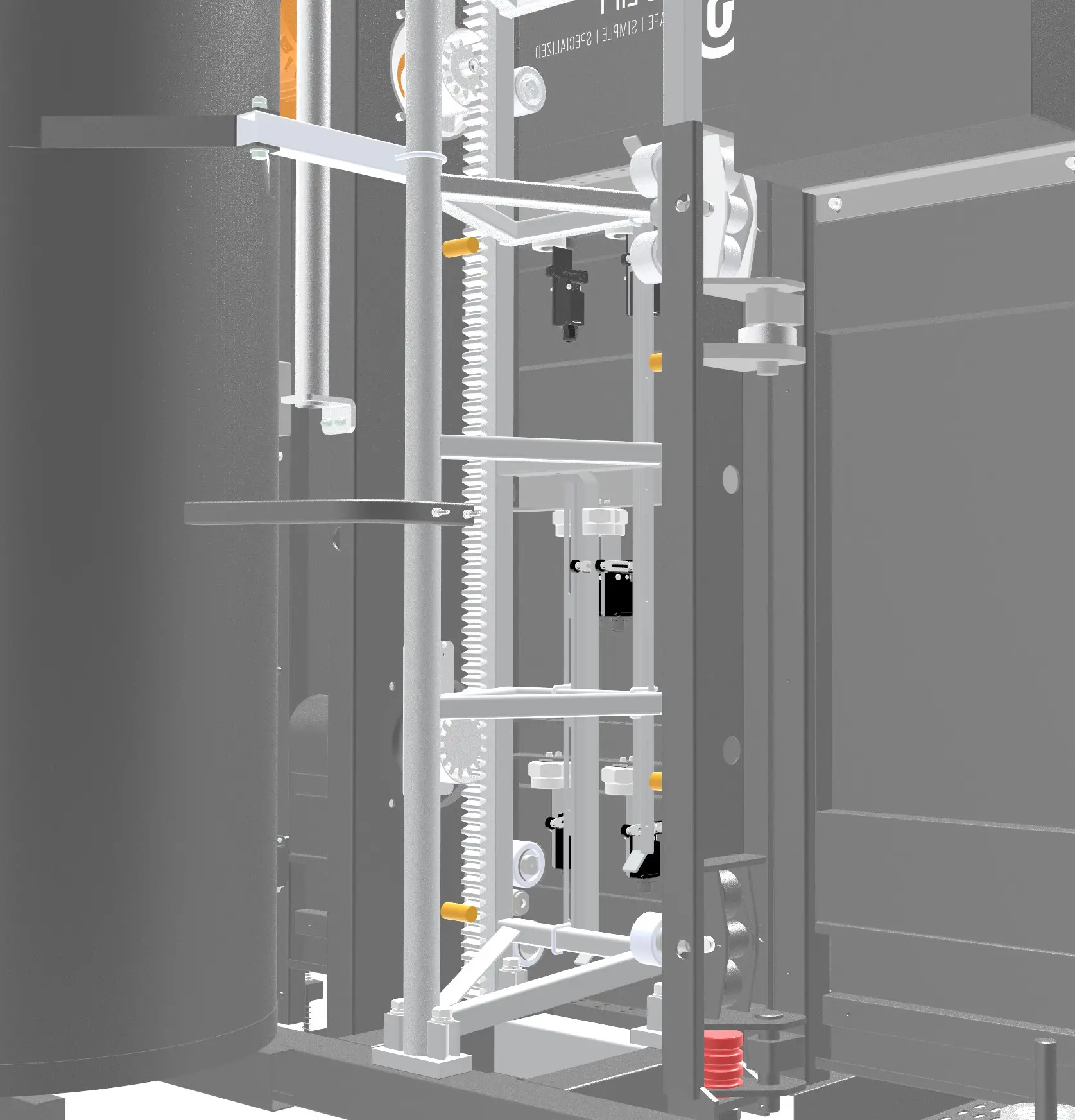

    Retaining rod

    Retaining rod

    To prevent the tilting and falling of the platform.

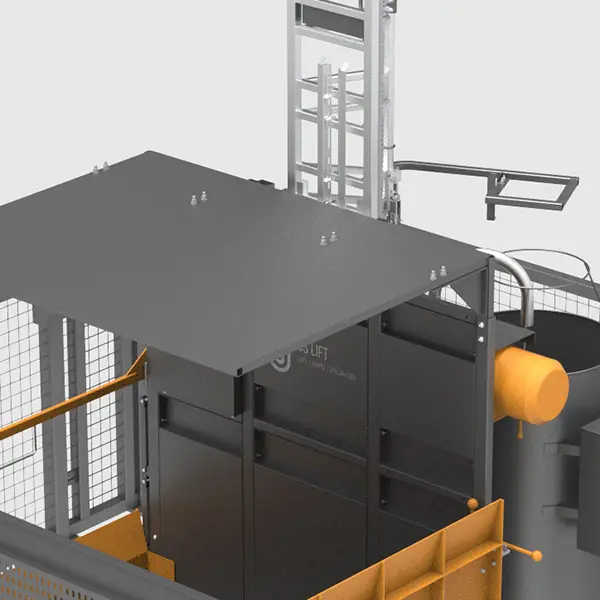

    Falling object protection guarding plate

    Falling object protection guarding plate

    To prevent injury from falling objects and to provide shade and protection from rain and snow.

    Key Features

    安全功能设置

    Multiple safety features ensure peace of mind.

    自动调平

    Automatic landing leveling function allows reaching the designated landing by one button.

    Icon图标-异常

    Faults display on LCD screen, facilitating maintenance.

    切换

    Mode switch between platform mode and hoist mode.

    耐磨性 (1)

    High strength, durable, and long service life.

    Specifications

    Model

    3S 2000H/HP

    Rated load

    2000 kg

    Maximum number of persons

    7

    Travel speed (hoist mode)

    24 m/min

    Travel speed (platform mode)

    12 m/min

    External platform dimensions

    4300 mm × 1700 mm

    Maximum height

    100 m

    Motor power

    2×7.5 kW

    Power supply

    400 V 3P + N + PE 50 Hz
