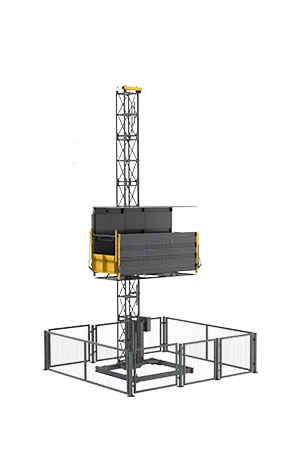

3S LIFT 1500H/HP Transport platform

Transport platforms are versatile and robustly designed to cater to a myriad of industrial applications, showcasing their capability to function seamlessly in dusty and high-temperature environments. Their sturdy construction ensures that they can withstand the rigorous demands of various industrial settings, making them an indispensable tool for material transportation. By utilizing these platforms, businesses can significantly reduce both time and costs associated with manual handling processes.
Whether you're working in a manufacturing facility, construction site, or any other industrial setting, transport platforms provide a reliable and efficient solution for moving materials and equipment with ease. Their ability to adapt to various environments and operational requirements makes them an essential tool for enhancing productivity and safety in any industrial application.

    Video

    product description

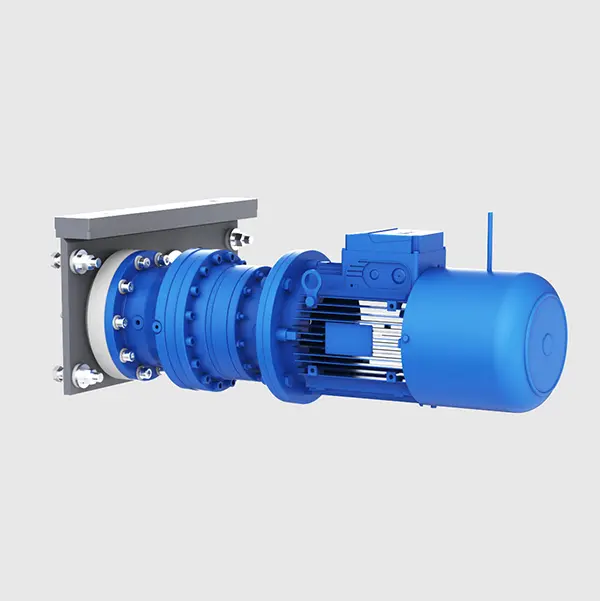

    Drive unit

    Drive unit

    Driven by the gear motor, the drive unit propels the work platform to move up and down along the mast. In the event of power loss, the manual descent mechanism allows the platform to lower down to safety.

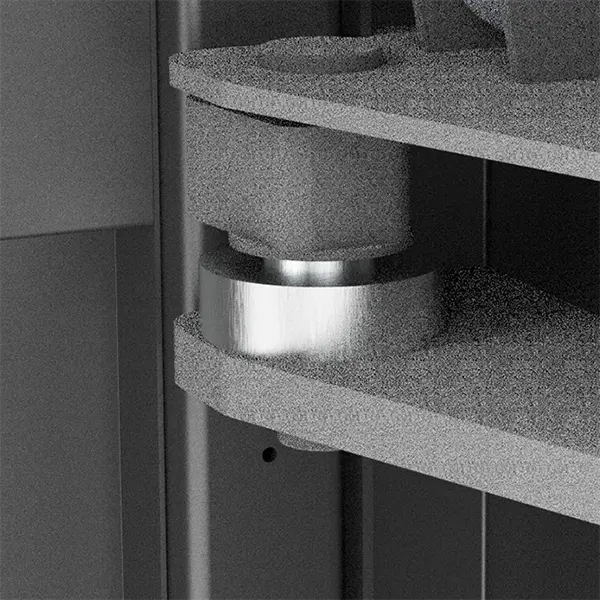

    Overload detection device

    Overload detection device

    When exceeding the rated load, the device activates an audible and visual alarm and prevents the platform from moving.

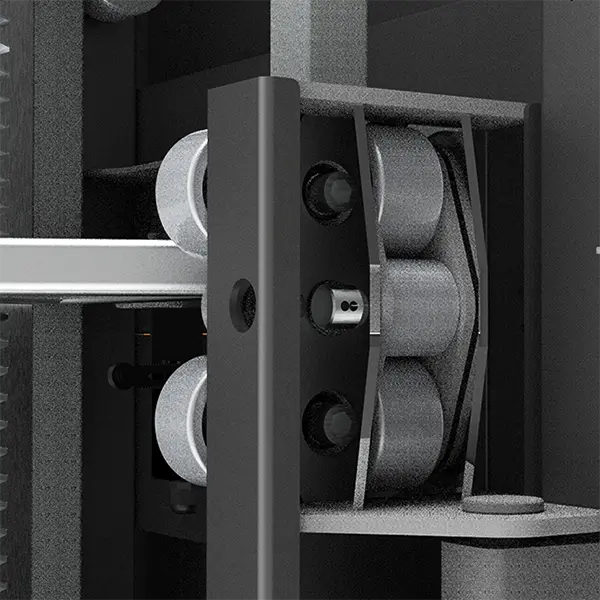

    Guiding system

    Guiding system

    The transport platform is connected to the mast by means of guide rollers, ensuring that the platform travels in the designed route.

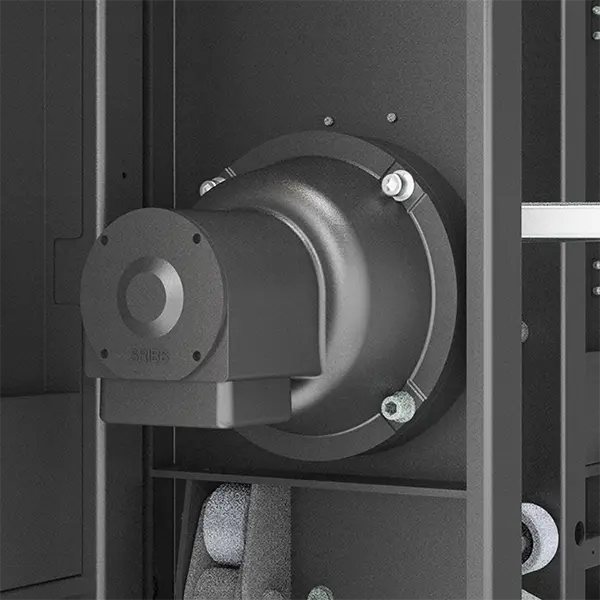

    Overspeed safety device

    Overspeed safety device

    The device operates automatically when the platform travel speed exceeds the set limit, stopping the platform immediately and disconnecting the power.

    3S LIFT 1500H/HP Transport platform

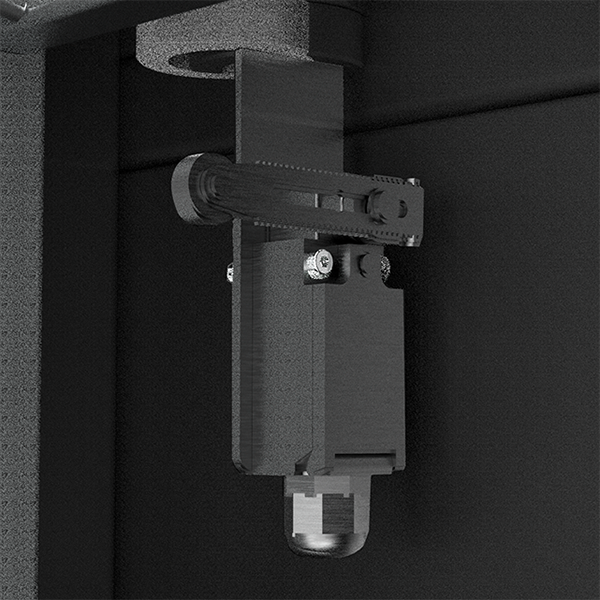

    Travel limit switch

    Travel limit switch

    By actuating the travel limit switch, the transport platform stops smoothly at the bottom or top of the mast.

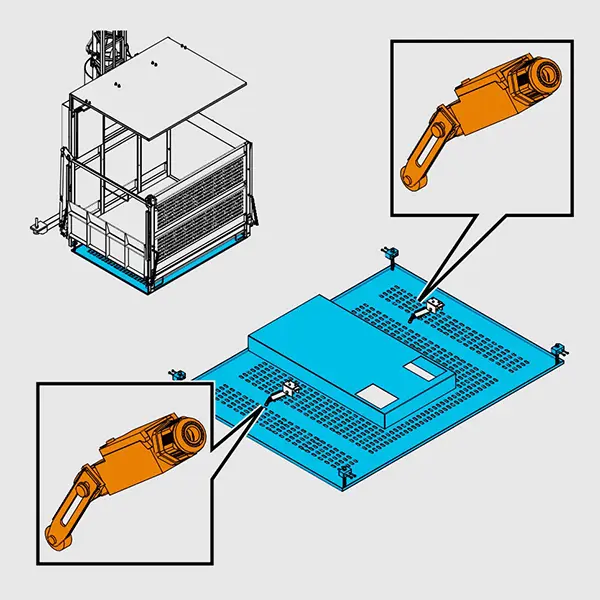

    Bottom sensing assembly

    Bottom sensing assembly

    The transport platform stops automatically when it is obstructed by obstacles. When the switch is actuated, the platform can travel up but not down.

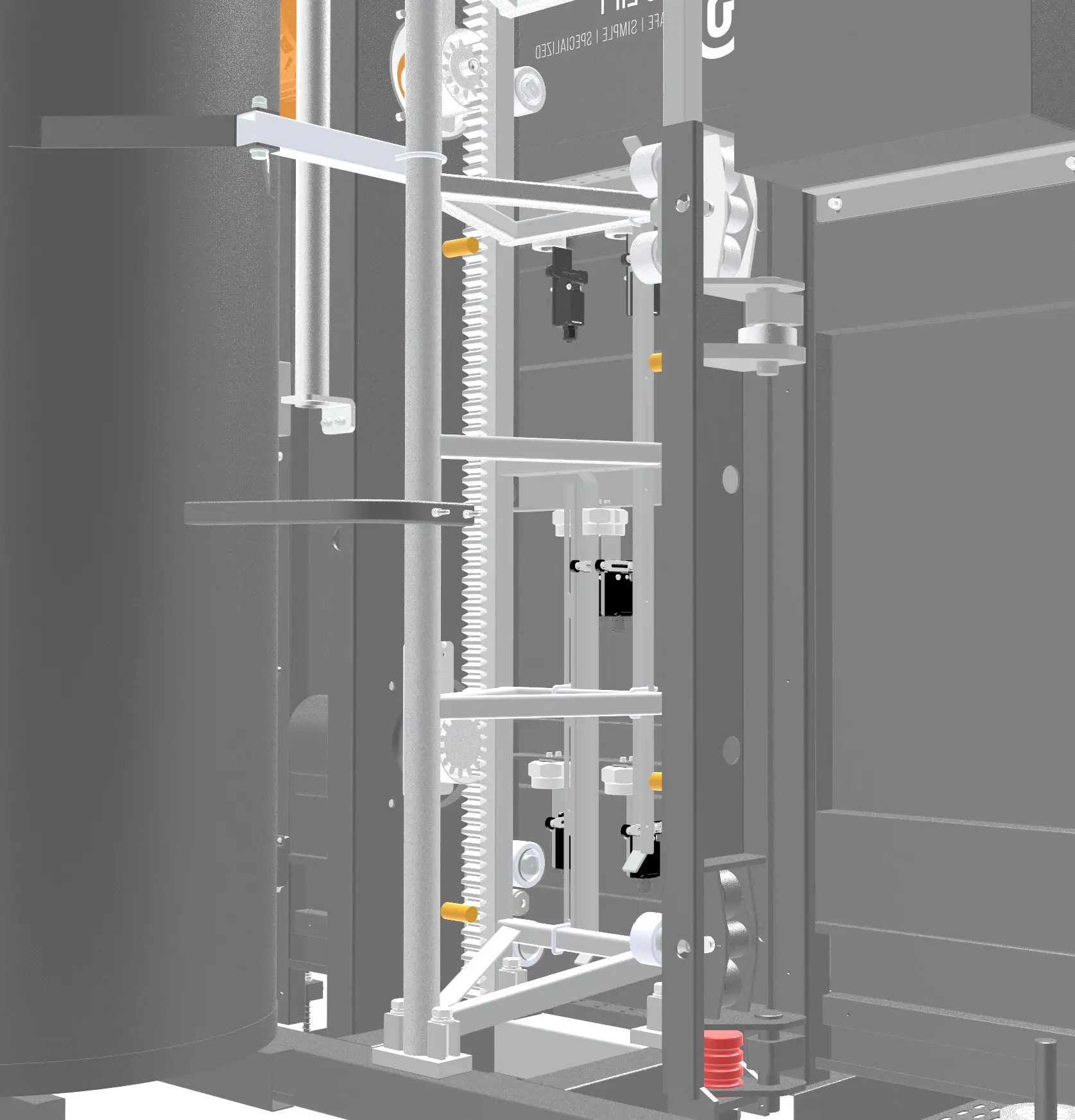

    Retaining rod

    Retaining rod

    To prevent the tilting and falling of the platform.

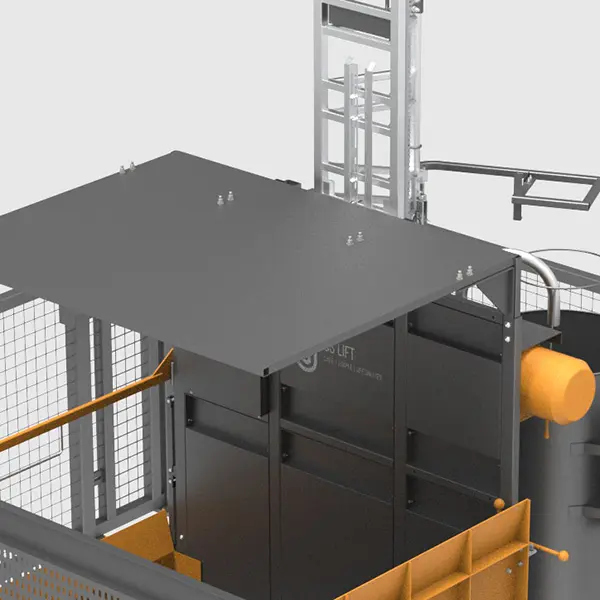

    Falling object protection guarding plate

    Falling object protection guarding plate

    To prevent injury from falling objects and to provide shade and protection from rain and snow.

    Key Features

    安全功能设置

    Multiple safety features ensure peace of mind.

    自动调平

    Automatic landing leveling function allows reaching the designated landing by one button.

    Icon图标-异常

    Faults display on LCD screen, facilitating maintenance.

    切换

    Mode switch between platform mode and hoist mode.

    Wear - Resistant Material

    High strength, durable, and long service life.

    Specifications

    Model

    3S 1500H/HP

    Rated load

    1500 kg

    Maximum number of persons

    7

    Travel speed (hoist mode)

    24 m/min

    Travel speed (platform mode)

    12 m/min

    External platform dimensions

    3200 mm × 1 400 mm

    Maximum height

    100 m

    Motor power

    7.5 kW

    Power supply

    400 V 3P + N + PE 50 Hz
